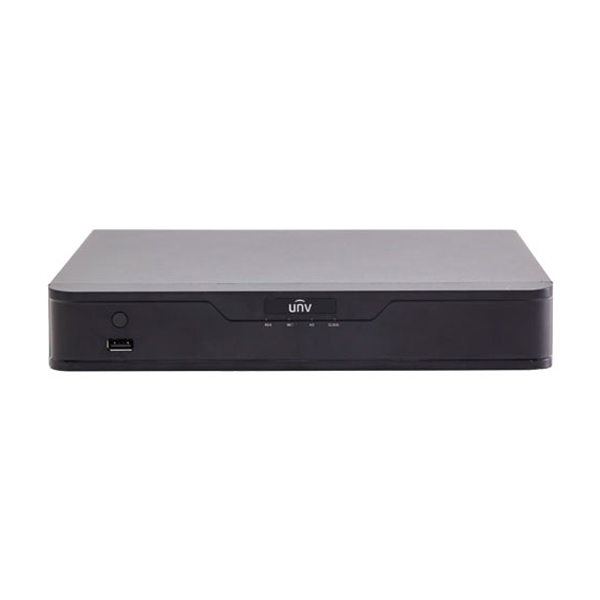

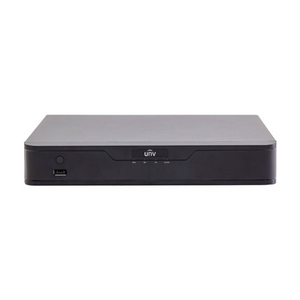

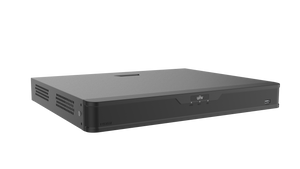

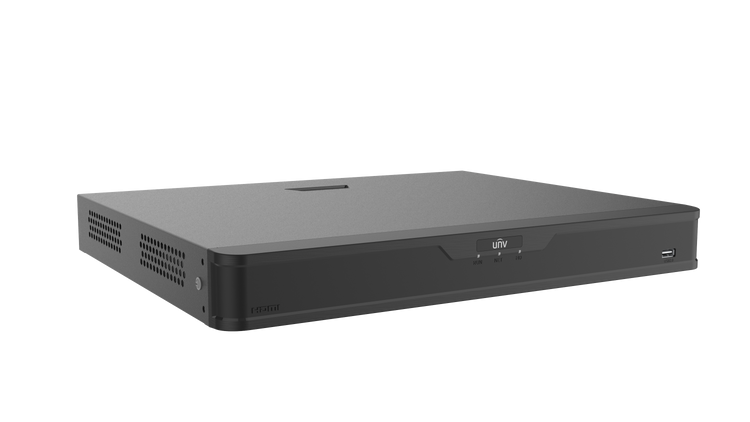

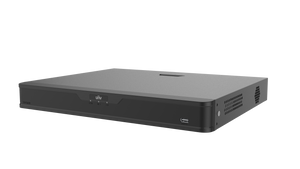

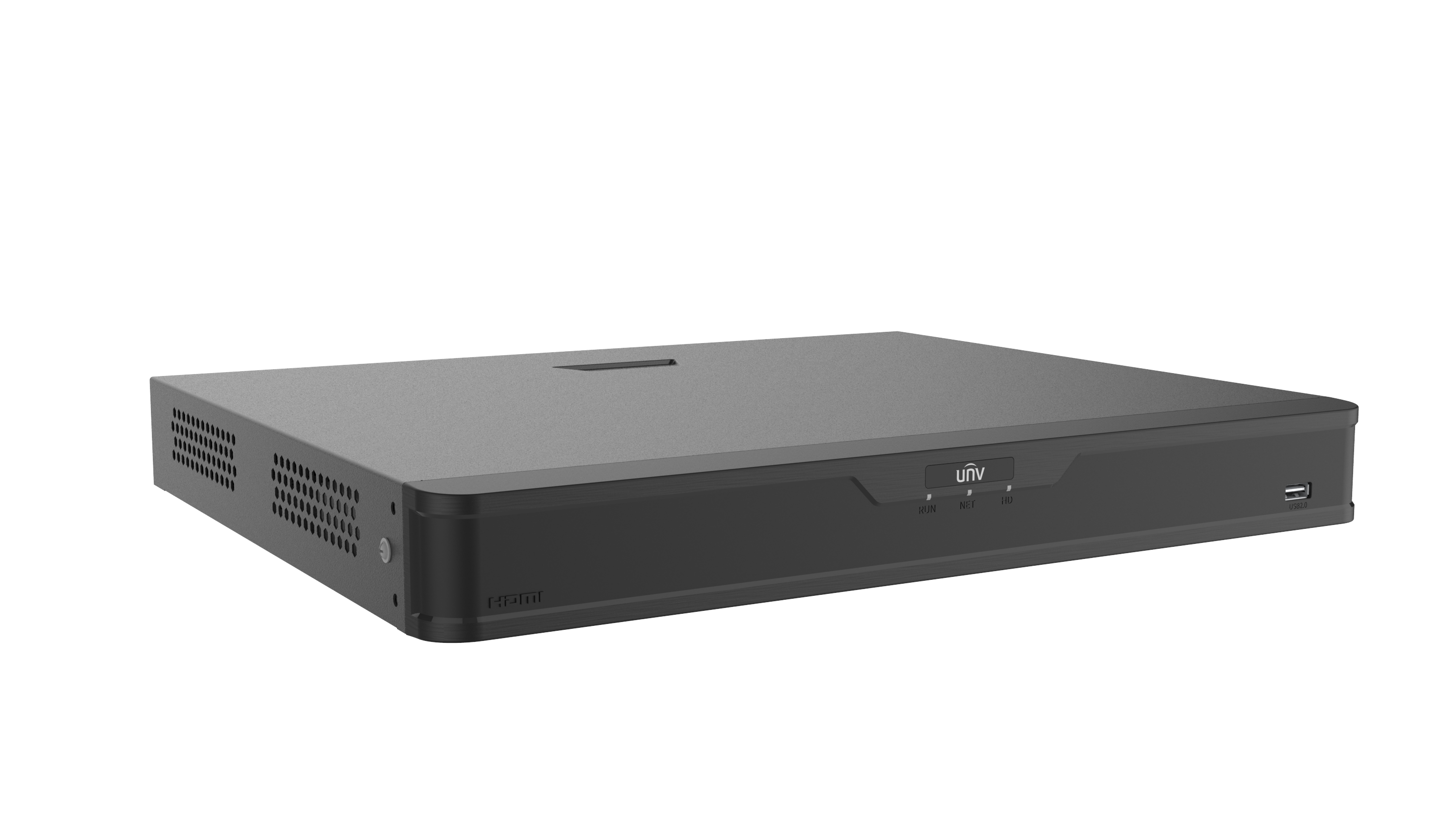

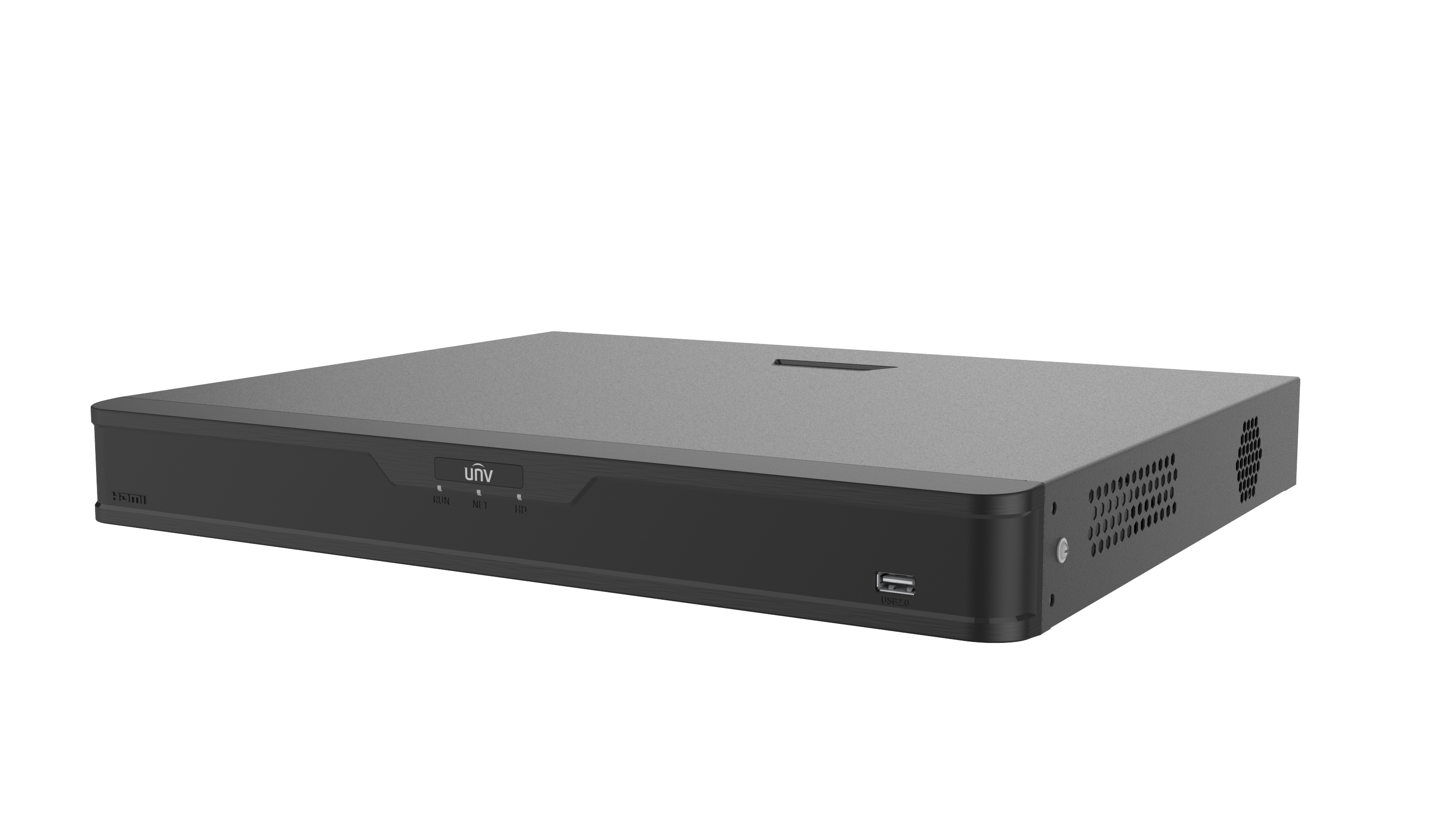

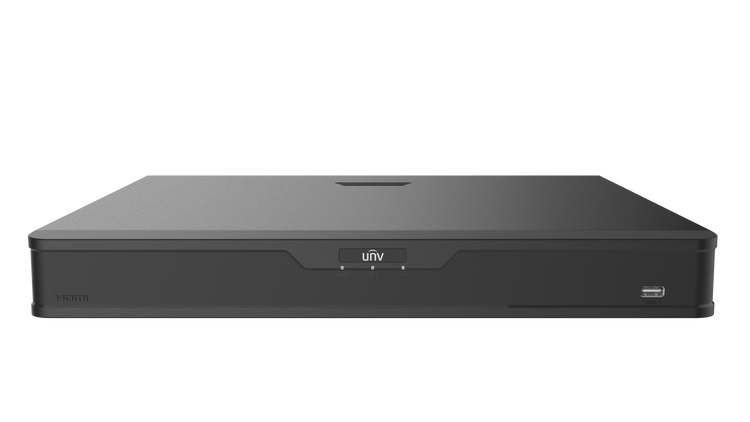

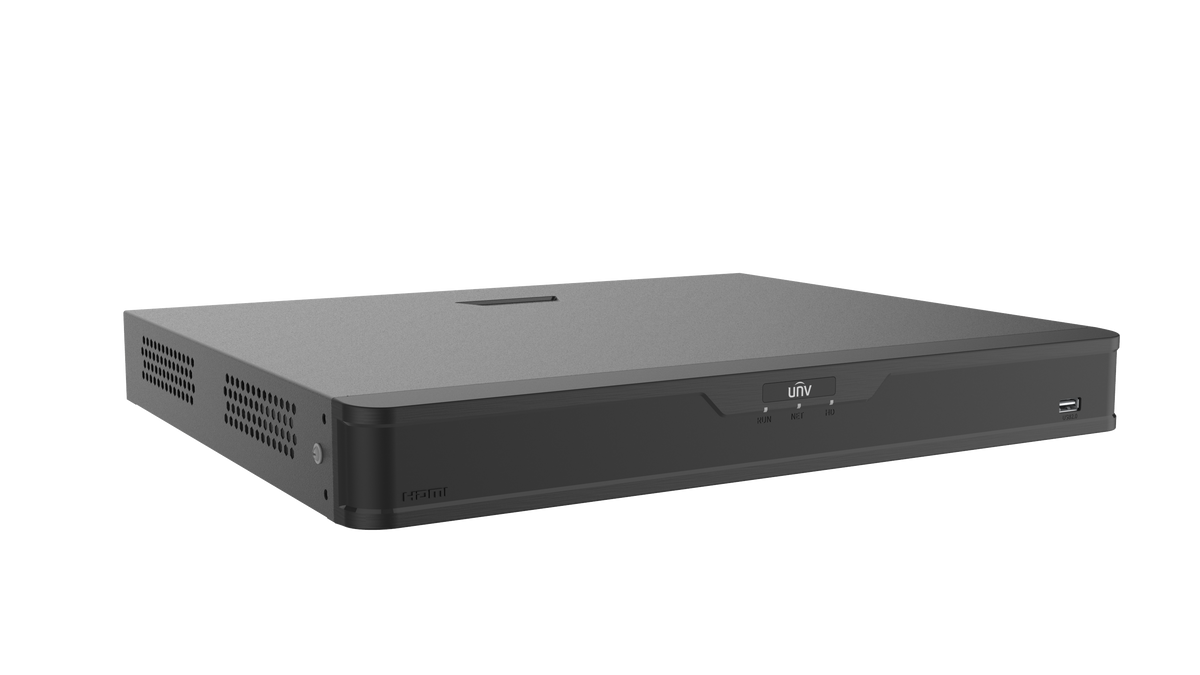

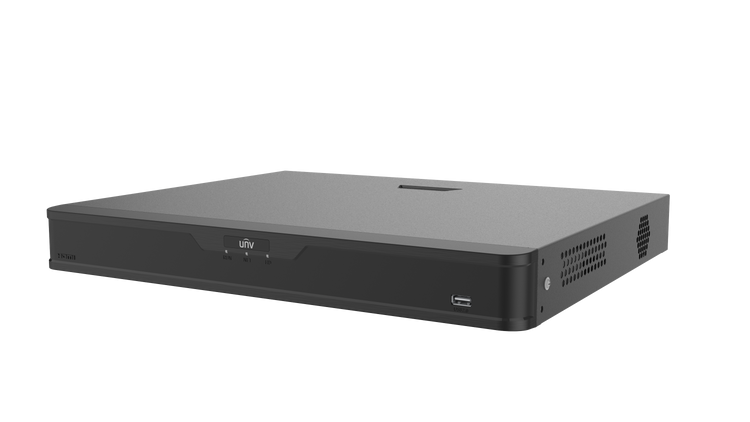

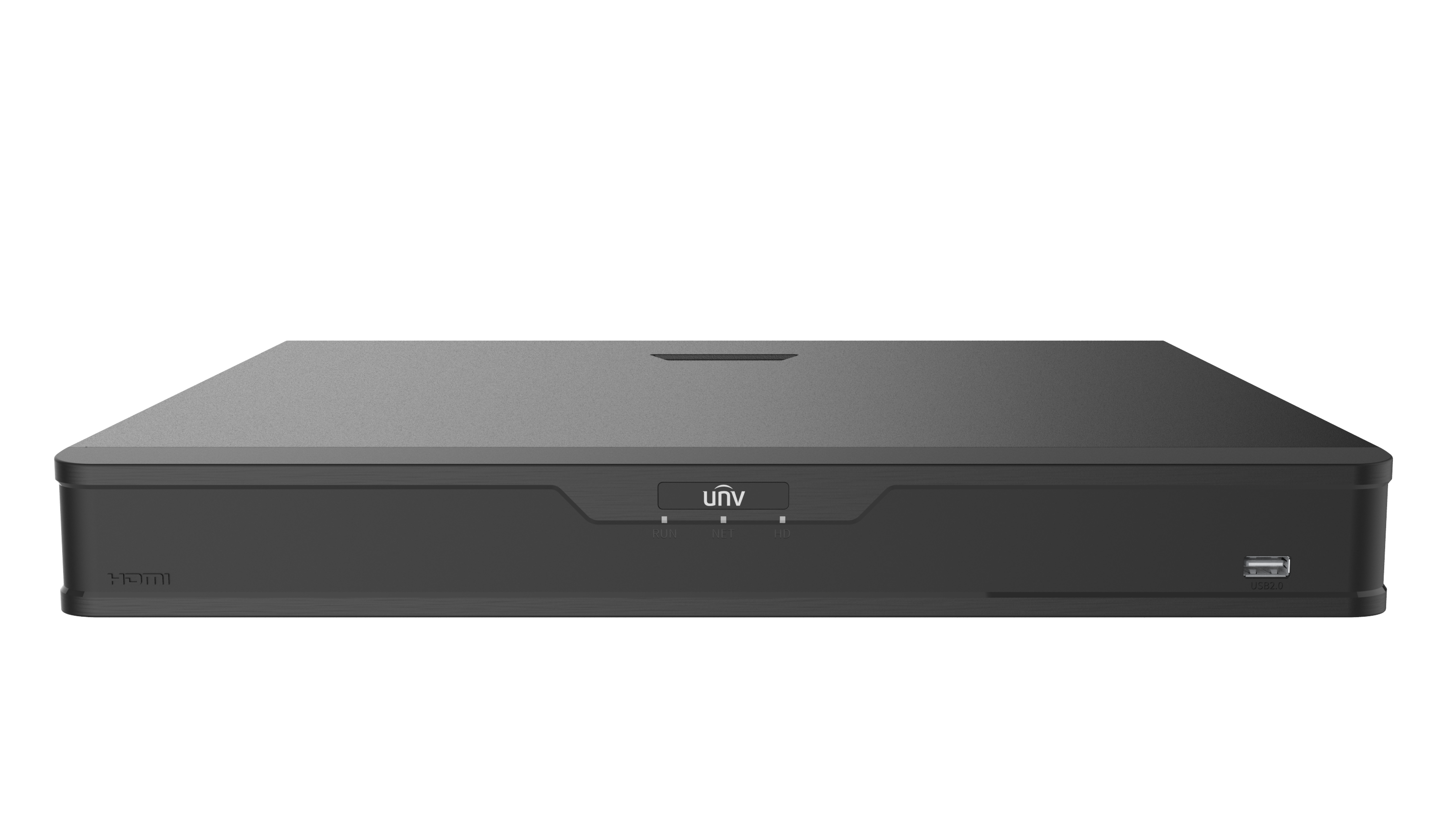

UNV 4K 16-Channel Hybrid XVR With 16 BNC, 8 IP, with 2 SATA HDD Bays, NDAA Compliant (XVR302-16Q3)
Translation missing: en.products.product.sku: SKU# 3663
Order within to ship- Regular price
- $519.00
- Sale price
- $519.00
- Regular price
-
Couldn't load pickup availability
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
You may want these accessories for this product
19" Metal Server Rack Shelf
$40.00
Related Articles
XVR302-16Q3
8ch IP Recorder
4K Ultra HD
Up to 4K Ultra HD Resolution
2 SATA HDD
Up to 8TB each
3 Year Warranty
Warranty Information
Characteristics
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Characteristics
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Video recorders are the heart of your cctv system. With the XVR302-16Q3 you can be sure that your security cameras are in good hands. This HD-TVI video recorder is perfect for
medium-large installations with up to 16 security cameras.
In addition to being a 16 channel DVR, the XVR302-16Q3 is also considered a Tribrid DVR, which means you also have the ability to add up to 8 IP security cameras; effectively making this 24 channel DVR.
The XVR302-16Q3 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
In addition to being a 16 channel DVR, the XVR302-16Q3 is also considered a Tribrid DVR, which means you also have the ability to add up to 8 IP security cameras; effectively making this 24 channel DVR.
The XVR302-16Q3 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Recording Schedules
If you want 24/7 video recording, the XVR302-16Q3 DVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 2 Hard Drive/s, Up to 8TB each.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.
| SPECIFICATION | Download PDF | |
|---|---|---|
| IP Channels | 8ch | |
| Analog Channels | 16ch | |
| Max Resolution | 4K Ultra HD | |
| Max Incoming Bandwidth | 80Mbps | |
| Max Outgoing Bandwidth | 160Mbps | |
| Video Compression | H.265|H.264 | |
| Hard Drive Slots | 2 | |
| Hard Drive Capacity | Up to 8TB each | |
| Synchronus Playback | 16ch | |
| Audio I/O | 4ch / 1ch | |
| Alarm I/O | 4ch / 1ch | |
| Power Supply | DC12V | |
| Power Consumption | ≤ 12 W ( without HDD ) | |
| Operating Temperature | +14°F~+131°F | |
| Dimensions | 15.0" × 12.8"×2.1" (380mm ×326mm× 53mm) | |
| Weight | 4.4lb (≤2.0Kg ) |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1130.3.12.0  |
DownloadDownload |
| EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Versionv1122.2.6.0 |
DownloadDownload |
| EZ Player | Media player for local recordings. | Versionv1111.1.3.0 |
DownloadDownload |
| Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. | Version |
DownloadDownload |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1113.3.10.1  |
DownloadDownload |
| MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. | Version |
DownloadDownload |
