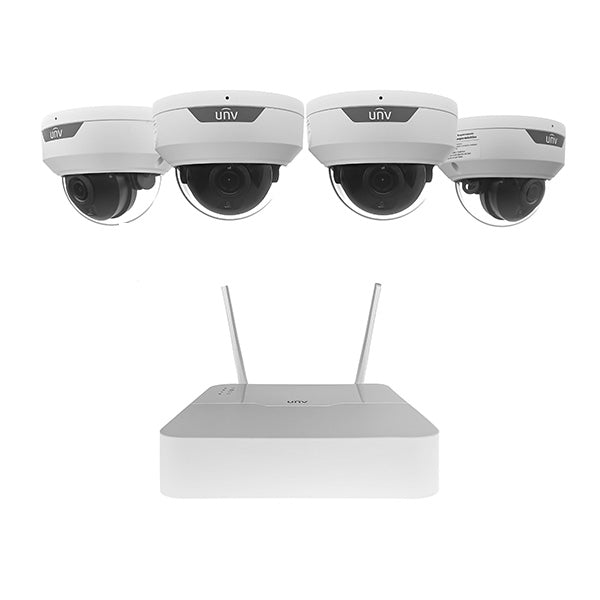

UNV 4-Channel WiFi Kit including 4-Channel NVR with Embedded Wi-Fi Module & 4 2MP Vandle Domes (KIT/NVR301-04LS3-W/4*322LB-ABF28WK-G)

Translation missing: en.products.product.sku: SKU# 3502

Order within to ship
Regular price
$679.00
Sale price
$679.00
Regular price
Login for better price

Wi-Fi Kit Information

  • In an open wide environment: the max distance for the Wi-Fi dome is 850 ft (260m).
  • Through the wall (1ft thick reinforced concrete wall): the max distance for the Wi-Fi dome is 65ft (20m).
  • NOTE: The ability to pass through the wall is closely related to the wall, and the wall may be different, so the data is for your reference only.

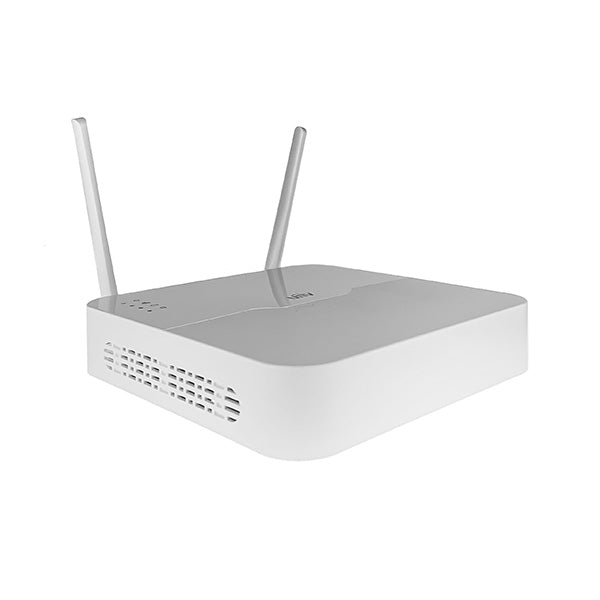

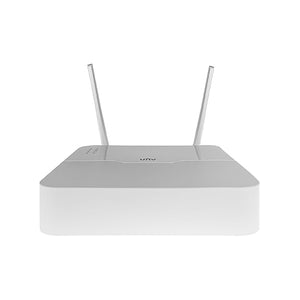

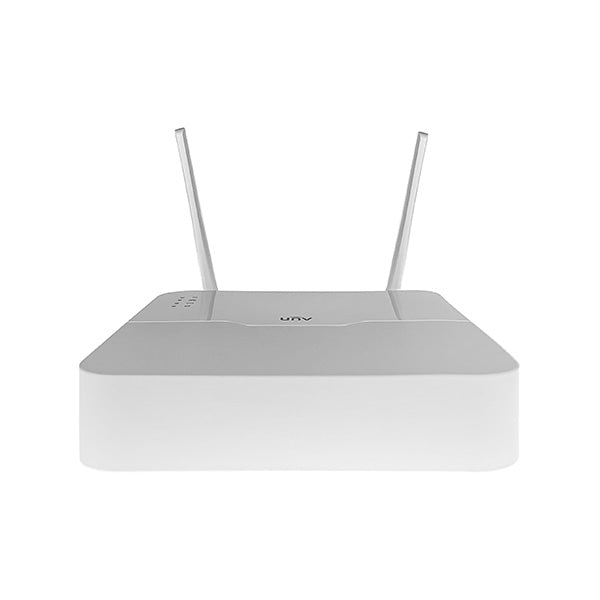

NVR301-04LS3-W

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

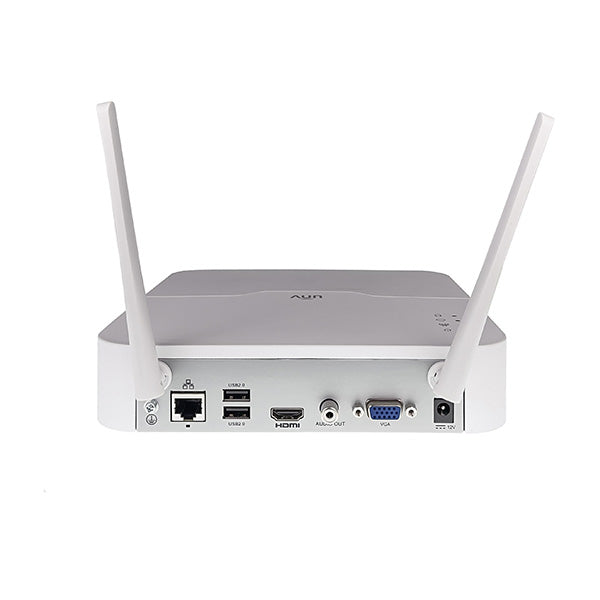

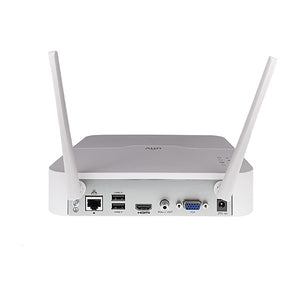

  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080P resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade

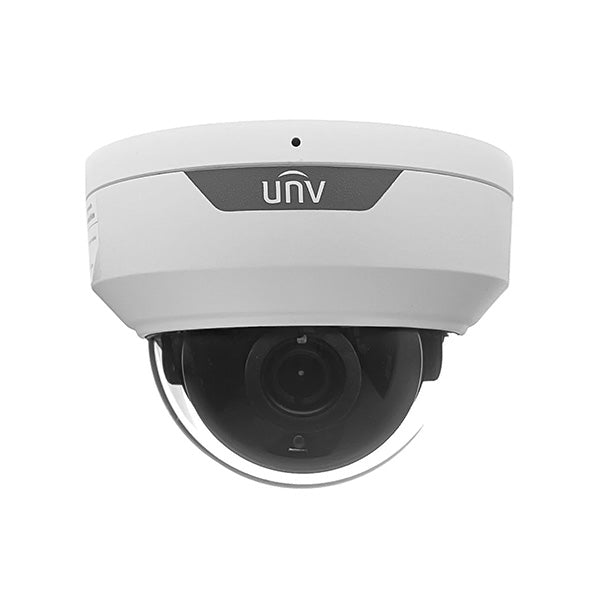

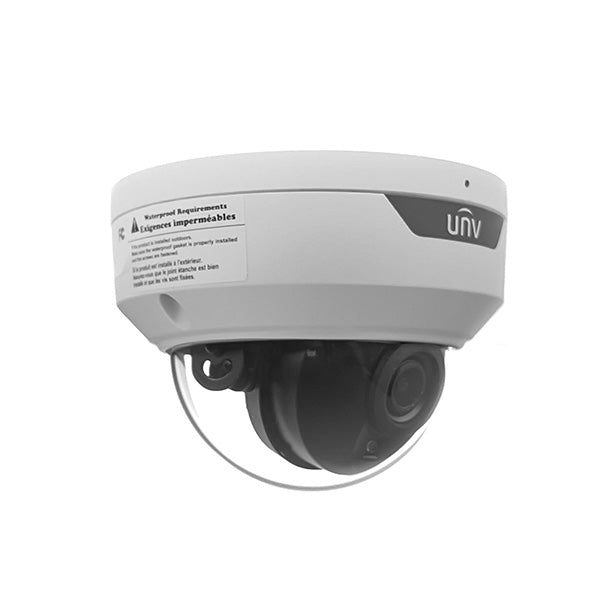

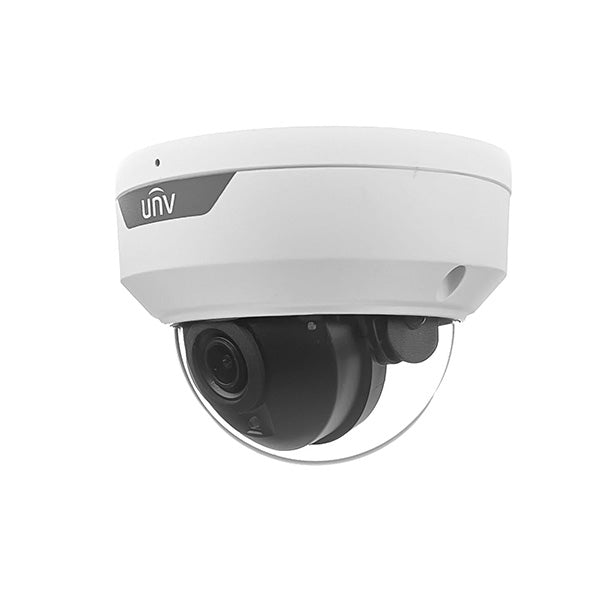

IPC322LB-ABF28WK-G

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920 x 1080)@30/25fps; 720P (1280 x 720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • 3-Axis

You may want these accessories for this product

UNV Junction Box for Fixed Lens Do...

$17.00

UNV Wall Mount W/ Junction Box for...

$40.00

UNV Wall Mount for Dome Security C...

$25.00

UNV Pole Mount Adapter (TR-UP06-IN)

$17.00

UNV Fixed Dome Indoor Pendant Moun...

$15.00

KITNVR301-04LS3-W4x322LB-ABF28WK-G

Up to 100ft

Night Vision IR Range

Characteristics
4-Channel Wi-Fi Kit
Complete System
2MP
HD Resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range

This complete, all-in-one Wi-Fi security camera system comes with one Wi-Fi embedded NVR and four Wi-Fi cameras. Connect your NVR to the network with an Ethernet cable, power up your cameras with a 12V DC power supply, and you're good to go! Your NVR will automatically search for the Wi-Fi cameras and pull them onto its network. NVR and camera power supplies included.

Wi-Fi Kit Information

  • In an open wide environment: the max distance for the Wi-Fi dome is 850 ft (260m).
  • Through the wall (1ft thick reinforced concrete wall): the max distance for the Wi-Fi dome is 65ft (20m).
  • NOTE: The ability to pass through the wall is closely related to the wall, and the wall may be different, so the data is for your reference only.

NVR301-04LS3-W

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080P resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade

IPC322LB-ABF28WK-G

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920 x 1080)@30/25fps; 720P (1280 x 720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • 3-Axis

2MP HD Resolution

The IPC322LB-AF28WK-G captures video up to a resolution of 2MP @ 30 FPS, which is 1920x1080 pixels. Every pixel added to your camera's picture gives you a higher image quality and more detail. So at 2MP, you're going to get a crisper, cleaner, and more detailed image.

2.8mm Fixed Lens

The IPC322LB-AF28WK-G has a 2.8mm Fixed Lens. That means it’s fixed at one length; it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC322LB-AF28WK-G has a horizontal field of view of 101.1°.

Wifi Security Camera

Ditch the long, obtrusive wires running across your floorboards and walls. The IPC322LB-AF28WK-G allows you to connect wirelessly to your network using Wifi to capture and record video. Wifi security cameras are often easier to install, and they give you greater flexibility for placement and mobility. Connects effortlessly to the included Wi-Fi NVR.

Built-in Microphone

Having audio capabilities in your video surveillance system can be an important feature. The IPC322LB-AF28WK-G comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof Rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install this camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC322LB-AF28WK-G has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 100ft Night Vision IR Range

When the sun goes down or the lights go out, this camera switches on its own onboard infrared LED lights. These lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote Access

The IPC322LB-AF28WK-G is a part of our Uniview line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.

Characteristics
4-Channel Wi-Fi Kit
Complete System
2MP
HD Resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range

This complete, all-in-one Wi-Fi security camera system comes with one Wi-Fi embedded NVR and four Wi-Fi cameras. Connect your NVR to the network with an Ethernet cable, power up your cameras with a 12V DC power supply, and you're good to go! Your NVR will automatically search for the Wi-Fi cameras and pull them onto its network. NVR and camera power supplies included.

Wi-Fi Kit Information

  • In an open wide environment: the max distance for the Wi-Fi dome is 850 ft (260m).
  • Through the wall (1ft thick reinforced concrete wall): the max distance for the Wi-Fi dome is 65ft (20m).
  • NOTE: The ability to pass through the wall is closely related to the wall, and the wall may be different, so the data is for your reference only.

NVR301-04LS3-W

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080P resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade

IPC322LB-ABF28WK-G

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920 x 1080)@30/25fps; 720P (1280 x 720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • 3-Axis

2MP HD Resolution

The IPC322LB-AF28WK-G captures video up to a resolution of 2MP @ 30 FPS, which is 1920x1080 pixels. Every pixel added to your camera's picture gives you a higher image quality and more detail. So at 2MP, you're going to get a crisper, cleaner, and more detailed image.

2.8mm Fixed Lens

The IPC322LB-AF28WK-G has a 2.8mm Fixed Lens. That means it’s fixed at one length; it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC322LB-AF28WK-G has a horizontal field of view of 101.1°.

Wifi Security Camera

Ditch the long, obtrusive wires running across your floorboards and walls. The IPC322LB-AF28WK-G allows you to connect wirelessly to your network using Wifi to capture and record video. Wifi security cameras are often easier to install, and they give you greater flexibility for placement and mobility. Connects effortlessly to the included Wi-Fi NVR.

Built-in Microphone

Having audio capabilities in your video surveillance system can be an important feature. The IPC322LB-AF28WK-G comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof Rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install this camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC322LB-AF28WK-G has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 100ft Night Vision IR Range

When the sun goes down or the lights go out, this camera switches on its own onboard infrared LED lights. These lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote Access

The IPC322LB-AF28WK-G is a part of our Uniview line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Onvif Compatible Yes
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
