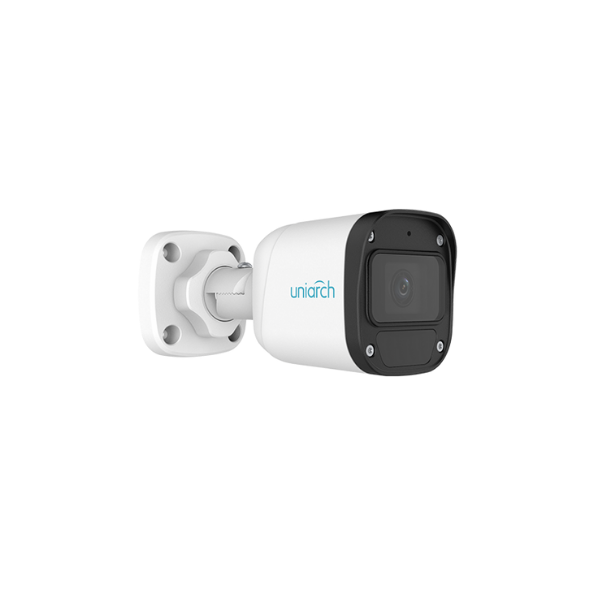

Uniarch by Uniview 1080p Smart IR NDAA-Compliant Weatherproof Bullet Camera with a 2.8mm Lens (IPC-B122-APF28)
Translation missing: en.products.product.sku: SKU# 3507
Order within to ship- Regular price
- $122.00
- Sale price
- $122.00
- Regular price
-
Couldn't load pickup availability
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
You may want these accessories for this product

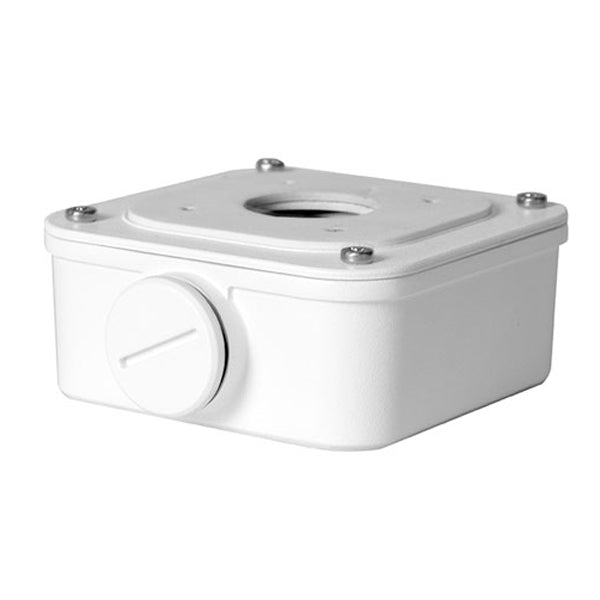

UNV Junction Box for Fixed Lens B...
$17.00

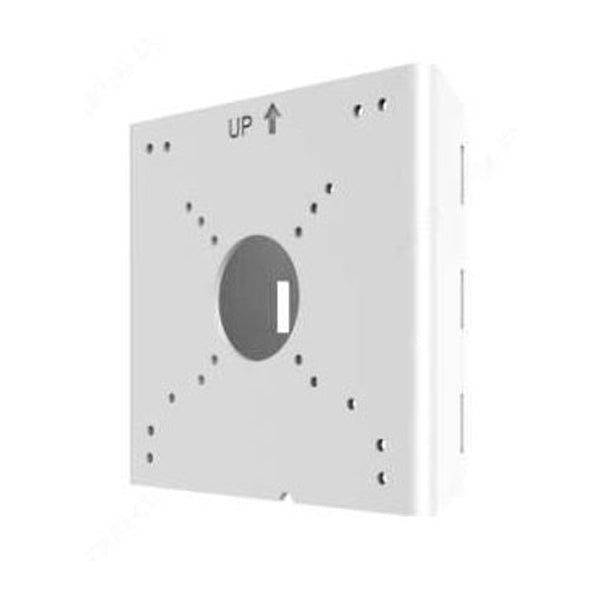

UNV Pole Mount Adapter for Fixed L...
$18.00

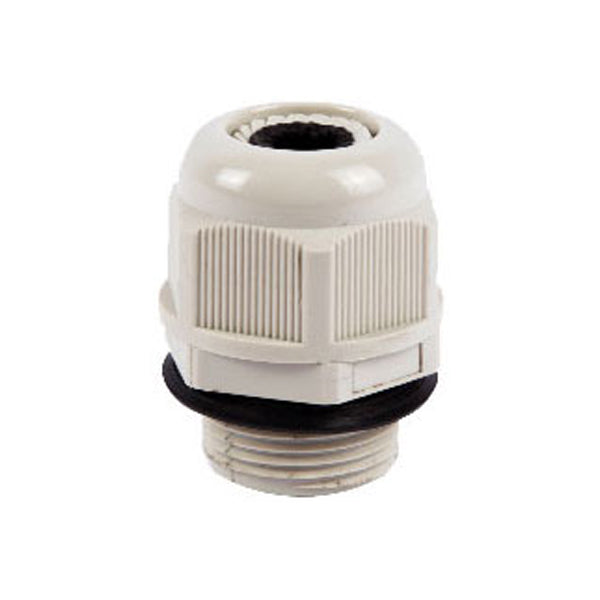

UNV Waterproof Cable Joint (TR-A01...
$6.00
Related Articles
IPC-B122-APF28
IP Security Camera
2MP
HD resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range
1 Year Warranty
Warranty Information
Characteristics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Characteristics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
2MP HD RESOLUTION
The IPC-B122-APF28 captures video up to a resolution of 2MP @ 25 FPS, which is 1920 x 1080 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 2MP, your going to get a crisper, cleaner, and more detailed image.
2.8mm Fixed Lens
The IPC-B122-APF28 has a 2.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.
The IPC-B122-APF28 has a horizontal field of view of 106.7°.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The IPC-B122-APF28 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.
Up to 100ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniarch
The IPC-B122-APF28 is a part of our VIVOTEK brandable line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.
Plug & play
If you're creating a new system out of our VIVOTEK brandable cameras, set up is insanely easy with our VIVOTEK line of POE NVRs. Simply plug the camera into the back of the VIVOTEK NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as Vast 2 and VIVOcloud.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 2MP | |
| Max Resolution | 1920 x 1080 | |
| Frames Per Second | 25 FPS | |
| Image Sensor | 1/2.8", progressive scan, CMOS | |
| Lens Type | Fixed Lens | |
| Focal Length | 2.8mm | |
| Field of View | 106.7° | |
| Illumination | Infrared | |
| IR Range | Up to 100ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Weatherproof Rating | IP67 | |
| Audio | Built-in Microphone | |
| Onvif Compatible | No | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 3.5W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Weight | 0.17kg (0.37lb) | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Onvif Compatible | Yes | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 3.5W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Weight | 0.17kg (0.37lb) |
