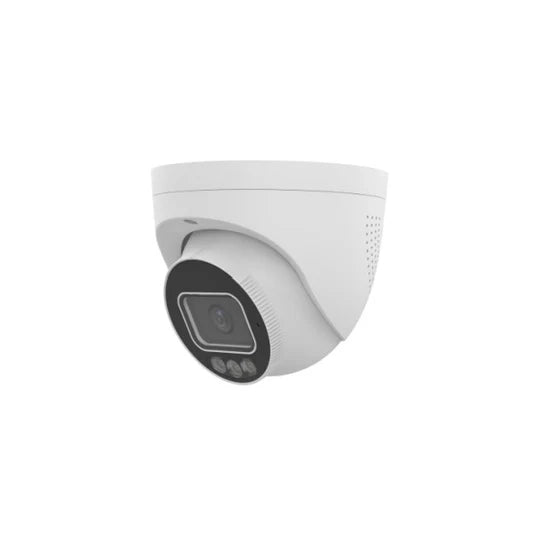

Tri-Guard 2.0 5MP Red/Blue Active Deterrence Lights, White Light, and IR LED Turret IP Security Camera with a 2.8mm Lens and Two-Way Audio (U1-5MP-TG2T1)
Translation missing: en.products.product.sku: SKU# 3776NB
Order within to ship- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
$569.00
Couldn't load pickup availability
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR)
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 30m (98.4 ft) IR distance
- Supports 256 G Micro SD card
- P67 protection
Choose a version
Choose between the Retail and Blank version of this product.
- UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
- UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.
UNV Retail
U1-5MP-TG2T1
IP Security Camera
5MP
HD resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range
3 Year Warranty
Warranty Information
Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR)
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 30m (98.4 ft) IR distance
- Supports 256 G Micro SD card
- P67 protection
Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR)
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 30m (98.4 ft) IR distance
- Supports 256 G Micro SD card
- P67 protection
5MP HD RESOLUTION
The U1-5MP-TG2T1 captures video up to a resolution of 5MP @ 30 FPS, which is 2880 x 1620 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
2.8mm Fixed Lens
The U1-5MP-TG2T1 has a
2.8mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The U1-5MP-TG2T1 has a horizontal field of view of
109°.
24/7 Color Illumination
Say goodbye to low-contrast black-and-white surveillance footage. The U1-5MP-TG2T1 supports onboard floodlights that allow the camera to capture beautiful and crisp color images 24/7. Not only does this look great, but it also provides clearer and more reliable footage than your standard IR camera.
Active Deterrence
The U1-5MP-TG2T1 supports active deterrence features using onboard floodlights and speakers to draw attention to itself with visual and audible warnings. With this feature, you can quickly let any potential trespassers know that they're being recorded anytime an intelligent event is tripped. This is a great way to add an extra layer of security to your surveillance system.
Artificial Intelligence
With artificial intelligence, the U1-5MP-TG2T1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
2-Way Audio
The U1-5MP-TG2T1 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
Up to 100ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview NB
The U1-5MP-TG2T1 is part of the Uniview NB line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.
Plug & play
If you're creating a new system out of our Uniview NB cameras, set up is insanely easy with our Uniview NB line of POE NVRs. Simply plug the camera into the back of the Uniview NB NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | ||
|---|---|---|
| Camera Type | IP | |
| Form Factor | Turret | |
| Resolution | 5MP | |
| Max Resolution | 2880 x 1620 | |
| Frames Per Second | 30 FPS | |
| Image Sensor | 5MP, 1/2.7" CMOS sensor | |
| Lens Type | Fixed Lens | |
| Focal Length | 2.8mm | |
| Field of View | 109° | |
| Illumination | Infrared or Color Mode | |
| IR Range | Up to 100ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 16Mbps | |
| Weatherproof Rating | IP67 | |
| Audio | 2-Way Audio | |
| Onvif Compatible | Yes | |
| Active Deterrence | Lights & Sounds | |
| Artificial Intelligence | Yes | |
| Onboard Storage | Up to 256GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | 10W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) | |
| Weight | 0.69kg (1.53lb) |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Version v1130.3.12.1  |
DownloadDownload |
| Name Guard Tools | Tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Version v1103 |
DownloadDownload |
| Name Guard Player | Media player for local recordings. | Version v1111.1.1.0 |
DownloadDownload |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Versionv1113.3.10.1  < |
DownloadDownload |
