Uniview by Uniview

HD 3MP + 2MP Dual Lens Weatherproof Video Doorbell Wi-Fi Security Camera w/ 2-Way Audio, Human Body & Package Detection (ED-525B-WB)

Available for Pre-Order. Estimated arrival in late March to early April.

|

SKU# 3904

$379.00
$379.00
$469.00
Shipping calculated at checkout.

You may want these accessories for this product

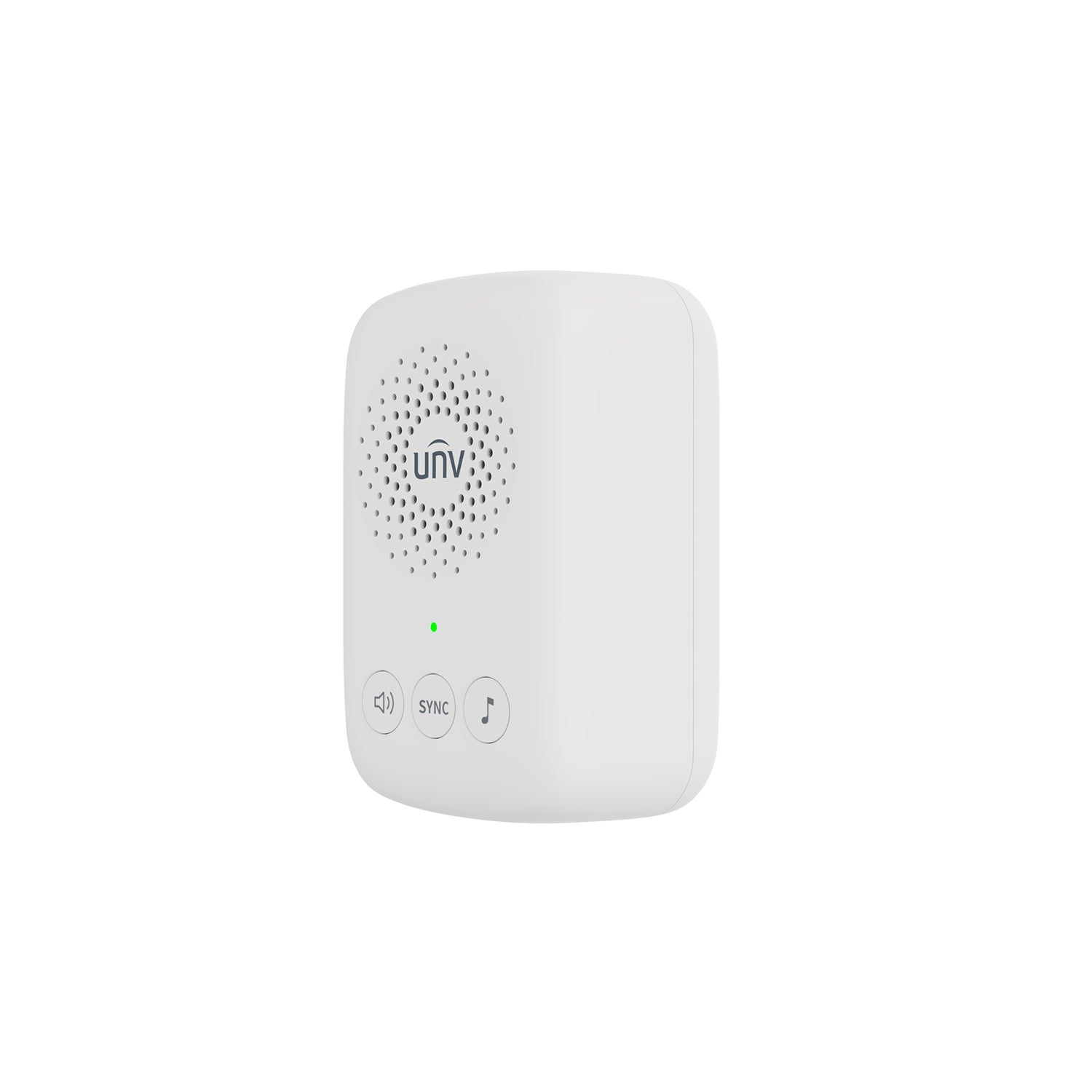

Wireless Chime for Uniview Dual Le...
$59.00

ED-525B-WB

Wi-Fi Security Camera

3MP

HD resolution

IP65

Weatherproof Rating

Up to 16ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics

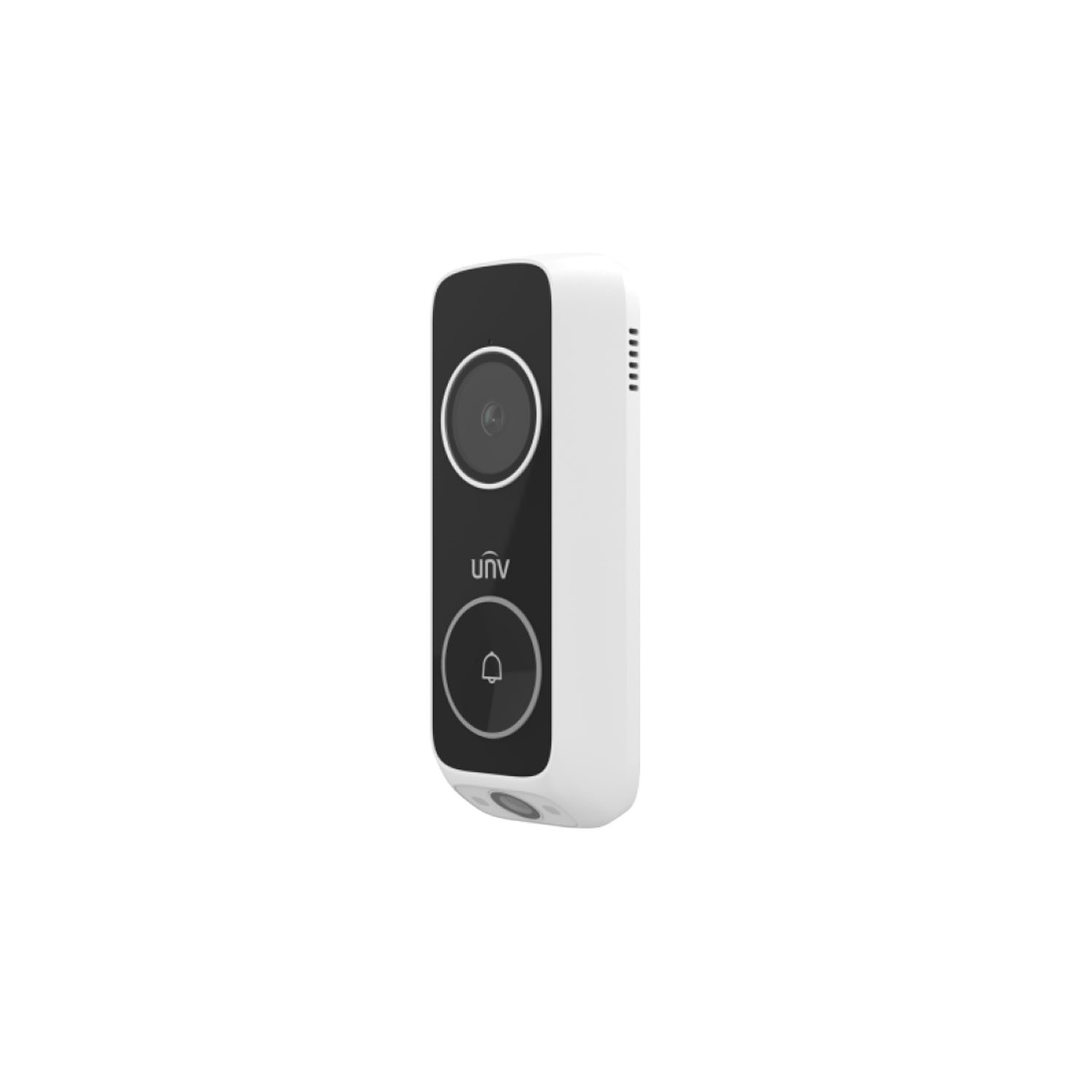

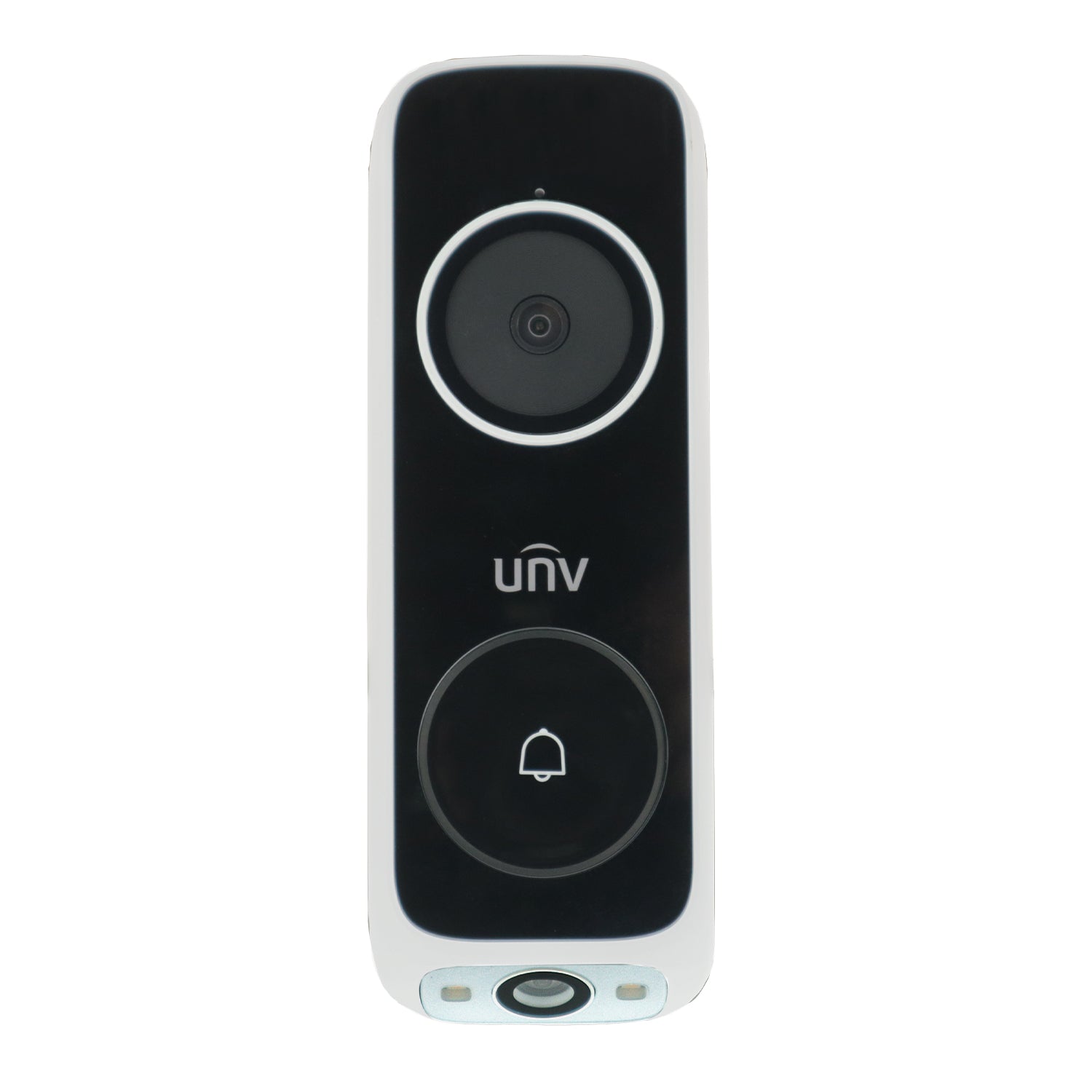

The ED-525B-WB video doorbell is equipped with two high-definition ultra-wide-angle lenses to provide a broad view of your front yard. The device supports motion detection, package detection, and human body detection, meeting your daily home security needs. The doorbell can also call the UNV-Link app, allowing you to answer visitor calls anytime, anywhere.

  • Supports mechanical chime and wireless chime.
  • Supports connection to a Uniview NVR for live view, playback, and alarm search.
  • Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR.

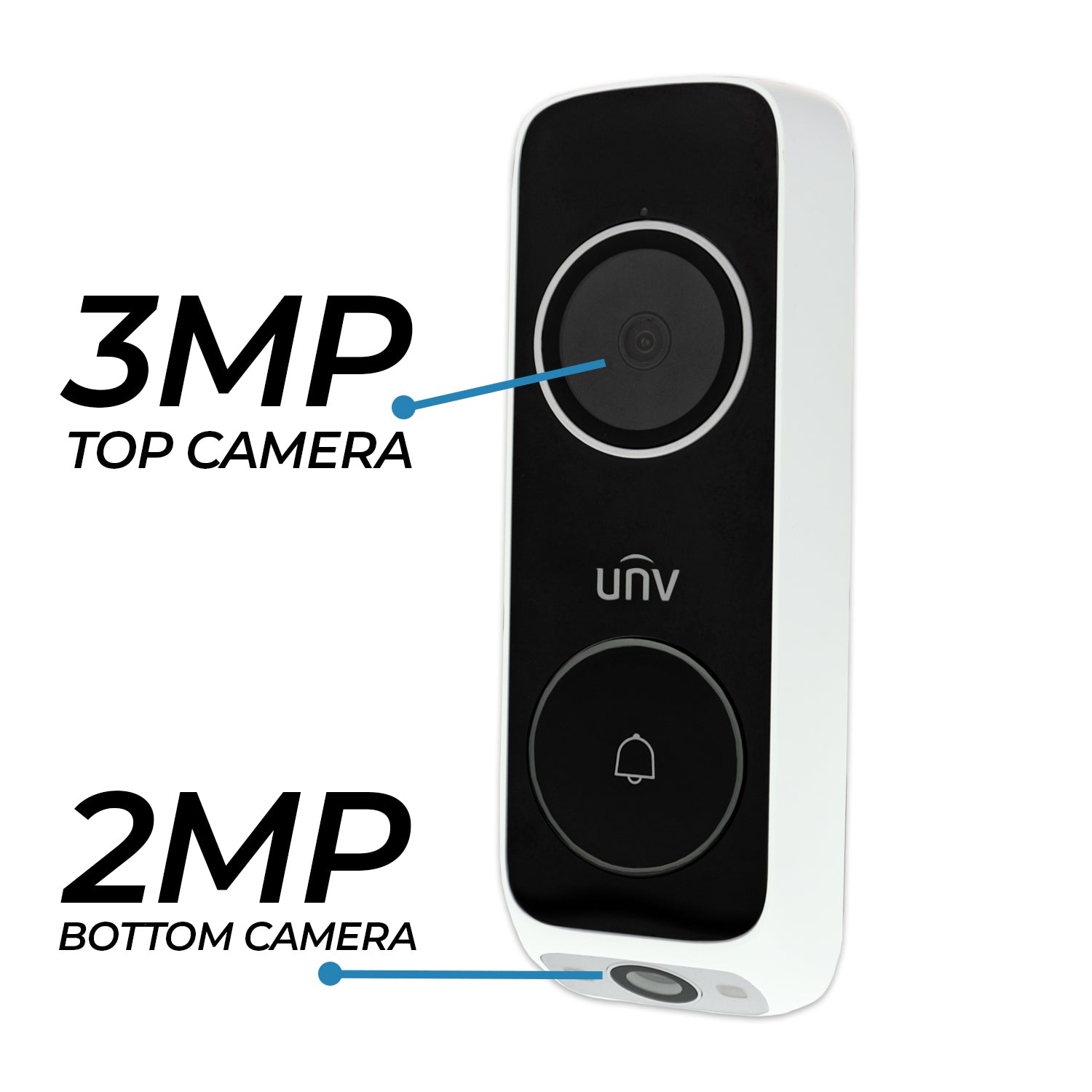

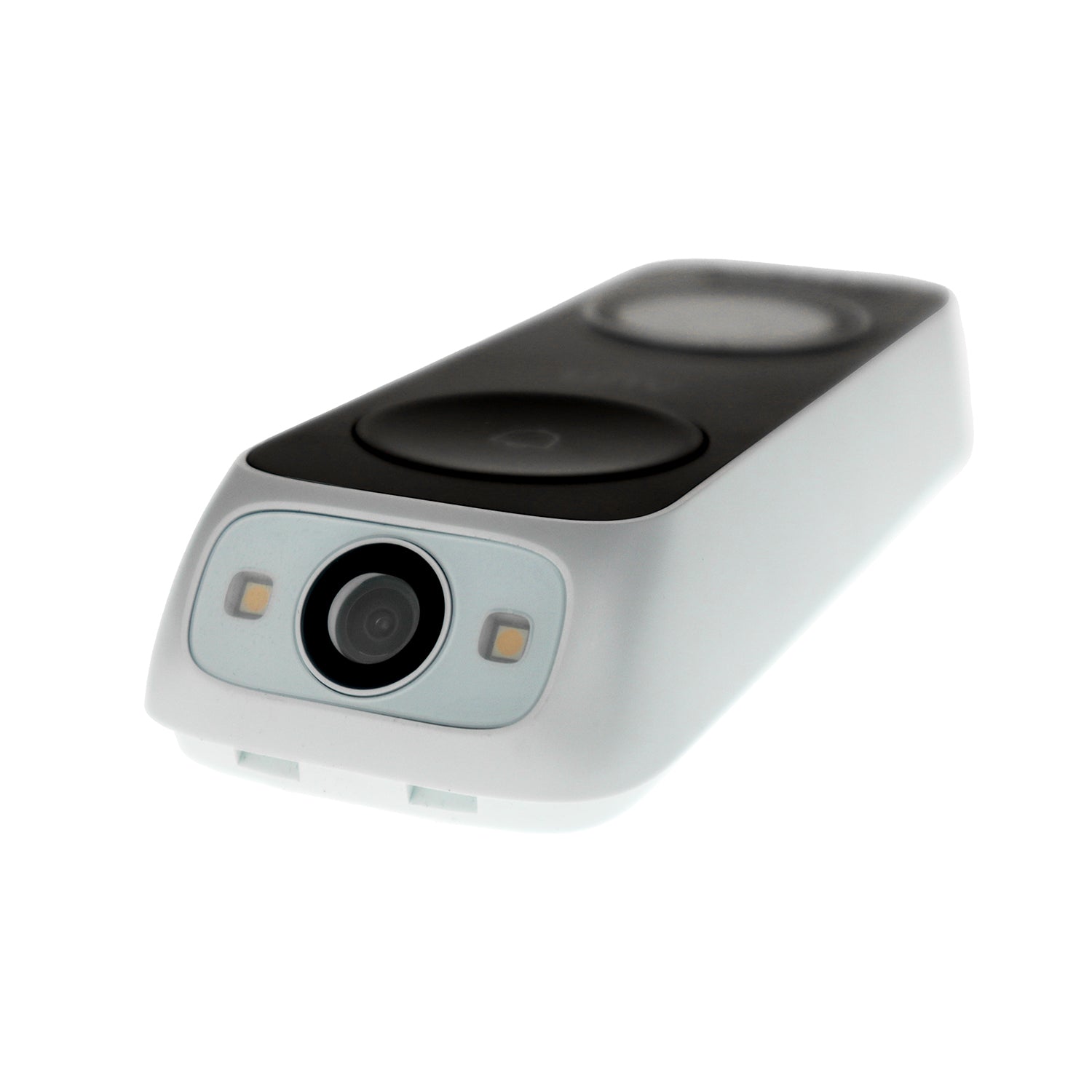

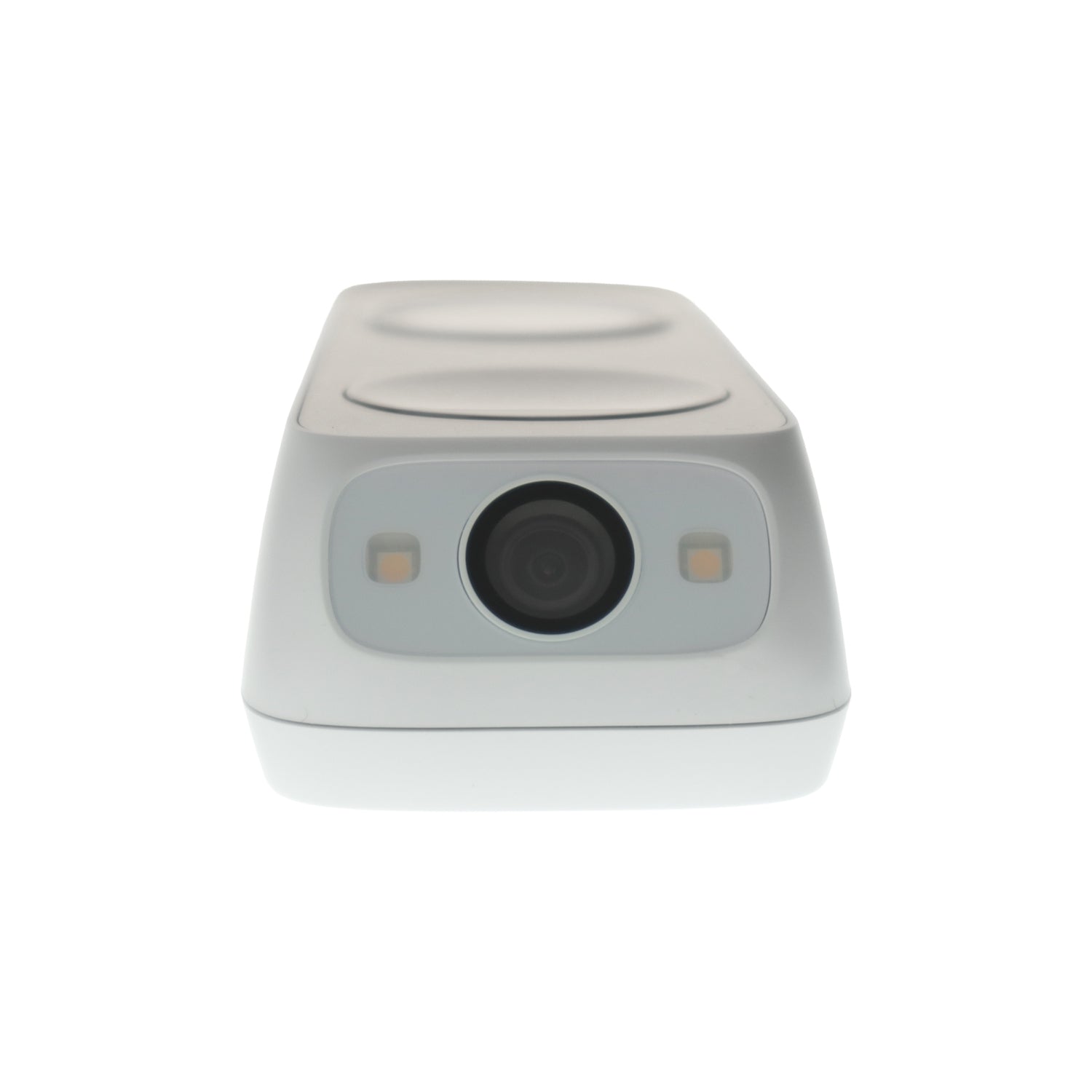

  • 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
  • Supports true HDR and WDR, capturing clearer images in backlit scenes.
  • Supports calling the UNV-Link app, allows you to answer visitor calls anytime, anywhere using the app. Supports Sub-1GHz wireless chime.
  • Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring. Supports network connection through Bluetooth, quick and simple.
  • Built-in 8 GB eMMC storage, no extra storage costs necessary.
Characteristics

The ED-525B-WB video doorbell is equipped with two high-definition ultra-wide-angle lenses to provide a broad view of your front yard. The device supports motion detection, package detection, and human body detection, meeting your daily home security needs. The doorbell can also call the UNV-Link app, allowing you to answer visitor calls anytime, anywhere.

  • Supports mechanical chime and wireless chime.
  • Supports connection to a Uniview NVR for live view, playback, and alarm search.
  • Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR.
  • 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
  • Supports true HDR and WDR, capturing clearer images in backlit scenes.
  • Supports calling the UNV-Link app, allows you to answer visitor calls anytime, anywhere using the app. Supports Sub-1GHz wireless chime.
  • Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring. Supports network connection through Bluetooth, quick and simple.
  • Built-in 8 GB eMMC storage, no extra storage costs necessary.

3MP HD RESOLUTION

The ED-525B-WB captures video up to a resolution of 3MP @ , which is 2048 x 1536 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 3MP, your going to get a crisper, cleaner, and more detailed image.

Wifi Security Camera

Ditch the long, obtrusive wires running across your floorboards and walls. The ED-525B-WB allows you to connect wirelessly to your network using Wifi to capture and record video. Wifi security cameras are often easier to install, and they give you greater flexibility for placement and mobility.

2-way

This built-in speaker allows for one-way communication in real time with anyone in the camera's vicinity. Use this feature to deter crime, draw attention to your surveillance, or simply broadcast a message.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP65 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 65. This means the camera is completely protected from dust and other solid particles (the first six). It can also withstand streams of water jets from any direction (the five).

Rest assured that when you install your camera outside, it will have no problem withstanding the elements.

Up to 16ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 16ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Camera Type Wi-Fi
Form Factor Doorbell
Resolution 3MP
Max Resolution 2048 x 1536
Lens Type Fixed Lens
Field of View Main Camera -- 116° | Sub Camera -- 96.8°
Illumination IR + White Light
IR Range Up to 16ft
Weatherproof Rating IP65
Audio 2-way
Wifi true
Onvif Compatible Yes
Power Supply AC 12V to 24V
Power Consumption 10W
