How to Capture and Log License Plates with Uniview's LPR Security Camera (HC121@TS8CR-Z)
A camera that can capture license plates can add a whole new dimension to your video surveillance system. It can work hand-in-hand with other secur...
Uniview
by
Uniview

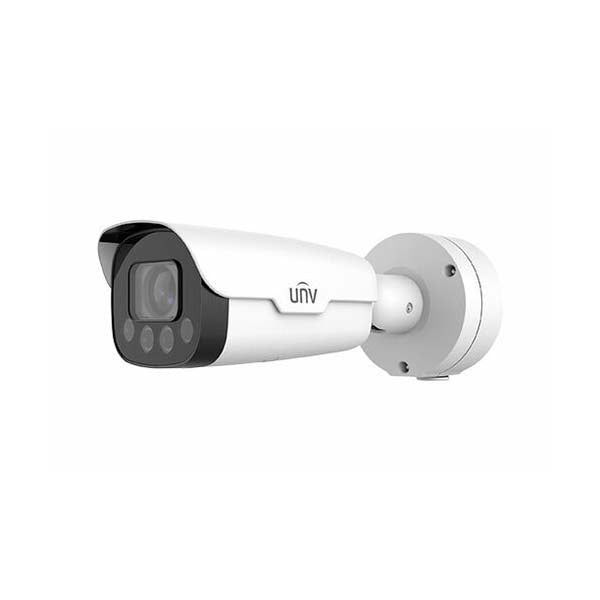

UNV FullHD 1080p @ 60fps ANPR License Plate Recognition LPR Weatherproof NDAA-Compliant Bullet IP Security Camera with a 4.7-47mm Motorized Lens (HC121@TS8CR-Z)
|
Translation missing: en.products.product.sku: SKU# 3458
Order within to ship- Regular price
- $1,669.00
- Sale price
- $1,669.00
- Regular price
-
Couldn't load pickup availability
- 1920 x 1080 @ 60fps
- Custom OSD allows various vehicle information to be overlaid on the video image
- Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries
- Supports license plate detection and recognition for up to 2 lanes in road scenes
- Supports recognition of up to 10 vehicle body colors
- Supports allow list and block list configurations
- Supports vehicle access control when connected to a barrier
- Supports Micro SD cards of up to 128 GB
- IP67 and IK10
You may want these accessories for this product
UNV Pole Mount Adapter for Fixed L...
$18.00
UNV Corner Bracket Mount for Bulle...
$26.00
Customers who bought this product also bought
UNV 128 Channel NDAA Comp...
$10,559.00
UNV 12MP 16-Channel NDAA-...
$1,879.00
UNV 12MP 32-Channel NDAA-...
$2,729.00
UNV 12MP 64-Channel NDAA-...
$3,079.00
Related Articles
HC121@TS8CR-Z
IP Security Camera
2MP
HD resolution
4.7-47mm
Motorized Varifocal Lens
IP67
Weatherproof Rating
Up to 165ft
Night Vision IR Range
3 Year Warranty
Warranty Information
Characteristics
A complete surveillance system involves more than tracking human movement. Many business and property owners also need to keep tabs on cars that enter and exit their premises. If you are looking for a security camera to capture and record license plate numbers, then pull those numbers into an intelligent database, then you've come to the right place.
Need help setting up your LPR? We got you covered!
The HC121@TS8CR-Z is a license plate recognition camera, or an LPR. With its FullHD resolution and silky smooth 60fps video, this camera is designed from the ground up to take crystal-clear images of license plates. It can even record license plates at night with its 165 foot IR distance. With its intelligent letter and number recognition algorithm, this LPR automatically pulls all license plates into a database for quick and simple filtering, searching, reviewing, and exporting. In addition to license plates, the camera can also recognize and categorize vehicles into 10 body colors. Plus, with blacklist and whitelist functionality, you'll also know if someone's there who shouldn't be. When connected to a barrier, this camera also supports vehicle access control.
This professional-grade LPR is for anyone looking to take control over the flow of traffic in their parking lot or alleyway. It's compatible with the following UNV NVRs: NVR302-08E2-P8 & NVR302-16E2-P16, NVR304-16E2-P16 & NVR304-32E2-P32, NVR304-16X & NVR304-32X, NVR308-16X & NVR308-32X & NVR308-64X, NVR516-64 & NVR516-128, NVR824-128R & NVR824-256R
Characteristics
A complete surveillance system involves more than tracking human movement. Many business and property owners also need to keep tabs on cars that enter and exit their premises. If you are looking for a security camera to capture and record license plate numbers, then pull those numbers into an intelligent database, then you've come to the right place.
Need help setting up your LPR? We got you covered!
The HC121@TS8CR-Z is a license plate recognition camera, or an LPR. With its FullHD resolution and silky smooth 60fps video, this camera is designed from the ground up to take crystal-clear images of license plates. It can even record license plates at night with its 165 foot IR distance. With its intelligent letter and number recognition algorithm, this LPR automatically pulls all license plates into a database for quick and simple filtering, searching, reviewing, and exporting. In addition to license plates, the camera can also recognize and categorize vehicles into 10 body colors. Plus, with blacklist and whitelist functionality, you'll also know if someone's there who shouldn't be. When connected to a barrier, this camera also supports vehicle access control.
This professional-grade LPR is for anyone looking to take control over the flow of traffic in their parking lot or alleyway. It's compatible with the following UNV NVRs: NVR302-08E2-P8 & NVR302-16E2-P16, NVR304-16E2-P16 & NVR304-32E2-P32, NVR304-16X & NVR304-32X, NVR308-16X & NVR308-32X & NVR308-64X, NVR516-64 & NVR516-128, NVR824-128R & NVR824-256R
2MP HD RESOLUTION
The HC121@TS8CR-Z captures video up to a resolution of 2MP @ 60 FPS, which is 1920 x 1080 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 2MP, your going to get a crisper, cleaner, and more detailed image.
4.7-47mm Motorized Varifocal Lens
The HC121@TS8CR-Z has a Motorized Varifocal Lens, ranging from
. This means you can easily and quickly adjust the zoom
to your liking directly from the camera's interface.
The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer
details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle
field of view.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
IK10 Vandalproof Rating
The HC121@TS8CR-Z has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.
Up to 165ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 165ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview
The HC121@TS8CR-Z is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
Related Videos
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 2MP | |
| Max Resolution | 1920 x 1080 | |
| Frames Per Second | 60 FPS | |
| Image Sensor | 1/2.8" CMOS | |
| Lens Type | Motorized Varifocal Lens | |
| Focal Length | 4.7-47mm | |
| Illumination | Infrared | |
| IR Range | Up to 165ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 16Mbps | |
| Weatherproof Rating | IP67 | |
| Vandal proof Rating | IK10 | |
| Onvif Compatible | Yes | |
| Onboard Storage | Up to 128GB | |
| Power Supply | DC12V|POE+ | |
| Power Consumption | Max 20W | |
| Operating Temperature | -40°F ~ 160°F | |
| Weight | 4.4lbs |
