ZKTeco by ZKTeco

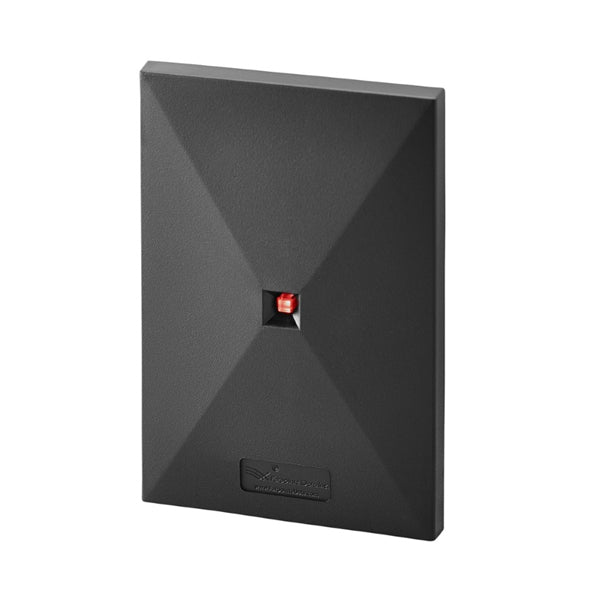

ZKTeco Multi-Technology HID Proximity Card Reader with Single-Gang Wall Box Mount (KR503H)

Translation missing: en.products.product.sku: SKU# 3170

Order within to ship
Regular price
$238.00
Sale price
$238.00
Regular price
  • Narrow construction for installation on surfaces with limited space
  • Mount on a flat surface or a single-gang wall box
  • Wiegand-out port for compatibility with most Access Control panels
  • Supported card types include HID & ZKAccess 125 kHz proximity cards
  • IP67 weatherproof and tamper-proof

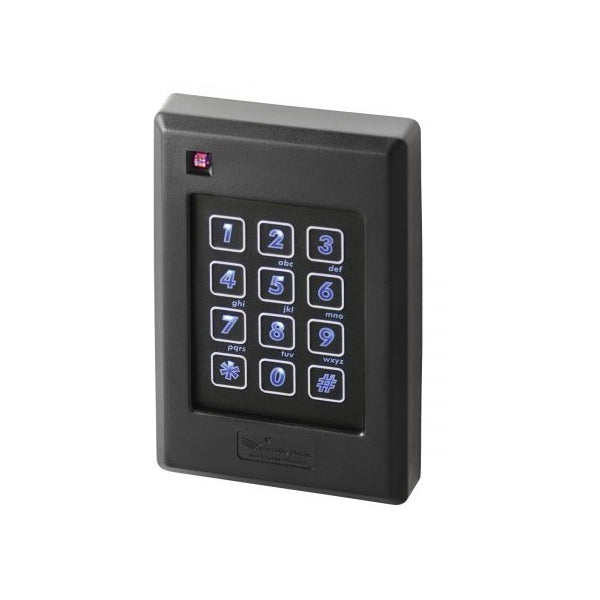

Need an upgrade? Consider these products

ZKTeco Multi-Technology HID Proximi...

$562.00

KR503H

2 Year Warranty

Warranty Information

Characteristics

ZKTecos' KR503H proximity card reader is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. This particular model can be mounted on flat surfaces or on single-gang wall boxes.

When it comes to compatibility, the KR503H has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more!

Proximity Card Reader

Proximity Card Reader

This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

Wiegand-Out Port

Wiegand-Out Port

This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.

Mullion-Size Narrow Construction

Single Gang Wall Box Mount

You have a couple of options when it comes to mounting surfaces. You can mount this on a flat surface, such as a wall. But you can also mount this directly to a single gang wall box.

IP67 Weatherproof Rating

This card reader has an Ingress Protection (IP) rating of 67. This means the proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your reader outside, it will have no problem withstanding the elements.

Specifications
Technology Proximity
Supported Card Types HID 125 kHz (also ZKAccess)
Mounting Metal or plastic US single-gang wall box, as well as flat surfaces
Indoor & Outdoor Installation Electronics sealed in weather- and tamper-resistant epoxy potting
Keypad Built-in keypad functionality
LED Indicator Red, green, amber, and off (represents 4 states)
Audio Indicator Beep
Wiegand Interface Wiegand-Out Port
Power Supply 5 to 16V DC
IP Weatherproof Rating IP67
Operating Temperature -35° F to 149° F / -40° C to + 65° C
Operating Humidity 20% - 80%
Dimensions (HxWxD) 4.6 x 3 x .6 inches (117 x 76 x 10 mm)
Certifications FCC, ICC, CE, C-Tick, ETL Listed
Current Draw 35 mA typical, 75 mA peak @ 12V DC
Read Range Up to 7 inches (178 mm)
Cabling 24 AWG minimum, multi-conductor stranded with an overall foil shield
Characteristics

ZKTecos' KR503H proximity card reader is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. This particular model can be mounted on flat surfaces or on single-gang wall boxes.

When it comes to compatibility, the KR503H has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more!

Proximity Card Reader

Proximity Card Reader

This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

Wiegand-Out Port

Wiegand-Out Port

This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.

Mullion-Size Narrow Construction

Single Gang Wall Box Mount

You have a couple of options when it comes to mounting surfaces. You can mount this on a flat surface, such as a wall. But you can also mount this directly to a single gang wall box.

IP67 Weatherproof Rating

This card reader has an Ingress Protection (IP) rating of 67. This means the proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your reader outside, it will have no problem withstanding the elements.

Specifications
Technology Proximity
Supported Card Types HID 125 kHz (also ZKAccess)
Mounting Metal or plastic US single-gang wall box, as well as flat surfaces
Indoor & Outdoor Installation Electronics sealed in weather- and tamper-resistant epoxy potting
Keypad Built-in keypad functionality
LED Indicator Red, green, amber, and off (represents 4 states)
Audio Indicator Beep
Wiegand Interface Wiegand-Out Port
Power Supply 5 to 16V DC
IP Weatherproof Rating IP67
Operating Temperature -35° F to 149° F / -40° C to + 65° C
Operating Humidity 20% - 80%
Dimensions (HxWxD) 4.6 x 3 x .6 inches (117 x 76 x 10 mm)
Certifications FCC, ICC, CE, C-Tick, ETL Listed
Current Draw 35 mA typical, 75 mA peak @ 12V DC
Read Range Up to 7 inches (178 mm)
Cabling 24 AWG minimum, multi-conductor stranded with an overall foil shield

SPECIFICATION Download PDF
SOFTWARE
Name Description Version Download
NameDevice Settings Tool Device search tool. Version v1.0.0.1 DownloadDownload
