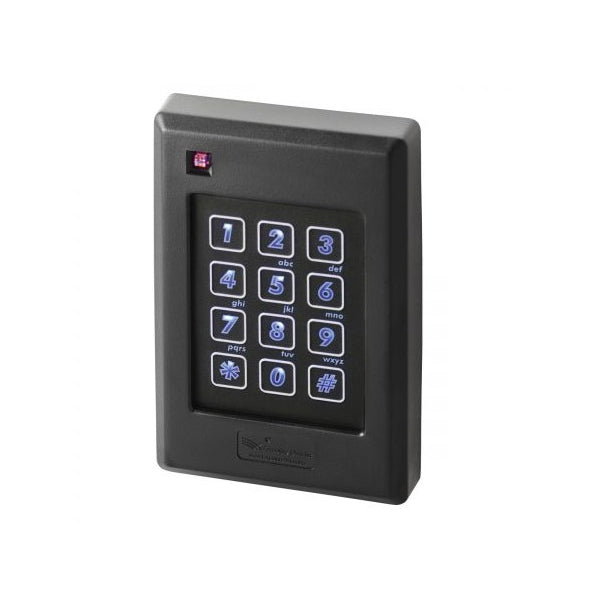

ZKTeco Multi-Technology HID Proximity Card Reader with Integrated Keypad and Single-Gang Wall Box Mount (KR502H)
Translation missing: en.products.product.sku: SKU# 3171
Order within to ship- Regular price
- $562.00
- Sale price
- $562.00
- Regular price
-
Couldn't load pickup availability
- Narrow construction for installation on surfaces with limited space
- Integrated keypad
- Mount on a flat surface or a single-gang wall box
- Wiegand-out port for compatibility with most Access Control panels
- Supported card types include HID & ZKAccess 125 kHz proximity cards
- IP67 weatherproof and tamper-proof
You may want these accessories for this product
ZKTeco HID 125 kHz Compatible Keyf...
ZKTeco RFID Prox 125 kHz Compatibl...
ZKTeco Thick Proximity Card to be ...
ZKTeco Thin Proximity Card to be u...
KR502H
2 Year Warranty
Warranty Information
ZKTeco's KR502H proximity card reader is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. This particular model can be mounted on flat surfaces or on single-gang wall boxes.
The KR502H is the only model in the KR500H series with an integrated keypad. This gives you more control over your access control system by opening the door to multiple verification methods, from proximity cards to personal identification numbers.
When it comes to compatibility, the KR502H has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.
With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more about this proximity card reader.
Proximity Card Reader
This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.
Integrated Keypad
The built-in keypad allows you to use this as a proximity card reader, a personal identification number keypad, or a combination of both.
Wiegand-Out Port
This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.
Single-Gang Wall Box Mount
You have a couple of options when it comes to mounting surfaces. You can mount this on a flat surface, such as a wall. But you can also mount this directly to a single-gange wall box.
IP67 Weatherproof Rating
This card reader has an Ingress Protection (IP) rating of 67. This means the proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.
Rest assured that when you install your reader outside, it will have no problem withstanding the elements.
| Specifications | |
|---|---|
| Technology | Proximity |
| Supported Card Types | HID 125 kHz (also ZKAccess) |
| Mounting | Metal or plastic US single-gang wall box, as well as flat surfaces |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| Keypad | Built-in keypad functionality |
| LED Indicator | Red, green, amber, and off (represents 4 states) |
| Audio Indicator | Beep |
| Wiegand Interface | Wiegand-Out Port |
| Power Supply | 5 to 16V DC |
| IP Weatherproof Rating | IP67 |
| Operating Temperature | -35° F to 149° F / -40° C to + 65° C |
| Operating Humidity | 20% - 80% |
| Dimensions (HxWxD) | 3.9 x 3.9 x 1 inches (117 x 76 x 19 mm) |
| Certifications | FCC, ICC, CE, C-Tick, ETL Listed |
| Current Draw | 70 mA typical, 110 mA peak @ 12 VDC |
| Read Range | Up to 7 inches (178 mm) |
| Cabling | 24 AWG minimum, multi-conductor stranded with an overall foil shield |
ZKTeco's KR502H proximity card reader is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. This particular model can be mounted on flat surfaces or on single-gang wall boxes.
The KR502H is the only model in the KR500H series with an integrated keypad. This gives you more control over your access control system by opening the door to multiple verification methods, from proximity cards to personal identification numbers.
When it comes to compatibility, the KR502H has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.
With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more about this proximity card reader.
Proximity Card Reader
This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.
Integrated Keypad
The built-in keypad allows you to use this as a proximity card reader, a personal identification number keypad, or a combination of both.
Wiegand-Out Port
This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.
Single-Gang Wall Box Mount
You have a couple of options when it comes to mounting surfaces. You can mount this on a flat surface, such as a wall. But you can also mount this directly to a single-gange wall box.
IP67 Weatherproof Rating
This card reader has an Ingress Protection (IP) rating of 67. This means the proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.
Rest assured that when you install your reader outside, it will have no problem withstanding the elements.
| Specifications | |
|---|---|
| Technology | Proximity |
| Supported Card Types | HID 125 kHz (also ZKAccess) |
| Mounting | Metal or plastic US single-gang wall box, as well as flat surfaces |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| Keypad | Built-in keypad functionality |
| LED Indicator | Red, green, amber, and off (represents 4 states) |
| Audio Indicator | Beep |
| Wiegand Interface | Wiegand-Out Port |
| Power Supply | 5 to 16V DC |
| IP Weatherproof Rating | IP67 |
| Operating Temperature | -35° F to 149° F / -40° C to + 65° C |
| Operating Humidity | 20% - 80% |
| Dimensions (HxWxD) | 3.9 x 3.9 x 1 inches (117 x 76 x 19 mm) |
| Certifications | FCC, ICC, CE, C-Tick, ETL Listed |
| Current Draw | 70 mA typical, 110 mA peak @ 12 VDC |
| Read Range | Up to 7 inches (178 mm) |
| Cabling | 24 AWG minimum, multi-conductor stranded with an overall foil shield |
| SPECIFICATION | Download PDF |
|---|
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| NameDevice Settings Tool | Device search tool. | Version v1.0.0.1  |
DownloadDownload |
