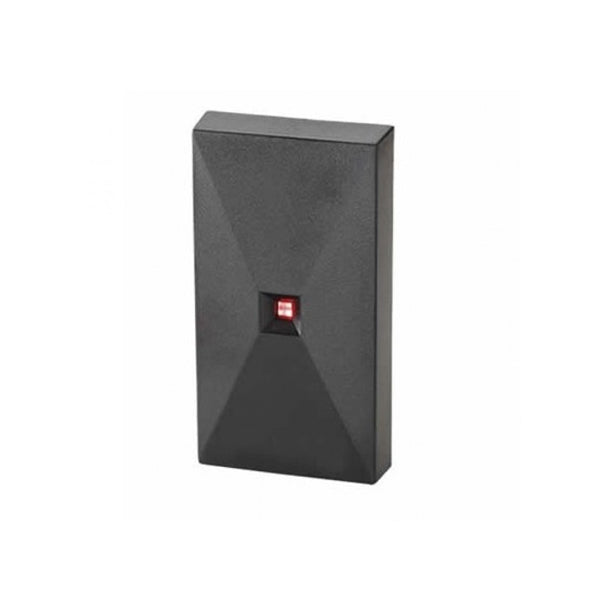

ZKTeco Narrow Multi-Technology HID Proximity Card Reader (KR500H)

Translation missing: en.products.product.sku: SKU# 3169

Order within to ship
Regular price
$171.00
Sale price
$171.00
Regular price
  • Narrow mullion-sized construction for installation on surfaces with limited space
  • Wiegand-out port for compatibility with most Access Control panels
  • Supported card types include HID & ZKAccess 125 kHz proximity cards
  • IP67 weatherproof and tamper-proof

You may want these accessories for this product

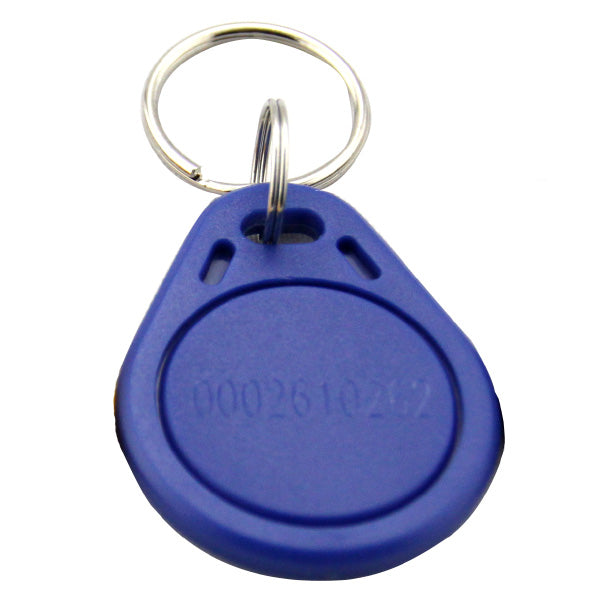

ZKTeco HID 125 kHz Compatible Keyf...

$10.00

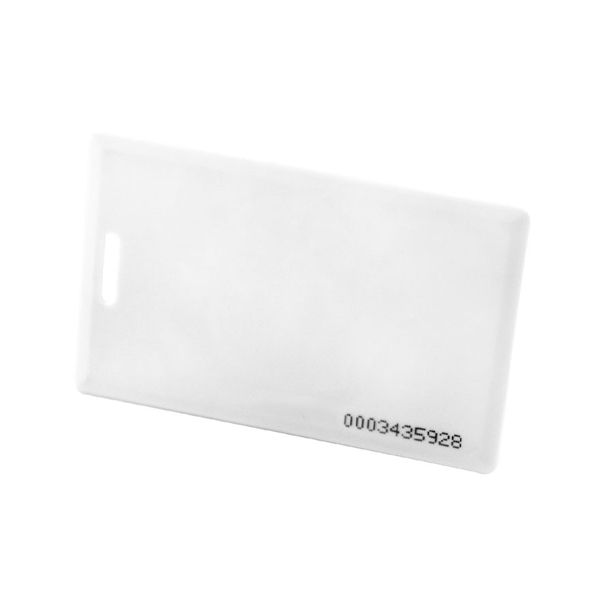

ZKTeco Thick Proximity Card to be ...

$75.00

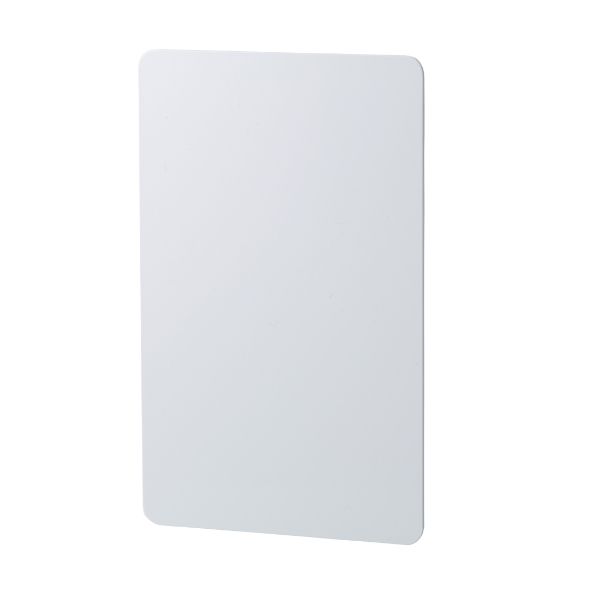

ZKTeco Thin Proximity Card to be u...

$52.50

ZKTeco RFID Prox 125 kHz Compatibl...

$3.00

KR500H

2 Year Warranty

Warranty Information

Characteristics

ZKTeco's KR500H proximity card reader series is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. WIth the KR500H reader, you can finally take your access control to narrower spaces. Think metal doors with thin frames, parking gates, fences, turnstiles, window frames, and much more.

When it comes to compatibility, the KR500H Series has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more about this proximity card reader.

Proximity Card Reader

Proximity Card Reader

This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

Wiegand-Out Port

Wiegand-Out Port

This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.

Mullion-Size Narrow Construction

Mullion-Size Narrow Construction

This reader has a unique narrow construction, about 1.7" wide, allowing it to fit on surfaces where space is quite limited. It's about the size of a window mullion.

IP67 Weatherproof Rating

This card reader has an Ingress Protection (IP) rating of 67. This means this proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your reader outside, it will have no problem withstanding the elements.

Specifications
Technology Proximity
Supported Card Types HID 125 kHz (also ZKAccess)
Mounting Mullions, including metal doors and window frames
Indoor & Outdoor Installation Electronics sealed in weather- and tamper-resistant epoxy potting
LED Indicator Red, green, amber, and off (represents 4 states)
Audio Indicator Beep
Wiegand Interface Wiegand-Out Port
Power Supply 5 to 16V DC
IP Weatherproof Rating IP67
Operating Temperature -35° F to 149° F / -40° C to + 65° C
Operating Humidity 20% - 80%
Dimensions (HxWxD) 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm)
Certifications FCC, ICC, CE, C-Tick, ETL Listed
Current Draw 35 mA typical, 75 mA peak @ 12V DC
Read Range Up to 5 inches (126 mm)
Cabling 24 AWG minimum, multi-conductor stranded with an overall foil shield
Characteristics

ZKTeco's KR500H proximity card reader series is ideal for any access control scenario where you are limited to a narrow mounting surface where a standard proximity card reader would be too large and bulky. WIth the KR500H reader, you can finally take your access control to narrower spaces. Think metal doors with thin frames, parking gates, fences, turnstiles, window frames, and much more.

When it comes to compatibility, the KR500H Series has a built-in Wiegand-Out port which can be connected to almost any access control panel (including ZKAccess C3 and InBio door controllers). It's capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

With an IP67 weatherproof rating and tamper-resistant technology, you can rest assured that your proximity card reader is built to last. Check out the specs below to learn more about this proximity card reader.

Proximity Card Reader

Proximity Card Reader

This proximity card reader is capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.

Wiegand-Out Port

Wiegand-Out Port

This reader's built-in Wiegand-Out port allows the reader to be used with most Access Control systems, including ZKAccess C3 and InBio door controllers.

Mullion-Size Narrow Construction

Mullion-Size Narrow Construction

This reader has a unique narrow construction, about 1.7" wide, allowing it to fit on surfaces where space is quite limited. It's about the size of a window mullion.

IP67 Weatherproof Rating

This card reader has an Ingress Protection (IP) rating of 67. This means this proximity reader is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your reader outside, it will have no problem withstanding the elements.

Specifications
Technology Proximity
Supported Card Types HID 125 kHz (also ZKAccess)
Mounting Mullions, including metal doors and window frames
Indoor & Outdoor Installation Electronics sealed in weather- and tamper-resistant epoxy potting
LED Indicator Red, green, amber, and off (represents 4 states)
Audio Indicator Beep
Wiegand Interface Wiegand-Out Port
Power Supply 5 to 16V DC
IP Weatherproof Rating IP67
Operating Temperature -35° F to 149° F / -40° C to + 65° C
Operating Humidity 20% - 80%
Dimensions (HxWxD) 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm)
Certifications FCC, ICC, CE, C-Tick, ETL Listed
Current Draw 35 mA typical, 75 mA peak @ 12V DC
Read Range Up to 5 inches (126 mm)
Cabling 24 AWG minimum, multi-conductor stranded with an overall foil shield
