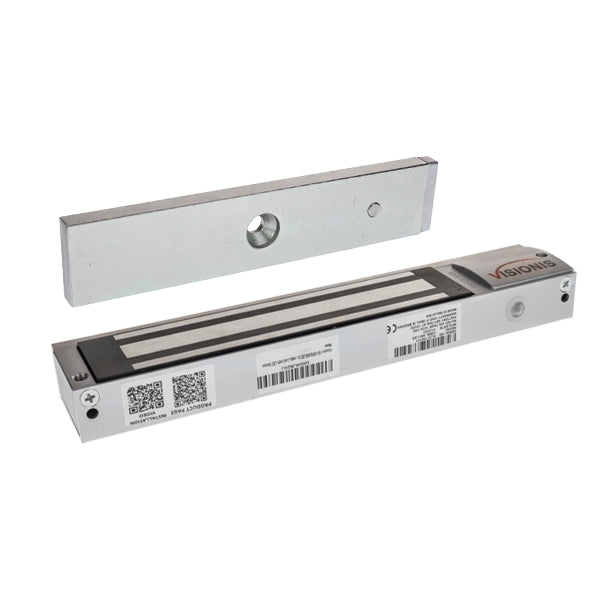

Visionis 600lb Indoor Magnetic Lock with LED Sensor for Door Access Control (VIS-ML600LED)

Translation missing: en.products.product.sku: SKU# 3506

Order within to ship
Regular price
$75.89
Sale price
$75.89
Regular price
  • Voltage Input: 12 VDC / 24 VDC
  • Has a holding force of 600Lbs (272Kg)
  • Current draw of 12V / 500mA ; 24V / 250mA (±5%)
  • Operating Temperature: 32 to 131°F (0 to 55°C)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.5A, 10W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
  • Delay time for power-ON is 0-18sec with LED indication
  • Green/Red LED Indication for EM Lock Status
  • Anodized aluminum housing suitable for wooden, metal, glass and fireproof doors.

You may want these accessories for this product

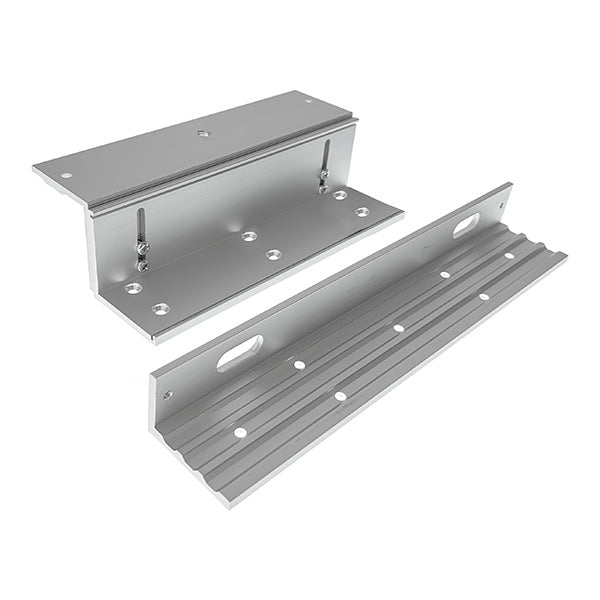

VISIONIS L and Z Bracket for 600lb...
