Uniview by Uniview

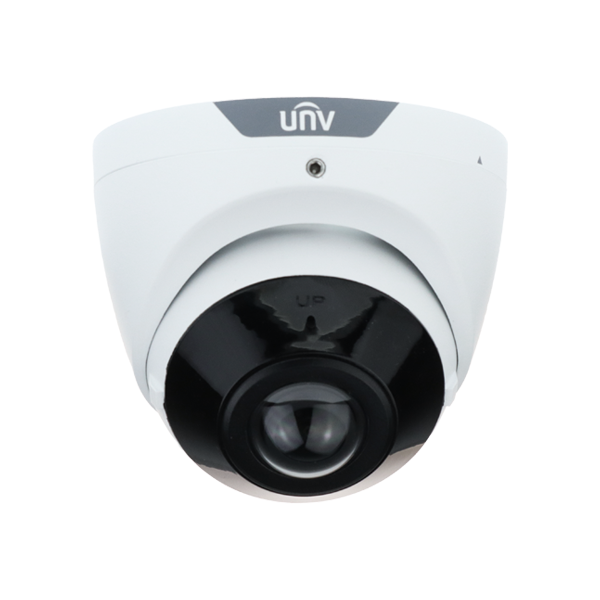

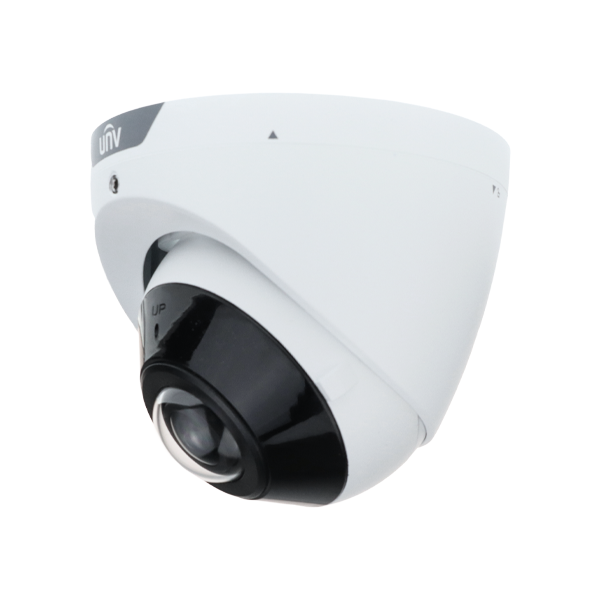

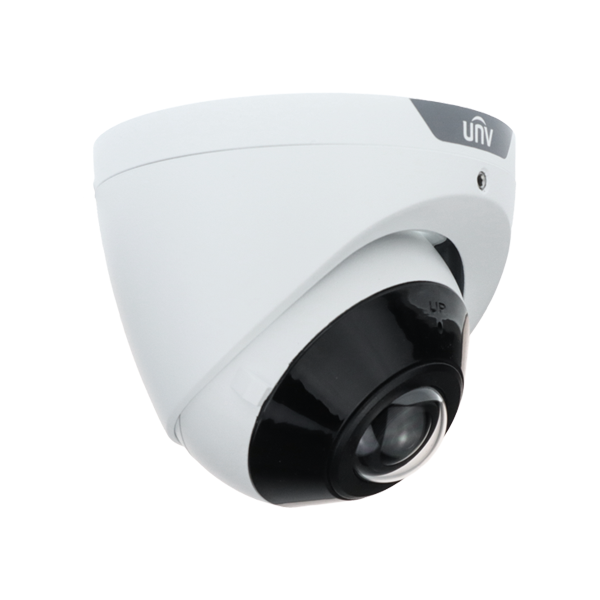

UNV 8MP 4K UltraHD Wide Angle 180° Field of View NDAA Compliant Weatherproof IR Fixed Turret IP Security Camera with Deep Learning AI (IPC3608SB-ADF16KM-I0)

|

Translation missing: en.products.product.sku: SKU# 3790

Order within to ship
Regular price
$709.00
Sale price
$709.00
Regular price
  • High quality image with 8MP, 1/2.7"CMOS• sensor
  • 8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Wide Angle technology realize the horizontal viewing angle of 180°
  • The dewarp level can be configured in the range of 1-9
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • 120dB true WDR technology enables clear image in strong light scene
  • Auto Scene Match (ASM)(Only WDR
  • Built-in Mic
  • Smart IR, up to 20m (66ft) IR distance
  • IP67 protection
  • IK10 vandal resistant

You may want these accessories for this product

UNV Wall Mount W/ Junction Box for...

$40.00

UNV Junction Box for Fixed Lens Do...

$17.00

UNV Pole Mount Adapter (TR-UP06-IN)

$17.00

UNV Fixed Dome Indoor Pendant Moun...

$15.00

UNV 400mm Extender for PTZ Dome Pe...

$17.00

UNV Waterproof Cable Joint (TR-A01...

$6.00

UNV Corner Bracket Mount for Bulle...

$26.00

IPC3608SB-ADF16KM-I0

IP Security Camera

4K

Ultra HD resolution

1.68mm

Fixed Lens

IP67

Weatherproof Rating

Up to 65ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics
  • High quality image with 8MP, 1/2.7"CMOS• sensor
  • 8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Wide Angle technology realize the horizontal viewing angle of 180°
  • The dewarp level can be configured in the range of 1-9
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • 120dB true WDR technology enables clear image in strong light scene
  • Auto Scene Match (ASM)(Only WDR
  • Built-in Mic
  • Smart IR, up to 20m (66ft) IR distance
  • IP67 protection
  • IK10 vandal resistant
Characteristics
  • High quality image with 8MP, 1/2.7"CMOS• sensor
  • 8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Wide Angle technology realize the horizontal viewing angle of 180°
  • The dewarp level can be configured in the range of 1-9
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • 120dB true WDR technology enables clear image in strong light scene
  • Auto Scene Match (ASM)(Only WDR
  • Built-in Mic
  • Smart IR, up to 20m (66ft) IR distance
  • IP67 protection
  • IK10 vandal resistant

4K HD RESOLUTION

The IPC3608SB-ADF16KM-I0 captures video up to a resolution of 4K @ 30 FPS, which is 3840 x 2160 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4K, your going to get a crisper, cleaner, and more detailed image.

1.68mm Fixed Lens

The IPC3608SB-ADF16KM-I0 has a 1.68mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC3608SB-ADF16KM-I0 has a horizontal field of view of 180°.

Artificial Intelligence

With artificial intelligence, the IPC3608SB-ADF16KM-I0 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

Built-in Microphone

Having audio capabilities in your video surveillance system can be an important feature. The IPC3608SB-ADF16KM-I0 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

Up to 65ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 65ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview

The IPC3608SB-ADF16KM-I0 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.


Plug & play

If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Camera Type IP
Form Factor Turret
Resolution 4K
Max Resolution 3840 x 2160
Frames Per Second 30 FPS
Image Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens Type Fixed Lens
Focal Length 1.68mm
Field of View 180°
Illumination Infrared
IR Range Up to 65ft
Video Compression Ultra H.265|H.265|H.264
Weatherproof Rating IP67
Audio Built-in Microphone
Onvif Compatible Yes
Artificial Intelligence Yes
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption Max 7W
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Weight 0.49kg (1.08lb)
