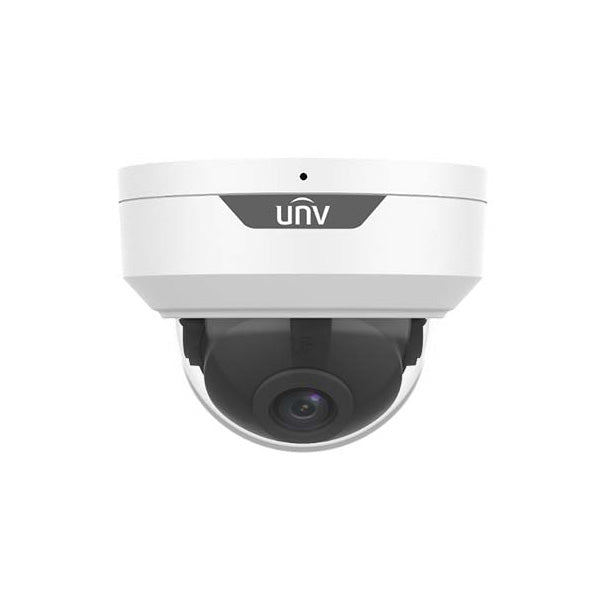

UNV 5MP LightHunter Weatherproof Vandal Dome TVI/AHD/CVI/CVBS Analog Security Camera with a 2.8mm Fixed Lens (UAC-D125-AF28M)
Translation missing: en.products.product.sku: SKU# 3682
Order within to ship- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
- Crystal-clear, high-quality imaging with 5MP resolution
- Compatible with TVI, AHD, CVI, and CVBS technologies for flexible integration
- Automatic IR-cut filter (ICR) for enhanced day and night monitoring
- LightHunter technology for superior low-light sensitivity
- Convenient 180° horizontal and vertical flip functionality
- Intuitive OSD configuration menu for easy operation
- Water and dust resistance (IP67) to withstand harsh environmental conditions
- Vandal-resistant design (IK10) for added protection
- Supports OSD configuration menu in 11 languages for multilingual users
- Built-in microphone enables high-quality audio transmission via coaxial cables
- Durable metal base and housing for long-lasting reliability
- 3-Axis adjustment for flexible and precise positioning
You may want these accessories for this product
UNV Wall Mount for Dome Security C...
UNV Wall Mount W/ Junction Box for...
UNV Junction Box for Fixed Lens Do...
UNV Fixed Dome Indoor Incline Moun...
UNV Pole Mount Adapter (TR-UP06-IN)
UNV Fixed Dome Indoor Pendant Moun...
UNV 400mm Extender for PTZ Dome Pe...
UNV Waterproof Cable Joint (TR-A01...
UNV Corner Bracket Mount for Bulle...
UAC-D125-AF28M
HD-TVI Security Camera
5MP
HD resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range
3 Year Warranty
Warranty Information
- Crystal-clear, high-quality imaging with 5MP resolution
- Compatible with TVI, AHD, CVI, and CVBS technologies for flexible integration
- Automatic IR-cut filter (ICR) for enhanced day and night monitoring
- LightHunter technology for superior low-light sensitivity
- Convenient 180° horizontal and vertical flip functionality
- Intuitive OSD configuration menu for easy operation
- Water and dust resistance (IP67) to withstand harsh environmental conditions
- Vandal-resistant design (IK10) for added protection
- Supports OSD configuration menu in 11 languages for multilingual users
- Built-in microphone enables high-quality audio transmission via coaxial cables
- Durable metal base and housing for long-lasting reliability
- 3-Axis adjustment for flexible and precise positioning
- Crystal-clear, high-quality imaging with 5MP resolution
- Compatible with TVI, AHD, CVI, and CVBS technologies for flexible integration
- Automatic IR-cut filter (ICR) for enhanced day and night monitoring
- LightHunter technology for superior low-light sensitivity
- Convenient 180° horizontal and vertical flip functionality
- Intuitive OSD configuration menu for easy operation
- Water and dust resistance (IP67) to withstand harsh environmental conditions
- Vandal-resistant design (IK10) for added protection
- Supports OSD configuration menu in 11 languages for multilingual users
- Built-in microphone enables high-quality audio transmission via coaxial cables
- Durable metal base and housing for long-lasting reliability
- 3-Axis adjustment for flexible and precise positioning
5MP HD RESOLUTION
The UAC-D125-AF28M captures video up to a resolution of 5MP @ 25 FPS, which is 2880×1620 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
2.8mm Fixed Lens
The UAC-D125-AF28M has a 2.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.
The UAC-D125-AF28M has a horizontal field of view of 109.1°.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The UAC-D125-AF28M comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.
IK10 Vandalproof Rating
The UAC-D125-AF28M has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.
Up to 100ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | HD-TVI | |
| Form Factor | Dome | |
| Resolution | 5MP | |
| Max Resolution | 2880×1620 | |
| Frames Per Second | 25 FPS | |
| Image Sensor | 1/2.7" | |
| Lens Type | Fixed Lens | |
| Focal Length | 2.8mm | |
| Field of View | 109.1° | |
| Illumination | Infrared | |
| IR Range | Up to 100ft | |
| Weatherproof Rating | IP67 | |
| Vandal proof Rating | IK10 | |
| Audio | Built-in Microphone | |
| Power Supply | DC12V | |
| Power Consumption | Max 3.3W | |
| Operating Temperature | -22°F to 140°F | |
| Weight | 0.82lbs | |
| Power Supply | DC12V | |
| Power Consumption | Max 3.3W | |
| Operating Temperature | -22°F to 140°F | |
| Weight | 0.82lbs |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1130.3.12.0  |
DownloadDownload |
| EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Versionv1122.2.6.0 |
DownloadDownload |
| EZ Player | Media player for local recordings. | Versionv1111.1.3.0 |
DownloadDownload |
| Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. | Version |
DownloadDownload |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1113.3.10.1  |
DownloadDownload |
| MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. | Version |
DownloadDownload |
