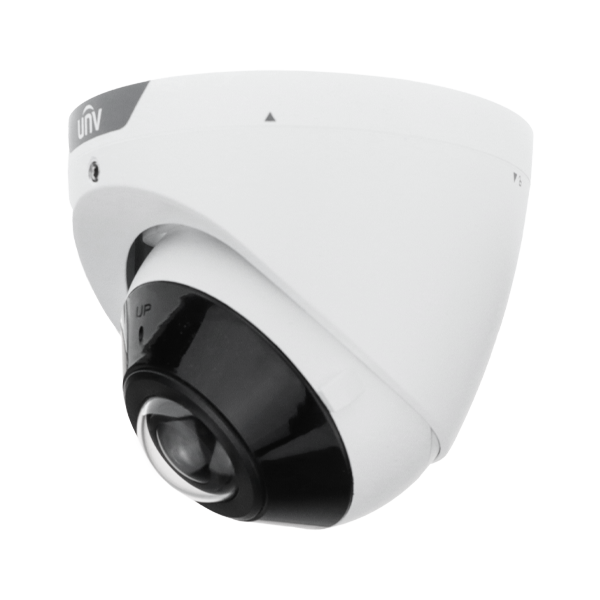

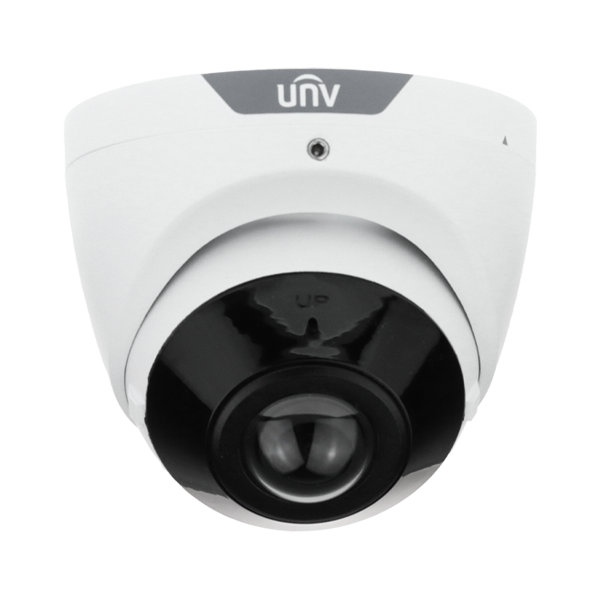

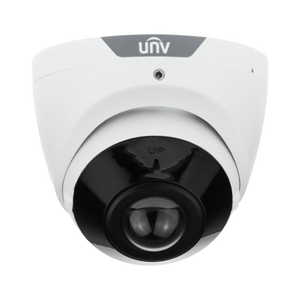

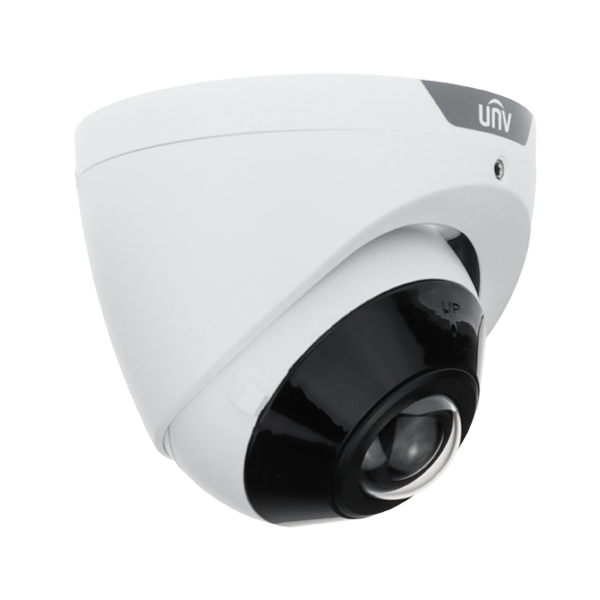

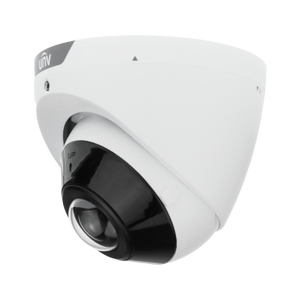

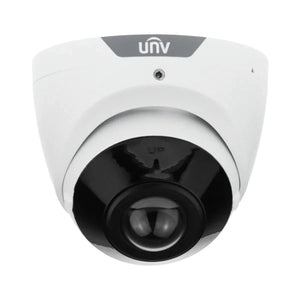

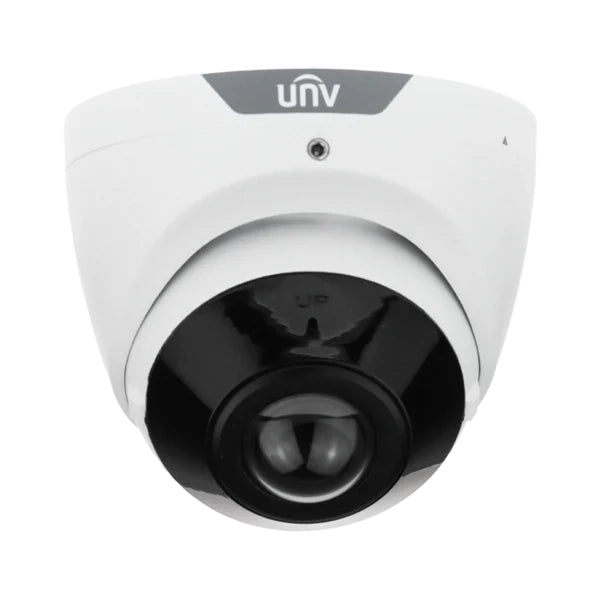

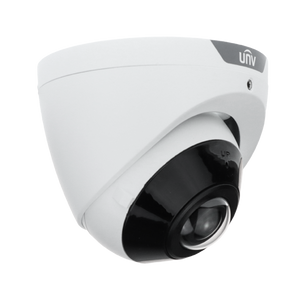

UNV 5MP HD Wide Angle 180° Field of View NDAA Compliant Weatherproof IR Fixed Turret IP Security Camera with Deep Learning AI (IPC3605SB-ADF16KM-I0)
Translation missing: en.products.product.sku: SKU# 3600
Order within to ship- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
- High quality image with 5MP, 1/2.7"CMOS·sensor
- 5MP (2880 x 1620)@30/25fps; 4MP (2560 x 1440)@30/25fps; 3MP(2304 x 1296) @30/25fps; 2MP (1920 x 1080) @30/25fps
- Wide angle with a 180° horizontal field of view
- The de-warp level can be configured in the range of 1-9
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds and lights etc., accurately focuses on humans, motor vehicles and non-motor vehicles
- 120dB true WDR technology enables clear image in strong light scene
- Built-in Mic
- Smart IR, up to 66ft (20m) IR distance
- Supports 256 GB microSD card
- IP67 protection
- IK10 vandal resistant
Choose a version
Choose between the Retail and Blank version of this product.
- UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
- UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.
UNV Blank
You may want these accessories for this product
UNV Junction Box for Fixed Lens Do...
UNV Fixed Dome Indoor Incline Moun...
UNV Pole Mount Adapter (TR-UP06-IN)
UNV Waterproof Cable Joint (TR-A01...
UNV Wall Mount W/ Junction Box for...
UNV Wall Mount for Dome Security C...
UNV 400mm Extender for PTZ Dome Pe...
UNV Corner Bracket Mount for Bulle...
IPC3605SB-ADF16KM-I0
IP Security Camera
5MP
HD resolution
1.68mm
Fixed Lens
IP67
Weatherproof Rating
Up to 65ft
Night Vision IR Range
3 Year Warranty
Warranty Information
- High quality image with 5MP, 1/2.7"CMOS·sensor
- 5MP (2880 x 1620)@30/25fps; 4MP (2560 x 1440)@30/25fps; 3MP(2304 x 1296) @30/25fps; 2MP (1920 x 1080) @30/25fps
- Wide angle with a 180° horizontal field of view
- The de-warp level can be configured in the range of 1-9
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds and lights etc., accurately focuses on humans, motor vehicles and non-motor vehicles
- 120dB true WDR technology enables clear image in strong light scene
- Built-in Mic
- Smart IR, up to 66ft (20m) IR distance
- Supports 256 GB microSD card
- IP67 protection
- IK10 vandal resistant
- High quality image with 5MP, 1/2.7"CMOS·sensor
- 5MP (2880 x 1620)@30/25fps; 4MP (2560 x 1440)@30/25fps; 3MP(2304 x 1296) @30/25fps; 2MP (1920 x 1080) @30/25fps
- Wide angle with a 180° horizontal field of view
- The de-warp level can be configured in the range of 1-9
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds and lights etc., accurately focuses on humans, motor vehicles and non-motor vehicles
- 120dB true WDR technology enables clear image in strong light scene
- Built-in Mic
- Smart IR, up to 66ft (20m) IR distance
- Supports 256 GB microSD card
- IP67 protection
- IK10 vandal resistant
5MP HD RESOLUTION
The IPC3605SB-ADF16KM-I0 captures video up to a resolution of 5MP @ 30 FPS, which is 2880 x 1620 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
1.68mm Fixed Lens
The IPC3605SB-ADF16KM-I0 has a
1.68mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The IPC3605SB-ADF16KM-I0 has a horizontal field of view of
180°.
Artificial Intelligence
With artificial intelligence, the IPC3605SB-ADF16KM-I0 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The IPC3605SB-ADF16KM-I0 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
IK10 Vandalproof Rating
The IPC3605SB-ADF16KM-I0 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.
Up to 65ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 65ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview
The IPC3605SB-ADF16KM-I0 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
Related Videos
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Turret | |
| Resolution | 5MP | |
| Max Resolution | 2880 x 1620 | |
| Frames Per Second | 30 FPS | |
| Image Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |
| Lens Type | Fixed Lens | |
| Focal Length | 1.68mm | |
| Field of View | 180° | |
| Illumination | Infrared | |
| IR Range | Up to 65ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 10Mbps | |
| Weatherproof Rating | IP67 | |
| Vandal proof Rating | IK10 | |
| Audio | Built-in Microphone | |
| Onvif Compatible | Yes | |
| Intelligent Events | Cross Line Detection|Area Entrance Detection|Area Exit Detection|Intrusion Detection | |
| Artificial Intelligence | Yes | |
| Onboard Storage | Up to 256GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 5.5W | |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) | |
| Weight | 1.06lb (0.48kg) |
