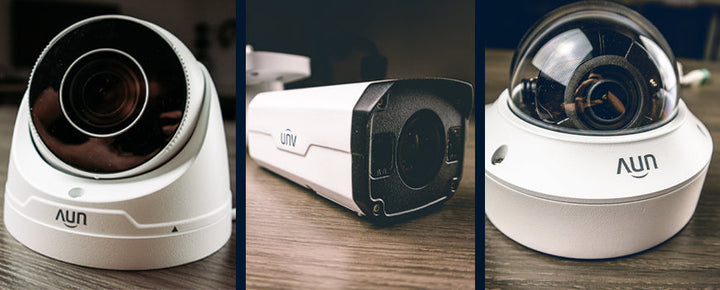

In our last video series, we looked at the Uniview Fixed Lens security cameras. These cameras are incredible and powerful cameras, but with a fe...
IP Security Camera
HD resolution
Motorized Varifocal Lens
Weatherproof Rating
Night Vision IR Range
Warranty Information
The IPC-2324LB-ADZK-G captures video up to a resolution of 4MP @ 25 FPS, which is 2688 x 1520 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.
The IPC-2324LB-ADZK-G has a Motorized Varifocal Lens, ranging from
106.94°~35.49°. This means you can easily and quickly adjust the zoom
to your liking directly from the camera's interface.
The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer
details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle
field of view.
Having audio capabilities in your video surveillance system can be an important feature. The IPC-2324LB-ADZK-G comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 165ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
The IPC-2324LB-ADZK-G is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 4MP | |
| Max Resolution | 2688 x 1520 | |
| Frames Per Second | 25 FPS | |
| Image Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |
| Lens Type | Motorized Varifocal Lens | |
| Focal Length | 2.8-12mm | |
| Field of View | 106.94°~35.49° | |
| Illumination | Infrared | |
| IR Range | Up to 165ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 16Mbps | |
| Weatherproof Rating | IP67 | |
| Audio | Built-in Microphone | |
| Onvif Compatible | Yes | |
| Onboard Storage | Up to 256GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 8.5W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Weight | 0.55kg (1.2lb) |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1130.3.12.0  |
DownloadDownload |
| EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Versionv1122.2.6.0 |
DownloadDownload |
| EZ Player | Media player for local recordings. | Versionv1111.1.3.0 |
DownloadDownload |
| Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. | Version |
DownloadDownload |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. | Versionv1113.3.10.1  |
DownloadDownload |
| MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. | Version |
DownloadDownload |
