Uniview by Uniview

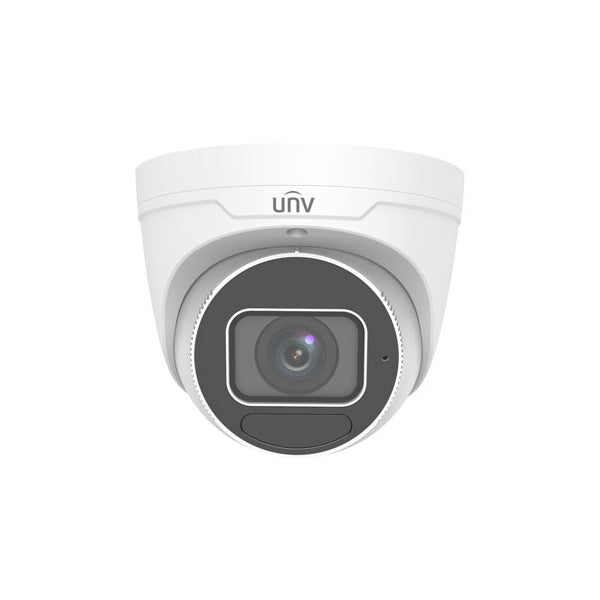

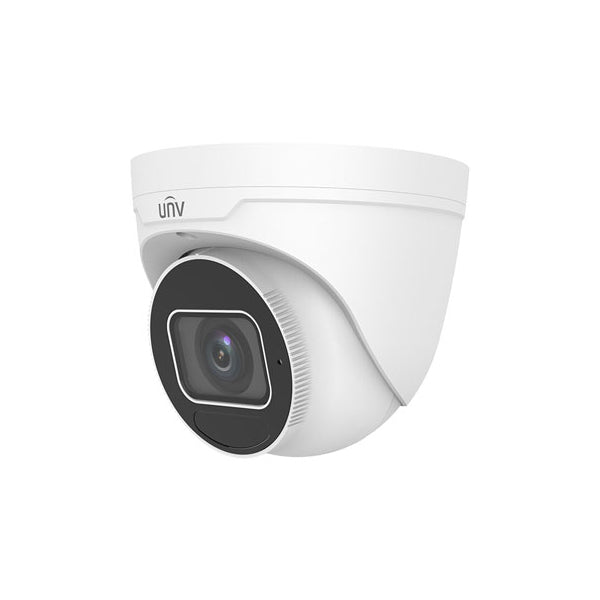

UNV 4K UltraHD (8MP) Prime I NDAA Compliant Weatherproof Turret IP Security Camera with a 2.8-12mm Motorized Lens and LightHunter Illumination Technology (IPC3638SB-ADZK-I0)

Translation missing: en.products.product.sku: SKU# 3240

Order within to ship
Regular price
$769.00
Sale price
$769.00
Regular price
Login for better price
  • High quality imaging with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply

You may want these accessories for this product

UNV 3-inch Fixed Dome Mount (TR-WM...

$27.00

UNV Wall Mount W/ Junction Box for...

$45.00

UNV Junction Box for Fixed Lens & ...

$18.00

UNV Pole Mount Adapter (TR-UP06-IN)

$17.00

UNV Fixed Dome Indoor Pendant Moun...

$15.00

UNV 400mm Extender for PTZ Dome Pe...

$17.00

UNV Waterproof Cable Joint (TR-A01...

$6.00

UNV Corner Bracket Mount for Bulle...

$26.00

IPC3638SB-ADZK-I0

IP Security Camera

4K

Ultra HD resolution

2.8-12mm

Motorized Varifocal Lens

IP67

Weatherproof Rating

Up to 130ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics
  • High quality imaging with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply
Characteristics
  • High quality imaging with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply

4K HD RESOLUTION

The IPC3638SB-ADZK-I0 captures video up to a resolution of 4K @ 20 FPS, which is 3840 x 2160 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4K, your going to get a crisper, cleaner, and more detailed image.

2.8-12mm Motorized Varifocal Lens

The IPC3638SB-ADZK-I0 has a Motorized Varifocal Lens, ranging from 29.2°-107.4°. This means you can easily and quickly adjust the zoom to your liking directly from the camera's interface.

The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle field of view.

Built-in Microphone

Having audio capabilities in your video surveillance system can be an important feature. The IPC3638SB-ADZK-I0 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC3638SB-ADZK-I0 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 130ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 130ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview

The IPC3638SB-ADZK-I0 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.


Plug & play

If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Camera Type IP
Form Factor Turret
Resolution 4K
Max Resolution 3840 x 2160
Frames Per Second 20 FPS
Image Sensor 1/2.8", Progressive Scan, CMOS
Lens Type Motorized Varifocal Lens
Focal Length 2.8-12mm
Field of View 29.2°-107.4°
Illumination Infrared
IR Range Up to 130ft
Video Compression Ultra H.265|H.265|H.264
Max Video Bitrate 16Mbps
Weatherproof Rating IP67
Vandal proof Rating IK10
Audio Built-in Microphone
Onvif Compatible No
Intelligent Events Cross Line Detection|Area Entrance Detection|Area Exit Detection|Intrusion Detection
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption ≤ 9.0W
Operating Temperature -22°F ~ 140°F
Weight ~1.52lbs
Video Compression Ultra H.265|H.265|H.264
Onvif Compatible Yes
Power Supply DC12V|POE
Power Consumption ≤ 9.0W
Operating Temperature -22°F ~ 140°F
Weight ~1.52lbs
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
