Uniview by Uniview

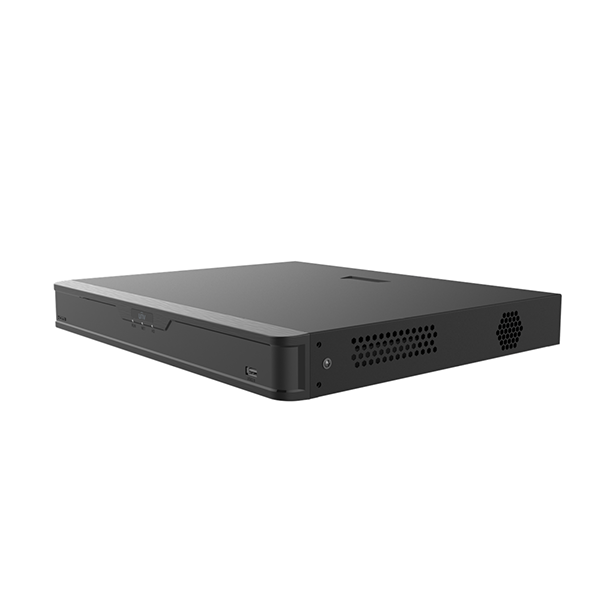

UNV 4K UltraHD NDAA-Compliant 16-Channel Hybrid Digital Video Recorder with support for TVI, AHD, CVI, CVBS, and 16 Additional IP Inputs (XVR302-16U3)

|

Translation missing: en.products.product.sku: SKU# 3787

Order within to ship
Regular price
$1,019.00
Sale price
$1,019.00
Regular price
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 16-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160) HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols

XVR302-16U3

16ch IP Recorder

4K Ultra HD

Up to 4K Ultra HD Resolution

2 SATA HDD

Up to 8TB each

3 Year Warranty

Warranty Information

Characteristics
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 16-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160) HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
Characteristics
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 16-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160) HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
Video recorders are the heart of your cctv system. With the XVR302-16U3 you can be sure that your security cameras are in good hands. This HD-TVI video recorder is perfect for medium-large installations with up to 16 security cameras.

In addition to being a 16 channel DVR, the XVR302-16U3 is also considered a Tribrid DVR, which means you also have the ability to add up to 16 IP security camera ; effectively making this 32 channel DVR.

The XVR302-16U3 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Recording Schedules

If you want 24/7 video recording, the XVR302-16U3 DVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 2 Hard Drive/s, Up to 8TB each.

You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Local & Remote Viewing

This DVR can be used with or without being connected to the Internet. You can view your DVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your DVR remotely by downloading the following app to your smart device.


SPECIFICATION Download PDF
IP Channels 16ch
Analog Channels 16ch
Max Resolution 4K Ultra HD
Max Incoming Bandwidth 80Mbps
Max Outgoing Bandwidth 160Mbps
Video Compression Ultra H.265|H.265|H.264
Hard Drive Slots 2
Hard Drive Capacity Up to 8TB each
Audio I/O 4ch / 1ch
Alarm I/O 8ch / 4ch
Onvif Compatible Yes
Power Supply DC12V
Power Consumption 38W (without HDD)
Operating Temperature -10°C ~ + 55°C (+14°F ~ +131°F)
Dimensions 380mm × 326mm × 53mm (15.0" × 12.8"×2.1")
Weight 2.3 Kg (5.07lb)
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
