Uniview by Uniview

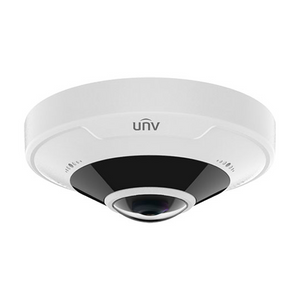

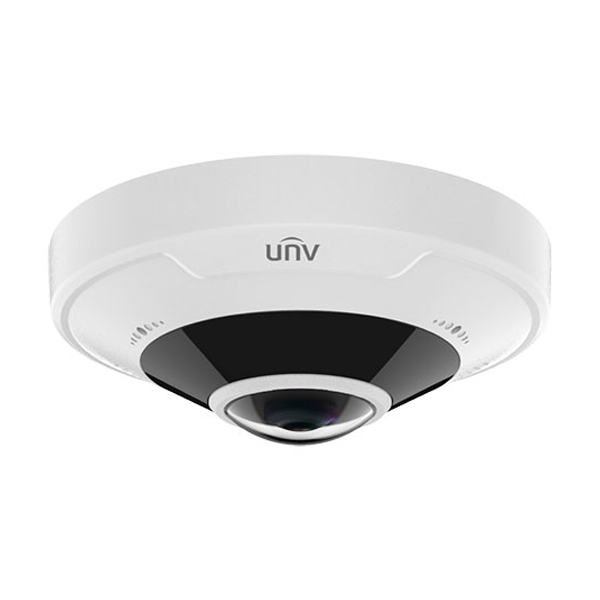

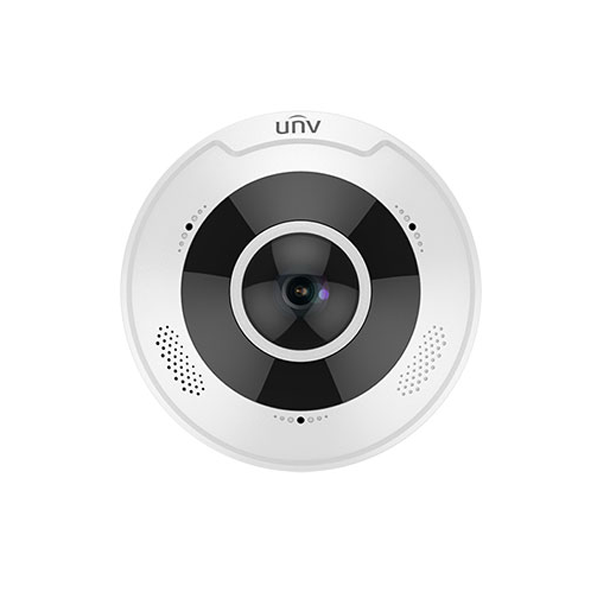

UNV 12MP 4K Ultra HD Panoramic IR Fisheye Security Camera (IPC86CEB-AF18KC-I0)

SKU# 3604

Order within to ship
$1,319.00
$1,319.00
Login for better price
  • High quality image with 12MP, 1/1.7’’ CMOS sensor
  • Max 4000 x 3000 resolution
  • Ultra265, H.265, H.264, MJPEG
  • Ultra wide angle lens, 360° panoramic image
  • Embedded infrared light, 360° fill-in light, up to 49ft (15m) IR distance
  • Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
  • Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
  • Built-in microphone & speaker, two-way talk supported
  • Supports 256 GB MicroSD card
  • IK10 vandal resistant
  • IP67 protection

You may want these accessories for this product

UNV Fixed Dome Indoor Pendant Moun...
$15.00

UNV 400mm Extender for PTZ Dome Pe...
$17.00

UNV Waterproof Cable Joint (TR-A01...
$6.00

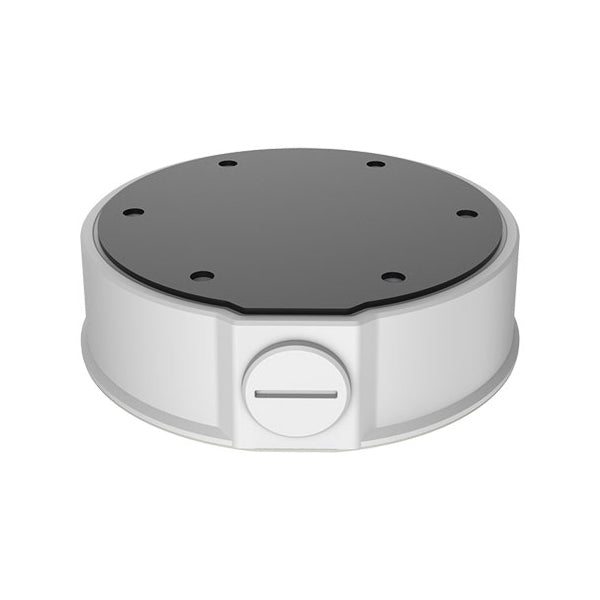

UNV 6-inch Fixed Dome Junction Box...
$22.00

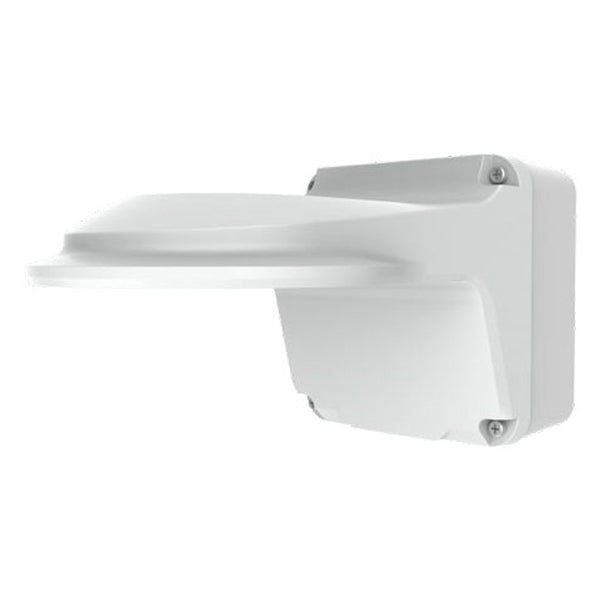

UNV Fixed Dome Outdoor Wall Mount ...
$38.00

IPC86CEB-AF18KC-I0

IP Security Camera

12MP

HD resolution

1.8mm

Fixed Lens

IP67

Weatherproof Rating

Up to 50ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics
  • High quality image with 12MP, 1/1.7’’ CMOS sensor
  • Max 4000 x 3000 resolution
  • Ultra265, H.265, H.264, MJPEG
  • Ultra wide angle lens, 360° panoramic image
  • Embedded infrared light, 360° fill-in light, up to 49ft (15m) IR distance
  • Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
  • Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
  • Built-in microphone & speaker, two-way talk supported
  • Supports 256 GB MicroSD card
  • IK10 vandal resistant
  • IP67 protection
Characteristics
  • High quality image with 12MP, 1/1.7’’ CMOS sensor
  • Max 4000 x 3000 resolution
  • Ultra265, H.265, H.264, MJPEG
  • Ultra wide angle lens, 360° panoramic image
  • Embedded infrared light, 360° fill-in light, up to 49ft (15m) IR distance
  • Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
  • Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
  • Built-in microphone & speaker, two-way talk supported
  • Supports 256 GB MicroSD card
  • IK10 vandal resistant
  • IP67 protection

12MP HD RESOLUTION

The IPC86CEB-AF18KC-I0 captures video up to a resolution of 12MP @ 25 FPS, which is 4000 x 3000 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 12MP, your going to get a crisper, cleaner, and more detailed image.

1.8mm Fixed Lens

The IPC86CEB-AF18KC-I0 has a 1.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC86CEB-AF18KC-I0 has a horizontal field of view of 360°.

2-Way Audio

The IPC86CEB-AF18KC-I0 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC86CEB-AF18KC-I0 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 50ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 50ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview

The IPC86CEB-AF18KC-I0 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.


Plug & play

If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Camera Type IP
Form Factor Fisheye
Resolution 12MP
Max Resolution 4000 x 3000
Frames Per Second 25 FPS
Image Sensor 1/1.7", 12.0 megapixel, progressive scan, CMOS
Lens Type Fixed Lens
Focal Length 1.8mm
Field of View 360°
Illumination Infrared
IR Range Up to 50ft
Video Compression Ultra H.265|H.265|H.264
Max Video Bitrate 16Mbps
Weatherproof Rating IP67
Vandal proof Rating IK10
Audio 2-Way Audio
Onvif Compatible No
Intelligent Events Cross Line Detection|Intrusion Detection|Heat Map
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption DC 12V±25%, PoE (IEEE 802.3af)
Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH
Weight 1.16lbs (524g)
Video Compression Ultra H.265|H.265|H.264
Onvif Compatible Yes
Power Supply DC12V|POE
Power Consumption DC 12V±25%, PoE (IEEE 802.3af)
Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH
Weight 1.16lbs (524g)
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
