Uniview by Uniview

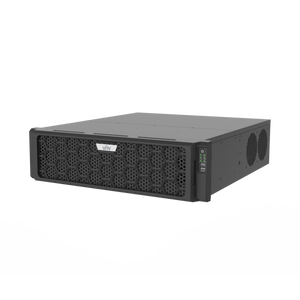

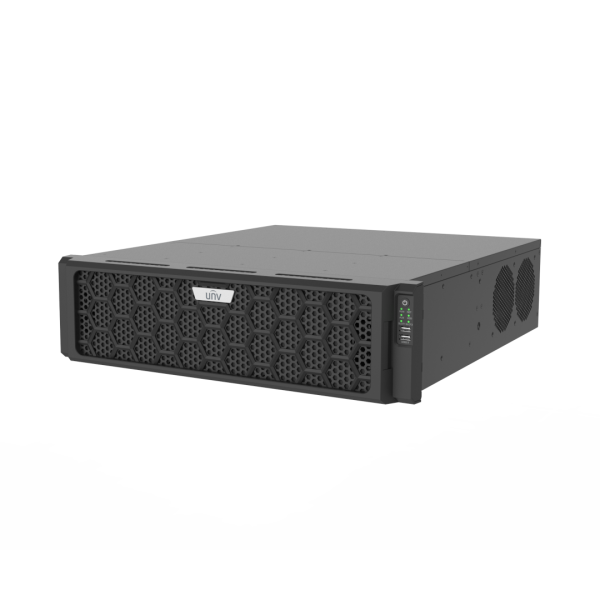

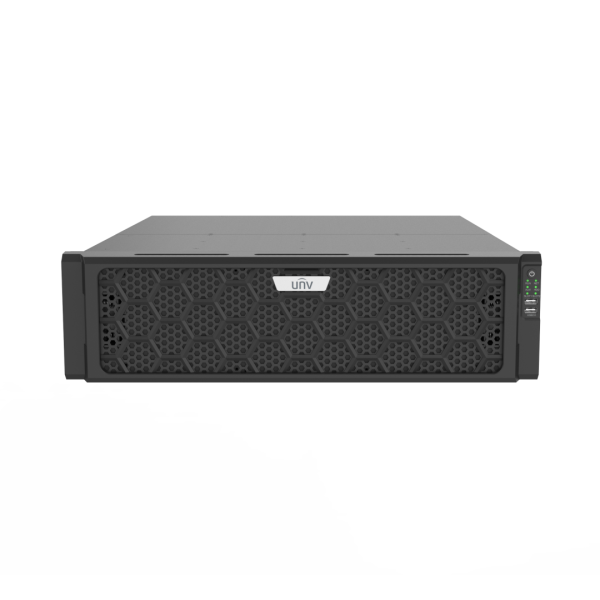

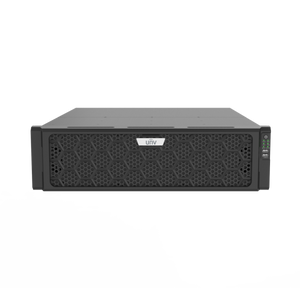

UNV 32MP 128-Channel Network Video Recorder with 16 Hard Drive Bays (NVR516-128E-R)

|

SKU# 3962

Order within to ship
$8,139.00
Shipping calculated at checkout.
Login for better price

NVR516-128E-R

Recorder

32MP

Up to 32MP Resolution

16 SATA HDD

Up to 16TB each

3 Year Warranty

Warranty Information

Characteristics
  • Support Ultra 265/H.265/H.264 video formats
  • 64/128-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution, HDMI2 at up to 4K(3840x2160) resolution
  • VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2
    independent output
  • Up to 32 Megapixels resolution recording
  • Redundant power supply optional
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare
Characteristics
  • Support Ultra 265/H.265/H.264 video formats
  • 64/128-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution, HDMI2 at up to 4K(3840x2160) resolution
  • VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2
    independent output
  • Up to 32 Megapixels resolution recording
  • Redundant power supply optional
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare
Video recorders are the heart of your cctv system. With the NVR516-128E-R you can be sure that your security cameras are in good hands. This IP video recorder is perfect for larger installations with up to 128 security cameras.

The NVR516-128E-R is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Please note, this recorder does not have an integrated PoE switch. Click here to shop external PoE switches.

Recording Schedules

If you want 24/7 video recording, the NVR516-128E-R NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 16 Hard Drive/s, Up to 16TB each.

You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.


SPECIFICATION
IP Channels 128
Max Resolution 32MP
Max Incoming Bandwidth 640Mbps
Max Outgoing Bandwidth 640Mbps
Hard Drive Slots 16
Hard Drive Capacity Up to 16TB each
Synchronus Playback 16ch
Alarm I/O 16ch / 10ch
Power Supply AC100 ～ 240V
Power Consumption ≤ 50W
Operating Temperature 14°F ~ 131°F
Dimensions 19.0"×21.0"×5.1"
Weight ~14.3lbs
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
