Uniview by Uniview

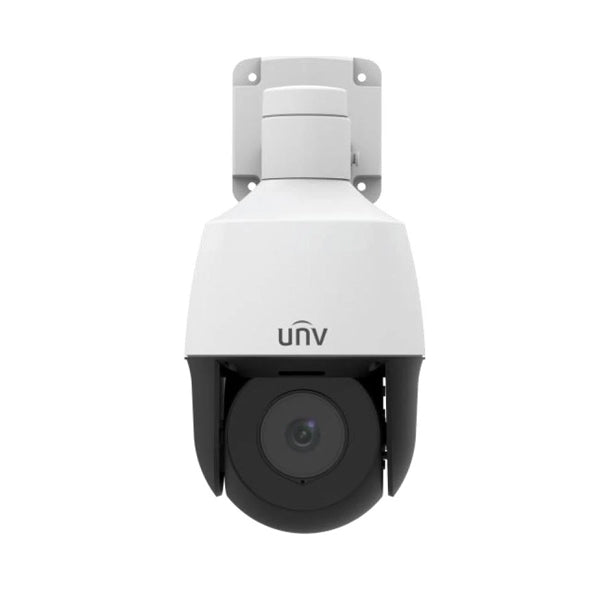

UNV 2MP NDAA-Compliant LightHunter IR Mini PTZ Dome IP Security Camera (IPC6312LR-AX4-VG)

|

SKU# 3412

Order within to ship
$369.00
$369.00
Login for better price
  • Compact outdoor mini PTZ
  • Auto-tracking
  • Smart human body detection
  • LightHunter illumination
  • NDAA-compliance
  • Smart IR , up to 164 ft (50m) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Built-in microphone & speaker
  • Triple streams
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Support PoE power supply
  • Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)
  • Wide voltage range of ±25%
  • IP66 weatherproof rating

You may want these accessories for this product

UNV Pendant Mount for Mini PTZ Cam...
$16.00

UNV Corner Bracket Mount for Bulle...
$26.00

UNV Pole Mount Adapter for Fixed L...
$18.00

UNV Waterproof Cable Joint (TR-A01...
$6.00

UNV Cable Junction Box for Bullet ...
$32.99

IPC672LR-AX4DUPK

IP Security Camera

2MP

HD resolution

2.8-12mm

Motorized Varifocal Lens

IP66

Weatherproof Rating

Up to 165ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics

Enjoy the power of a PTZ in a light and compact body. Uniview's outdoor mini PTZ may look small, but there's a lot of features and functionality packed into this camera housing. Most outdoor PTZ cameras are large and bulky, taking up a ton of space at the installation site and often sticking out like a sore thumb. With this 2MP mini PTZ, you won't have this problem. Now fully NDAA-compliant!

You get all the standard PTZ functions, like a 345° pan, a 90° tilt, and a 4x optical zoom. Enjoy up to 256 pan-and-tilt presets, which you cycle through with up to 16 routes. This camera also has auto-tracking, meaning it will automatically pan and zoom when it detects motion. Smart human body detection allows you to set up motion-based recording without a ton of false alarms. Additional specs include a built-in mic and speaker for two-way audio, IP66 weatherproof rating, true Wide Dynamic Range up to 120 dB, a slot for a MicroSD card, and much more.

This PTZ is powered with Uniview's LightHunter technology. With a minimum illumination of 0.001 lux and a wide aperture of F 1.6, this camera can see clearer in low-light scenarios than your standard camera. This, coupled with the 2D and 3D digital noise reduction, will ensure a clean and beautiful image in many different circumstances. Once the sun sets, you will still be able to see clearly with the powerful and smart infrared LEDs. Enjoy an IR range up to 164 feet.

Bring Uniview's 2MP Mini PTZ into your surveillance system today!

PTZ Features

PTZ Features

This camera features a 345° pan, a 90° tilt, and a 4x optical zoom, allowing for an ultra-wide surveillance coverage. Set up to 256 pan and tilt presets, which you can call at the push of a button. Automatically switch between these presets with up to 16 routes.

Auto-Tracking

Auto-Tracking

Keep an eye on potential intruders, even if they move out of your camera's field of view. This camera will automatically move the lens when it detects a moving object or person, following them wherever they go.

Smart Human Body Detection

Smart Human Body Detection

Eliminate false alarms with Uniview's smart human body detection! With this intelligent event activated, your camera will only trigger an alarm or a recording when it detects a human body. Birds flying past the camera, shadows shifting across your scene, and dust floating near the lens won't cause the alarm to trigger.

Characteristics

Enjoy the power of a PTZ in a light and compact body. Uniview's outdoor mini PTZ may look small, but there's a lot of features and functionality packed into this camera housing. Most outdoor PTZ cameras are large and bulky, taking up a ton of space at the installation site and often sticking out like a sore thumb. With this 2MP mini PTZ, you won't have this problem. Now fully NDAA-compliant!

You get all the standard PTZ functions, like a 345° pan, a 90° tilt, and a 4x optical zoom. Enjoy up to 256 pan-and-tilt presets, which you cycle through with up to 16 routes. This camera also has auto-tracking, meaning it will automatically pan and zoom when it detects motion. Smart human body detection allows you to set up motion-based recording without a ton of false alarms. Additional specs include a built-in mic and speaker for two-way audio, IP66 weatherproof rating, true Wide Dynamic Range up to 120 dB, a slot for a MicroSD card, and much more.

This PTZ is powered with Uniview's LightHunter technology. With a minimum illumination of 0.001 lux and a wide aperture of F 1.6, this camera can see clearer in low-light scenarios than your standard camera. This, coupled with the 2D and 3D digital noise reduction, will ensure a clean and beautiful image in many different circumstances. Once the sun sets, you will still be able to see clearly with the powerful and smart infrared LEDs. Enjoy an IR range up to 164 feet.

Bring Uniview's 2MP Mini PTZ into your surveillance system today!

PTZ Features

PTZ Features

This camera features a 345° pan, a 90° tilt, and a 4x optical zoom, allowing for an ultra-wide surveillance coverage. Set up to 256 pan and tilt presets, which you can call at the push of a button. Automatically switch between these presets with up to 16 routes.

Auto-Tracking

Auto-Tracking

Keep an eye on potential intruders, even if they move out of your camera's field of view. This camera will automatically move the lens when it detects a moving object or person, following them wherever they go.

Smart Human Body Detection

Smart Human Body Detection

Eliminate false alarms with Uniview's smart human body detection! With this intelligent event activated, your camera will only trigger an alarm or a recording when it detects a human body. Birds flying past the camera, shadows shifting across your scene, and dust floating near the lens won't cause the alarm to trigger.

2MP HD RESOLUTION

The IPC672LR-AX4DUPK captures video up to a resolution of 2MP @ 30 FPS, which is 1920 x 1080 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 2MP, your going to get a crisper, cleaner, and more detailed image.

2.8-12mm Motorized Varifocal Lens

The IPC672LR-AX4DUPK has a Motorized Varifocal Lens, ranging from 32.5°~95.7°. This means you can easily and quickly adjust the zoom to your liking directly from the camera's interface.

The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle field of view.

2-Way Audio

The IPC672LR-AX4DUPK has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP66 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 66. This means the camera is completely protected from dust and other solid particles (the first six). It can also withstand powerful streams of water jets from any direction (the second six).

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

Up to 165ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 165ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview

The IPC672LR-AX4DUPK is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.


Plug & play

If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.

Related Videos


SPECIFICATION Download PDF
Camera Type IP
Form Factor PTZ
Resolution 2MP
Max Resolution 1920 x 1080
Frames Per Second 30 FPS
Image Sensor 1/2.8" Progressive Scan CMOS
Lens Type Motorized Varifocal Lens
Focal Length 2.8-12mm
Field of View 32.5°~95.7°
Illumination Infrared
IR Range Up to 165ft
Video Compression Ultra H.265|H.265|H.264
Weatherproof Rating IP66
Audio 2-Way Audio
Onvif Compatible Yes
Intelligent Events Cross Line Detection|Area Entrance Detection|Area Exit Detection|Intrusion Detection|Face Detection|People Counting|Crowd Density Monitoring|Auto Tracking|Attribute Collection
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption ≤ 16W
Operating Temperature -4°F ~ +140°F
Weight ~1.92lbs
