Uniview by Uniview

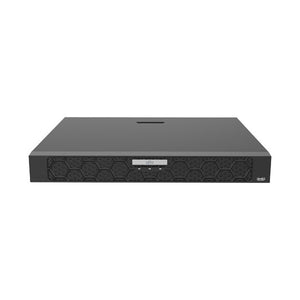

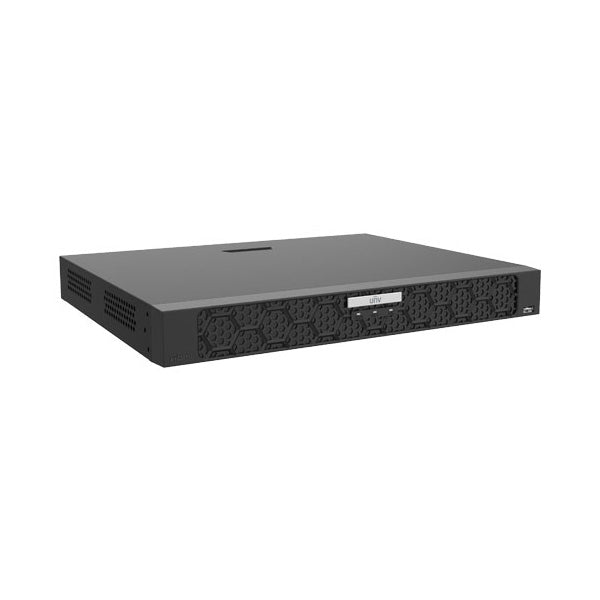

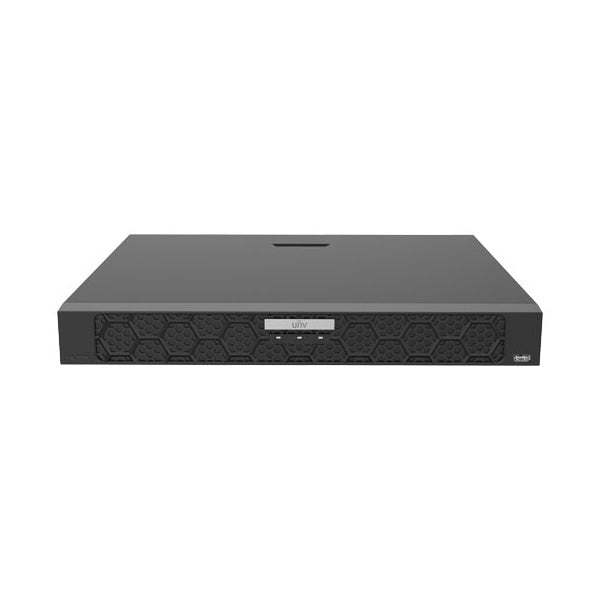

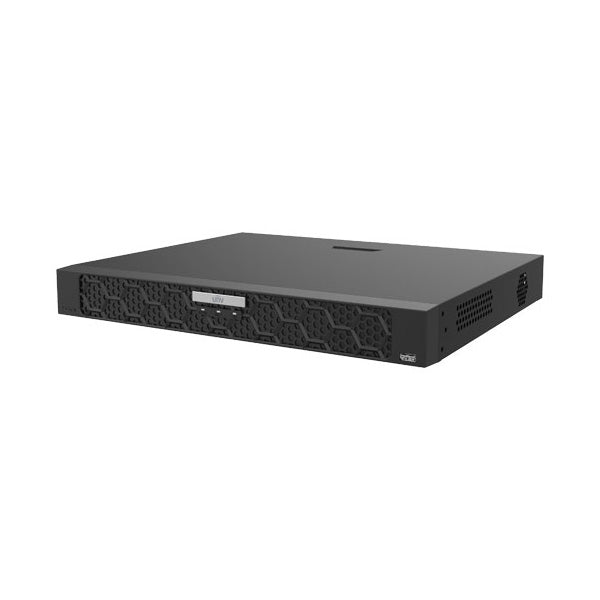

UNV 16-Channel 16MP UltraHD NDAA Compliant PoE NVR with 2 SATA HDD Bays (NVR502-16B-P16)

SKU# 3785

Order within to ship
$1,039.00
$1,039.00
  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

NVR502-16B-P16

Recorder

16MP

Up to 16MP Resolution

2 SATA HDD

Up to 10TB each

16 POE Ports

Easy Plug-and-Play

3 Year Warranty

Warranty Information

Characteristics
  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Characteristics
  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Video recorders are the heart of your cctv system. With the NVR502-16B-P16 you can be sure that your security cameras are in good hands. This IP video recorder is perfect for medium-large installations with up to 16 security cameras.

The NVR502-16B-P16 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Easy Plug-and-Play Interface

Connect up to 16 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.

This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!

Recording Schedules

If you want 24/7 video recording, the NVR502-16B-P16 NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 2 Hard Drive/s, Up to 10TB each.

You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Local & Remote Viewing

This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.


SPECIFICATION
IP Channels 16ch
Max Resolution 16MP
Max Incoming Bandwidth 320Mbps
Max Outgoing Bandwidth 160Mbps
Video Compression Ultra H.265|H.265|H.264
Hard Drive Slots 2
Hard Drive Capacity Up to 10TB each
Synchronus Playback 16ch
Audio I/O 1ch / 1ch
Alarm I/O 8ch / 2ch
Onvif Compatible Yes
Power Supply 100-240VAC
Power Consumption ≤ 20W (without HDD)
Operating Temperature -10°C~+ 55°C (+14°F~+131°F)
Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Weight ≤ 2.6Kg (5.73lb)
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
