Uniview by Uniview

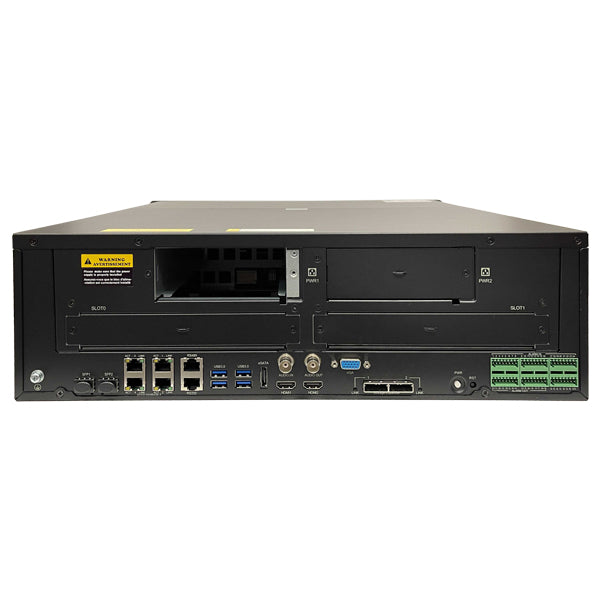

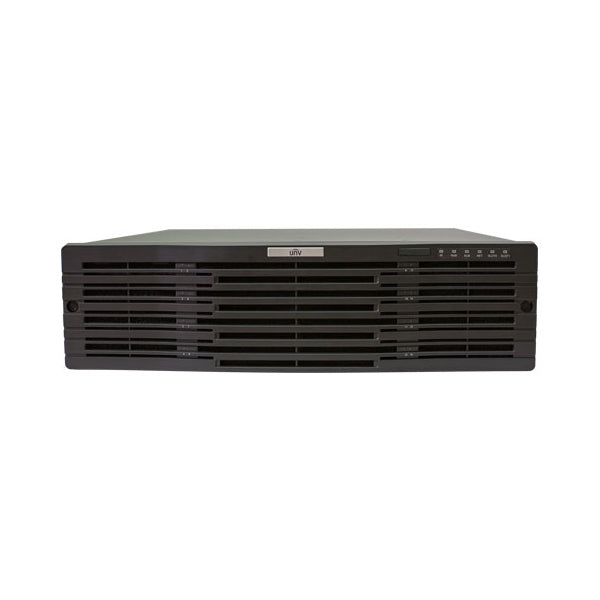

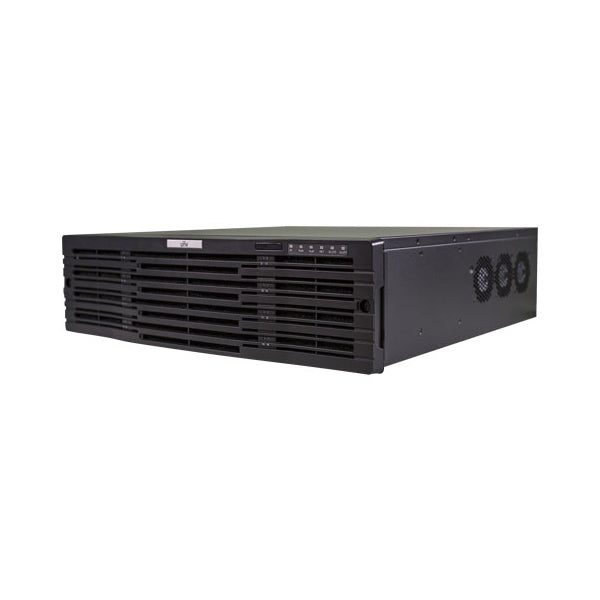

UNV 128 Channel NDAA Compliant 12MP NVR with 16 SATA HDD Bays (NVR516-128)

Translation missing: en.products.product.sku: SKU# 3179

Order within to ship
Regular price
$10,559.00
Sale price
$10,559.00
Regular price
Login for better price
  • Supports Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Supports 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Supports HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare

Customers who bought this product also bought

RJ45 + BNC Cable Connecti...

$12.99

Rack rails for 128 channe...

$65.00

NVR516-128

Recorder

12MP

Up to 12MP Resolution

16 SATA HDD

Up to 10TB each

5 Year Warranty

Warranty Information

Characteristics
  • Supports Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Supports 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Supports HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare
Characteristics
  • Supports Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Supports 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Supports HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare
Video recorders are the heart of your cctv system. With the NVR516-128 you can be sure that your security cameras are in good hands. This IP video recorder is perfect for larger installations with up to 128 security cameras.

The NVR516-128 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Please note, this recorder does not have an integrated PoE switch. Click here to shop external PoE switches.

Recording Schedules

If you want 24/7 video recording, the NVR516-128 NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 16 Hard Drive/s, Up to 10TB each.

You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Local & Remote Viewing

This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.

Related Videos


SPECIFICATION Download PDF
IP Channels 128ch
Max Resolution 12MP
Max Incoming Bandwidth 512Mbps
Max Outgoing Bandwidth 384Mbps
Video Compression Ultra H.265|H.265|H.264
Hard Drive Slots 16
Hard Drive Capacity Up to 10TB each
Synchronus Playback 16ch
Audio I/O 1ch / 1ch
Alarm I/O 24ch / 8ch
Onvif Compatible Yes
Power Supply 100-240VAC
Operating Temperature 14°F ~ 131°F
Dimensions 18.8 x 19.0 x 5.1in
Weight ~22.05lbs
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
