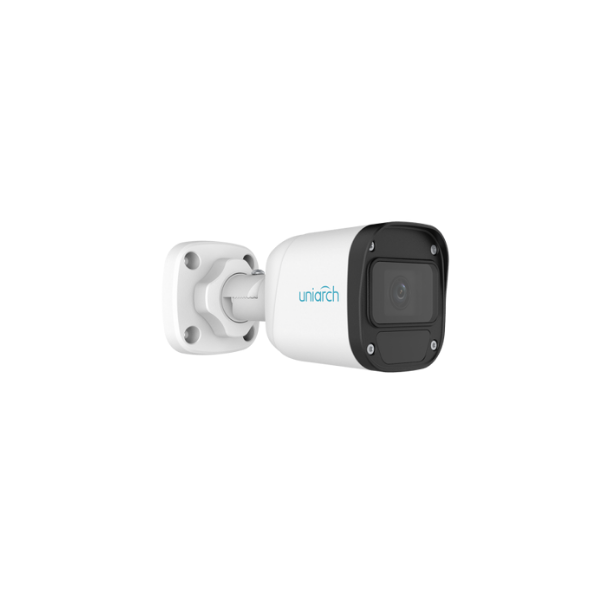

Uniarch by Uniview 4MP Mini Fixed Lens NDAA-Compliant Network Camera (IPC-B124-APF28)
Translation missing: en.products.product.sku: SKU# 3503
Order within to ship- Regular price
- $153.00
- Sale price
- $153.00
- Regular price
-
Couldn't load pickup availability
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
You may want these accessories for this product
UNV Junction Box for Fixed Lens B...
UNV Pole Mount Adapter for Fixed L...
UNV Waterproof Cable Joint (TR-A01...
IPC-B124-APF28
IP Security Camera
4MP
HD resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range
1 Year Warranty
Warranty Information
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
4MP HD RESOLUTION
The IPC-B124-APF28 captures video up to a resolution of 4MP @ 20 FPS, which is 2560 x 1440 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.
2.8mm Fixed Lens
The IPC-B124-APF28 has a
2.8mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The IPC-B124-APF28 has a horizontal field of view of
107.5°.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The IPC-B124-APF28 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
Up to 100ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniarch
Plug & play
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 4MP | |
| Max Resolution | 2560 x 1440 | |
| Frames Per Second | 20 FPS | |
| Image Sensor | 1/3", progressive scan, CMOS | |
| Lens Type | Fixed Lens | |
| Focal Length | 2.8mm | |
| Field of View | 107.5° | |
| Illumination | Infrared | |
| IR Range | Up to 100ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Weatherproof Rating | IP67 | |
| Audio | Built-in Microphone | |
| Onvif Compatible | Yes | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 3.5W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Weight | 0.17kg (0.37lb) |
