Uniview by Uniview

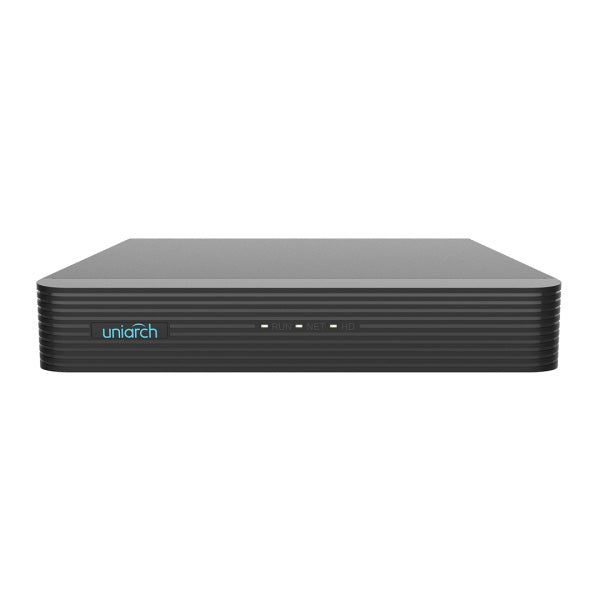

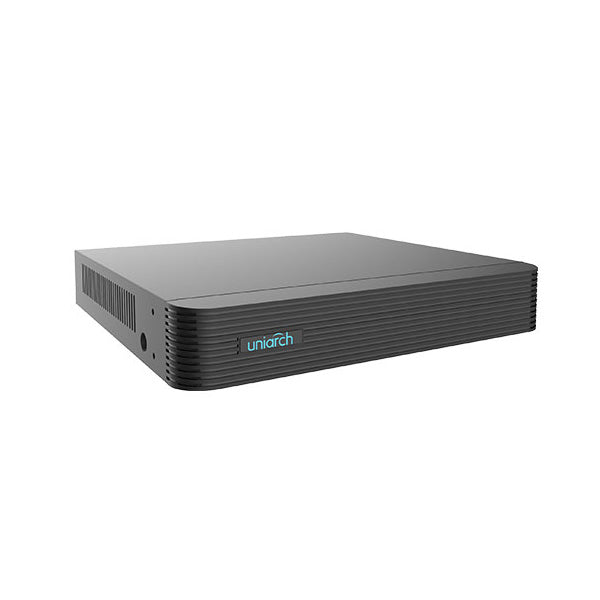

Uniarch by Uniview 4K UltraHD 8MP NDAA-Compliant 4-Channel IP Network Video Recorder with 4 PoE Ports and 1 SATA Hard Drive Bay (NVR-104E2-P4)

Translation missing: en.products.product.sku: SKU# 3541

Order within to ship
Regular price
$215.00
Sale price
$215.00
Regular price
  • Supports Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K UltraHD 8MP resolution recording
  • 1 SATA HDD slot up to 6TB
  • Supports cloud upgrade

You may want these accessories for this product

19" Metal Server Rack Shelf

$40.00

NVR-104E2-P4

Recorder

4K Ultra HD

Up to 4K Ultra HD Resolution

1 SATA HDD

Up to 6TB each

4 POE Ports

Easy Plug-and-Play

Characteristics
  • Supports Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K UltraHD 8MP resolution recording
  • 1 SATA HDD slot up to 6TB
  • Supports cloud upgrade
Characteristics
  • Supports Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K UltraHD 8MP resolution recording
  • 1 SATA HDD slot up to 6TB
  • Supports cloud upgrade
Video recorders are the heart of your cctv system. With the NVR-104E2-P4 you can be sure that your security cameras are in good hands. This IP video recorder is perfect for small installations with up to 4 security cameras.

The NVR-104E2-P4 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Easy Plug-and-Play Interface

Connect up to 4 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.

This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!

Recording Schedules

If you want 24/7 video recording, the NVR-104E2-P4 NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 1 Hard Drive/s, Up to 6TB each.

You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Local & Remote Viewing

This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.


SPECIFICATION Download PDF
IP Channels 4ch
Max Resolution 4K Ultra HD
Max Incoming Bandwidth 40Mbps
Max Outgoing Bandwidth 50Mbps
Video Compression Ultra H.265|H.265|H.264
Hard Drive Slots 1
Hard Drive Capacity Up to 6TB each
Synchronus Playback 4ch
Audio I/O 0ch / 1ch
Onvif Compatible Yes
Power Supply DC48V
Power Consumption ≤9 W (without HDD)
Operating Temperature +14°F ~ +131°F (-10°C ~ + 55°C)
Dimensions 10.0" × 8.5"×1.7" (255mm ×215mm× 42mm)
Weight 2.65 lb (≤1.2kg)
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
