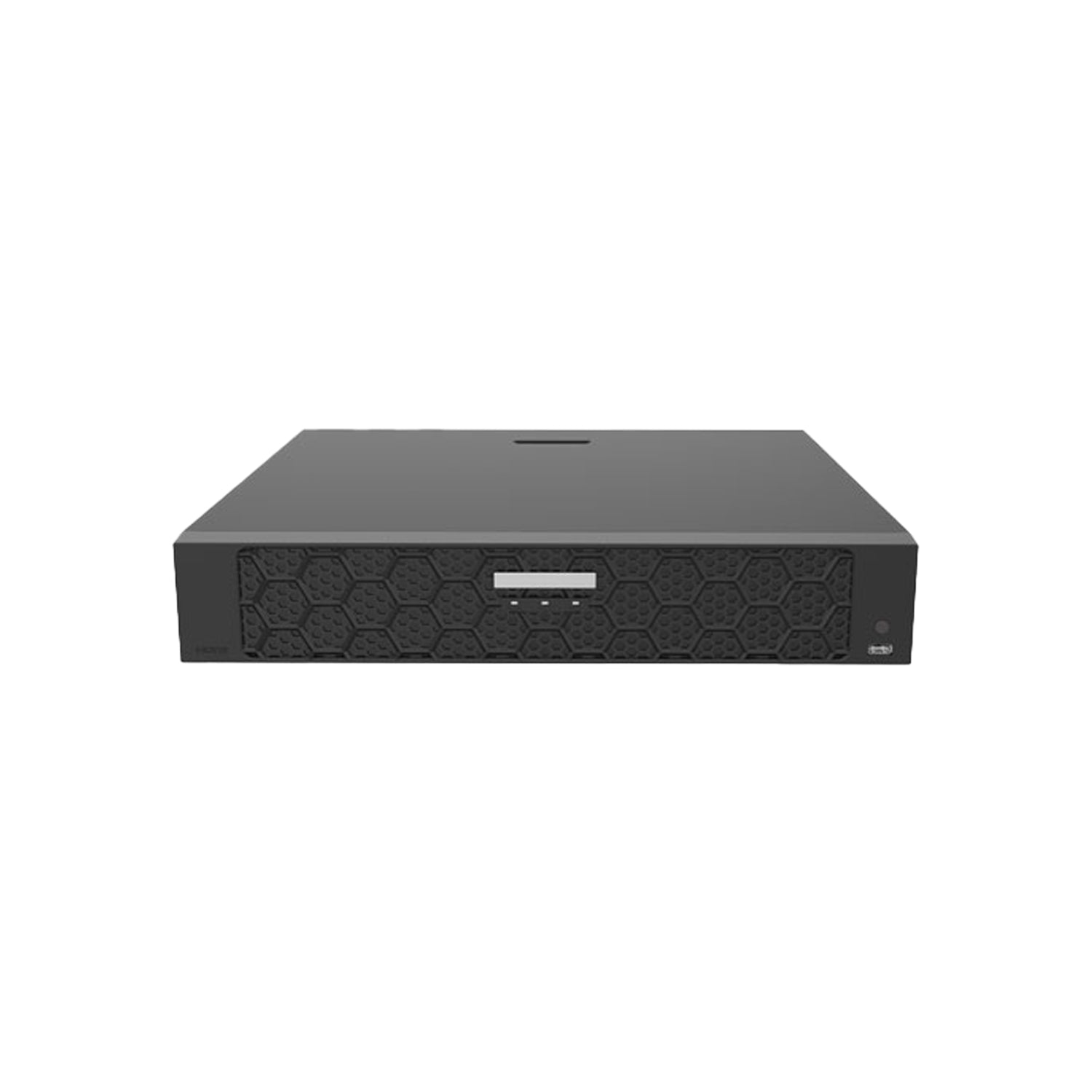

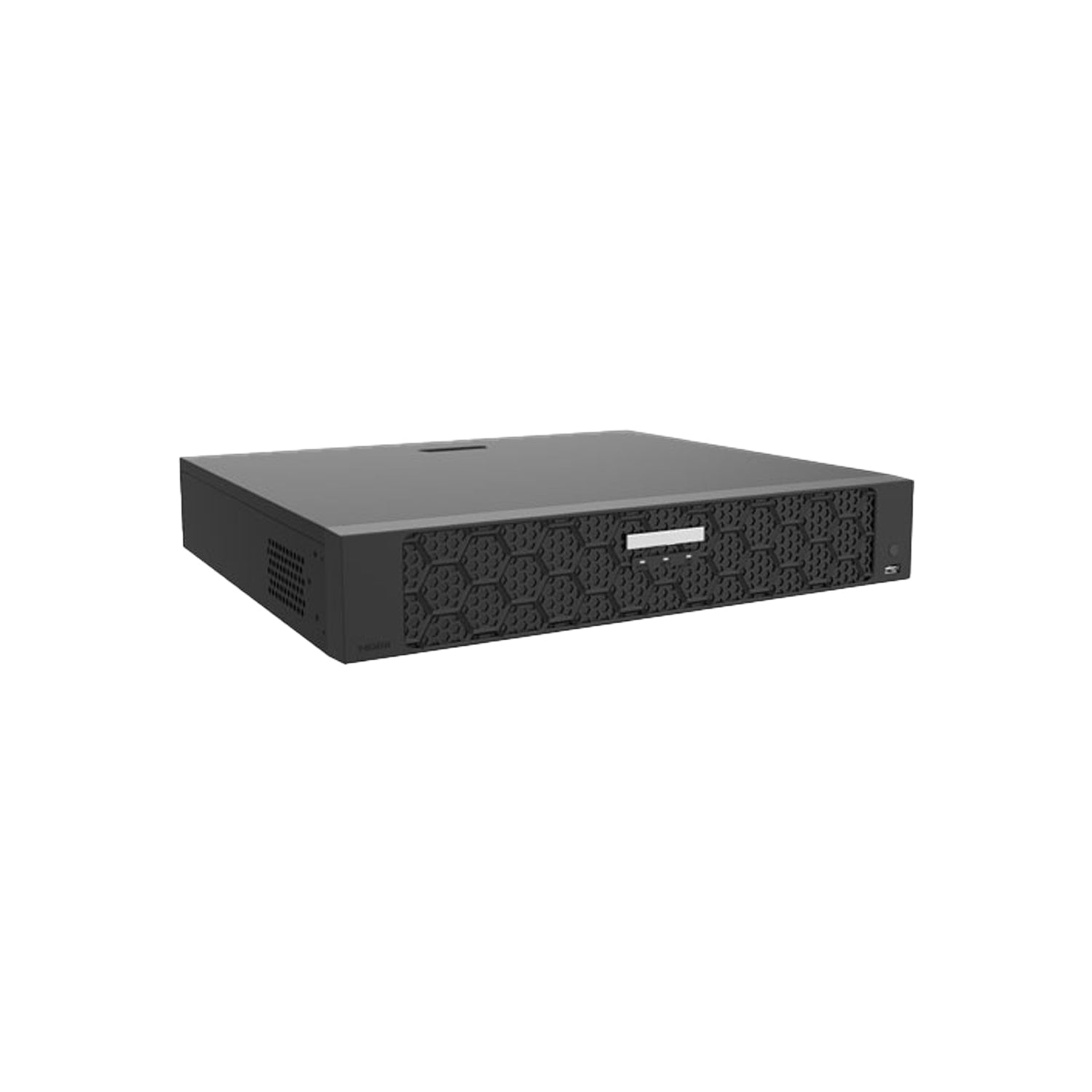

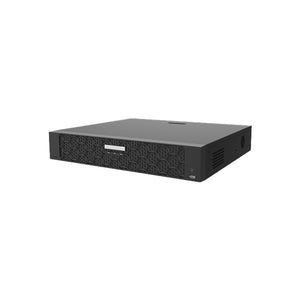

32-Channel 16MP UltraHD NDAA Compliant PoE NVR with 16 PoE Ports and 4 SATA HDD Bays (U2-NVRB-32)
Translation missing: en.products.product.sku: SKU# 3784NB
Order within to ship- Regular price
- $1,559.00
Couldn't load pickup availability
Choose a version
Choose between the Retail and Blank version of this product.
- UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
- UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.
U2-NVRB-32
Recorder
16MP
Up to 16MP Resolution
4 SATA HDD
Up to 16TB each
16 POE Ports
Easy Plug-and-Play
3 Year Warranty
Warranty Information
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
The U2-NVRB-32 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

Easy Plug-and-Play Interface
Connect up to 16 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.
This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!

Recording Schedules
If you want 24/7 video recording, the U2-NVRB-32 NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 4 Hard Drive/s, Up to 16TB each.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.



SPECIFICATION | Download PDF | |
---|---|---|
IP Channels | 32ch | |
Max Resolution | 16MP | |
Max Incoming Bandwidth | 320Mbps | |
Max Outgoing Bandwidth | 160Mbps | |
Video Compression | Ultra H.265|H.265|H.264 | |
Hard Drive Slots | 4 | |
Hard Drive Capacity | Up to 16TB each | |
Synchronus Playback | 16ch | |
Audio I/O | 1ch / 1ch | |
Alarm I/O | 16ch / 4ch | |
Onvif Compatible | Yes | |
Power Supply | DC12V | |
Power Consumption | ≤ 20W (without HDD) | |
Operating Temperature | -10°C~+ 55°C (+14°F~+131°F) |
