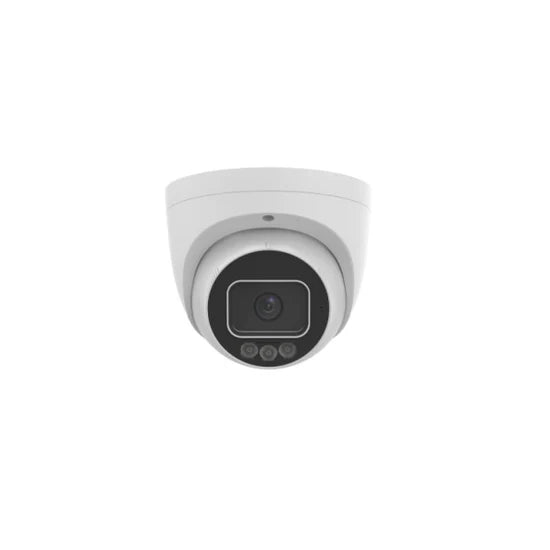

Tri-Guard 2.0 8MP 4K UltraHD Red/Blue Active Deterrence Lights, White Light, and IR LED Turret IP Security Camera with a 2.8mm Lens and Two-Way Audio (U1-8MP-TG2T1)

|

Translation missing: en.products.product.sku: SKU# 3778NB

Order within to ship
Regular price
$529.00
Sale price
$529.00
Regular price
$659.00
Please note, 60-Day Returns are voided if you are enrolled in our branding program and will be branding this product with your company logo.
  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)(Only WDR)
  • 130dB true WDR technology enables clear image in strong light scene
  • Support red & blue warning light
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
  • Smart IR, up to 30m (98.4 ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection

Choose a version

Choose between the Retail and Blank version of this product.

  • UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
  • UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.

You may want these accessories for this product

UNV 3-inch Fixed Dome Mount (TR-WM...

$27.00

UNV Wall Mount W/ Junction Box for...

$45.00

UNV Junction Box for Fixed Lens & ...

$18.00

UNV Pole Mount Adapter (TR-UP06-IN)

$17.00

UNV Fixed Dome Indoor Pendant Moun...

$15.00

UNV 400mm Extender for PTZ Dome Pe...

$17.00

UNV Waterproof Cable Joint (TR-A01...

$6.00

U1-8MP-TG2T1

IP Security Camera

4K

Ultra HD resolution

2.8mm

Fixed Lens

IP67

Weatherproof Rating

Up to 100ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics

Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.

  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)(Only WDR)
  • 130dB true WDR technology enables clear image in strong light scene
  • Support red & blue warning light
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
  • Smart IR, up to 30m (98.4 ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
Characteristics

Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.

  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)(Only WDR)
  • 130dB true WDR technology enables clear image in strong light scene
  • Support red & blue warning light
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
  • Smart IR, up to 30m (98.4 ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection

4K HD RESOLUTION

The U1-8MP-TG2T1 captures video up to a resolution of 4K @ 30 FPS, which is 3840 x 2160 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4K, your going to get a crisper, cleaner, and more detailed image.

2.8mm Fixed Lens

The U1-8MP-TG2T1 has a 2.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The U1-8MP-TG2T1 has a horizontal field of view of 106.5°.

24/7 Color Illumination

Say goodbye to low-contrast black-and-white surveillance footage. The U1-8MP-TG2T1 supports onboard floodlights that allow the camera to capture beautiful and crisp color images 24/7. Not only does this look great, but it also provides clearer and more reliable footage than your standard IR camera.

Active Deterrence

The U1-8MP-TG2T1 supports active deterrence features using onboard floodlights and speakers to draw attention to itself with visual and audible warnings. With this feature, you can quickly let any potential trespassers know that they're being recorded anytime an intelligent event is tripped. This is a great way to add an extra layer of security to your surveillance system.

Artificial Intelligence

With artificial intelligence, the U1-8MP-TG2T1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

2-Way Audio

The U1-8MP-TG2T1 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

Up to 100ft NIGHT VISION IR RANGE

When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview NB

The U1-8MP-TG2T1 is part of the Uniview NB line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.


Plug & play

If you're creating a new system out of our Uniview NB cameras, set up is insanely easy with our Uniview NB line of POE NVRs. Simply plug the camera into the back of the Uniview NB NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION
Camera Type IP
Form Factor Turret
Resolution 4K
Max Resolution 3840 x 2160
Frames Per Second 30 FPS
Image Sensor 1/2.8", 8MP, Progressive Scan, CMOS
Lens Type Fixed Lens
Focal Length 2.8mm
Field of View 106.5°
Illumination Infrared or Color Mode
IR Range Up to 100ft
Video Compression Ultra H.265|H.265|H.264
Max Video Bitrate 16Mbps
Weatherproof Rating IP67
Audio 2-Way Audio
Onvif Compatible Yes
Active Deterrence Lights & Sounds
Artificial Intelligence Yes
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption 10W
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Weight 1.53lbs
