Uniview NB by Uniview NB

8MP 4K UltraHD Wide Angle Dual Lens Weatherproof 24/7 Color Bullet IP Security Camera with 2 x 4.0mm Fixed Lenses and 2-Way Audio (U1-8MP-CWL)

Translation missing: en.products.product.sku: SKU# 3772NB

Order within to ship
Regular price
$619.00
Sale price
$619.00
Regular price
$769.00
  • 4K UHD video (5120*1440) @ 20fps
  • The double lens splicing technology is adopted to create a horizontal viewing angle of 180.13° plus or minus 10° depending on your configuration
  • Supports AI powered intelligent events
  • White flood lights ensure 24-hour full-color illumination
  • Built-in speaker and dual mics for crisp and clear audio
  • Supports a MicroSD card up to 256 GB

Choose a version

Choose between the Retail and Blank version of this product.

  • UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
  • UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.

U1-8MP-CWL

IP Security Camera

4K

Ultra HD resolution

4mm

Fixed Lens

3 Year Warranty

Warranty Information

Characteristics

Need to capture a wide horizontal area in your video surveillance system? You could install a PTZ, but then you could only record half of the area at a time. You could install two cameras facing opposite directions, but then you need more money, more labor, more storage space, more NVR channels. Well now there is a third option.

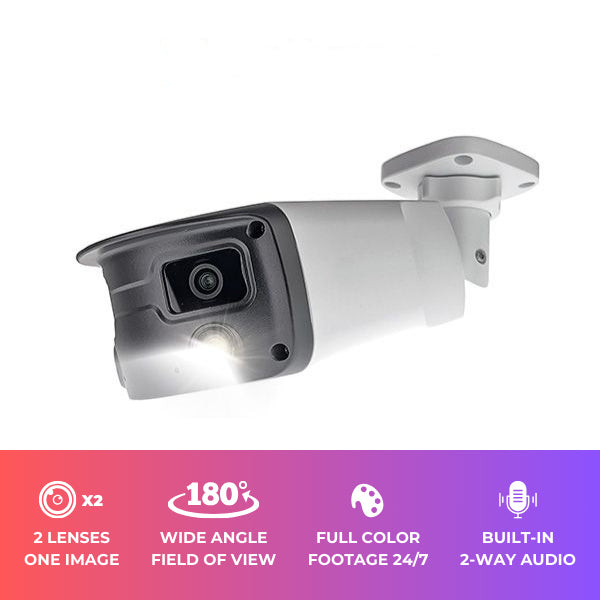

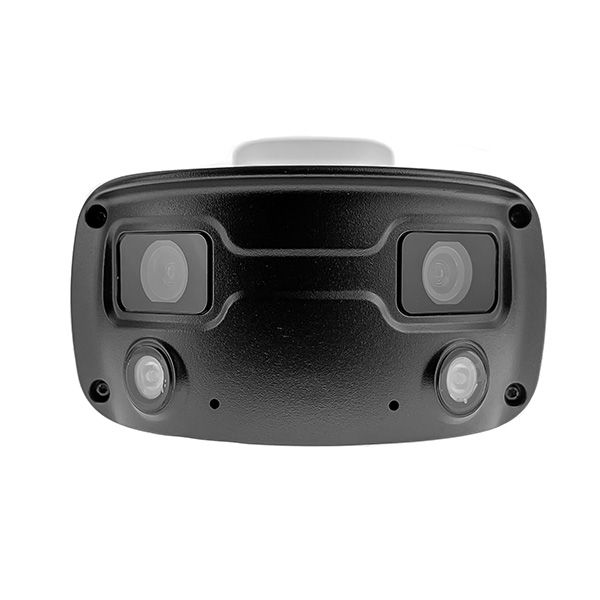

Meet the wide angle bullet with two 4mm 8MP 4K UltraHD lenses with 24/7 color illumination and AI-powered intelligent events! This camera splices images together from two separate lenses to create an ultra-wide 180° horizontal field of view. The splicing is seamless, so you won't even notice a gap. The splicing is also configurable, so you can add or remove 10° if you need to dial it in even more.

180 degree wide field of view

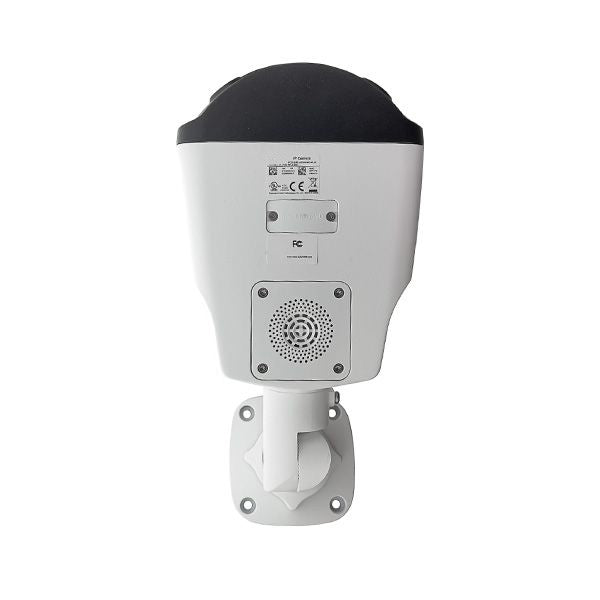

In addition to two lenses, this camera also has two microphones pointing in opposite directions, giving you a clear and immersive audio experience. With a speaker on the bottom of the camera, you also have the ability to use the 2-way audio functionality to communicate with people through your camera.

The two flood lights on the front allow your camera to see in full color 24/7, day or night. Instead of IR lights and black-and-white footage, this camera kicks on its powerful while light at night, maintaining clear and crisp color footage all the time.

This wide angle bullet is able to recognize and detect human bodies. What does this mean for you? It means you can set up recording events or push notifications based only on human motion detection. You don't have to worry about getting false alarms, a million notifications, or wasted storage space. You'll only get notified when your camera detects a human being.

The U1-8MP-CWL is the best camera on the market for wide-angle video surveillance. With an excellent resolution, 24/7 color footage, and human body detection, this ultra wide angle bullet camera will bring you more video surveillance coverage for less.

  • 4K UHD video (5120*1440) @ 20fps
  • The double lens splicing technology is adopted to create a horizontal viewing angle of 180.13° plus or minus 10° depending on your configuration
  • Supports AI powered intelligent events
  • White flood lights ensure 24-hour full-color illumination
  • Built-in speaker and dual mics for crisp and clear audio
  • Supports a MicroSD card up to 256 GB
Characteristics

Need to capture a wide horizontal area in your video surveillance system? You could install a PTZ, but then you could only record half of the area at a time. You could install two cameras facing opposite directions, but then you need more money, more labor, more storage space, more NVR channels. Well now there is a third option.

Meet the wide angle bullet with two 4mm 8MP 4K UltraHD lenses with 24/7 color illumination and AI-powered intelligent events! This camera splices images together from two separate lenses to create an ultra-wide 180° horizontal field of view. The splicing is seamless, so you won't even notice a gap. The splicing is also configurable, so you can add or remove 10° if you need to dial it in even more.

180 degree wide field of view

In addition to two lenses, this camera also has two microphones pointing in opposite directions, giving you a clear and immersive audio experience. With a speaker on the bottom of the camera, you also have the ability to use the 2-way audio functionality to communicate with people through your camera.

The two flood lights on the front allow your camera to see in full color 24/7, day or night. Instead of IR lights and black-and-white footage, this camera kicks on its powerful while light at night, maintaining clear and crisp color footage all the time.

This wide angle bullet is able to recognize and detect human bodies. What does this mean for you? It means you can set up recording events or push notifications based only on human motion detection. You don't have to worry about getting false alarms, a million notifications, or wasted storage space. You'll only get notified when your camera detects a human being.

The U1-8MP-CWL is the best camera on the market for wide-angle video surveillance. With an excellent resolution, 24/7 color footage, and human body detection, this ultra wide angle bullet camera will bring you more video surveillance coverage for less.

  • 4K UHD video (5120*1440) @ 20fps
  • The double lens splicing technology is adopted to create a horizontal viewing angle of 180.13° plus or minus 10° depending on your configuration
  • Supports AI powered intelligent events
  • White flood lights ensure 24-hour full-color illumination
  • Built-in speaker and dual mics for crisp and clear audio
  • Supports a MicroSD card up to 256 GB

4K HD RESOLUTION

The U1-8MP-CWL captures video up to a resolution of 4K @ 20 FPS, which is 5120 x 1440 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4K, your going to get a crisper, cleaner, and more detailed image.

4mm Fixed Lens

The U1-8MP-CWL has a 4mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The U1-8MP-CWL has a horizontal field of view of 180º.

24/7 Color Illumination

Say goodbye to low-contrast black-and-white surveillance footage. The U1-8MP-CWL supports onboard floodlights that allow the camera to capture beautiful and crisp color images 24/7. Not only does this look great, but it also provides clearer and more reliable footage than your standard IR camera.

Artificial Intelligence

With artificial intelligence, the U1-8MP-CWL adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

Plug & play

If you're creating a new system out of our VIVOTEK brandable cameras, set up is insanely easy with our VIVOTEK line of POE NVRs. Simply plug the camera into the back of the VIVOTEK NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as Vast 2 and VIVOcloud.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION
Camera Type IP
Form Factor Bullet
Resolution 4K
Max Resolution 5120 x 1440
Frames Per Second 20 FPS
Image Sensor 1/2.7″, 8MP, Progressive Scan, CMOS
Lens Type Fixed Lens
Focal Length 4mm
Field of View 180º
Illumination Color Mode
Video Compression Ultra H.265|H.265|H.264
Max Video Bitrate 16Mbps
Onvif Compatible No
Artificial Intelligence No
Onboard Storage Up to 256GB
Power Supply DC12V|POE
Power Consumption 13W
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Weight 0.96kg (2.12lb)
Video Compression Ultra H.265|H.265|H.264
Onvif Compatible Yes
Power Supply DC12V|POE
Power Consumption 13W
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Weight 0.96kg (2.12lb)
SOFTWARE
Name Description Version Download
Name Guard Station Unified management for IP Cameras and NVRs. Version v1130.3.12.1 DownloadDownload
Name Guard Tools Tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Version v1103 DownloadDownload
Name Guard Player Media player for local recordings. Version v1111.1.1.0 DownloadDownload
Name Guard Station Unified management for IP Cameras and NVRs. Versionv1113.3.10.1 < DownloadDownload
