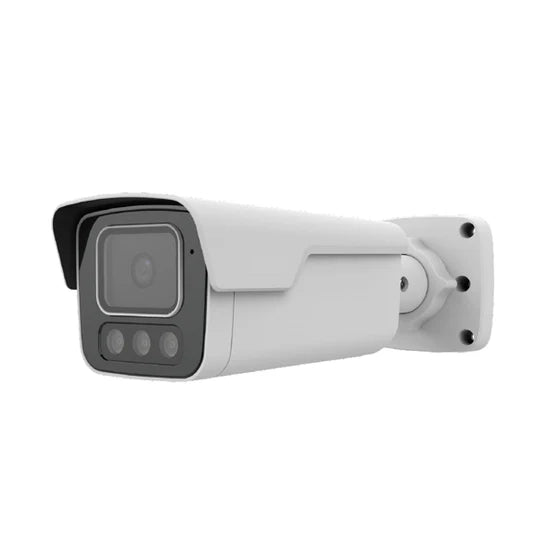

Tri-Guard 2.0 5MP Red/Blue Active Deterrence Lights, White Light, and IR LED Bullet IP Security Camera with a 2.8mm Lens and Two-Way Audio (U1-5MP-TG2B1)
Translation missing: en.products.product.sku: SKU# 3775NB
Order within to ship- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
$569.00
Couldn't load pickup availability
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent face capture
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 40m (131 ft) IR distance
- Supports 256 G Micro SD card
Choose a version
Choose between the Retail and Blank version of this product.
- UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
- UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.
UNV Retail
You may want these accessories for this product

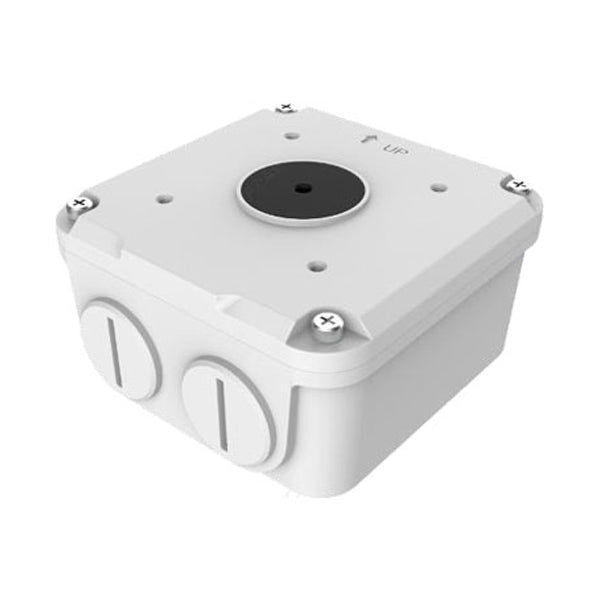

UNV Bullet Camera Junction Box (TR...
UNV Pole Mount Adapter for Fixed L...
UNV Waterproof Cable Joint (TR-A01...
UNV Cable Junction Box for Bullet ...
UNV Corner Bracket Mount for Bulle...
U1-5MP-TG2B1
IP Security Camera
5MP
HD resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 130ft
Night Vision IR Range
3 Year Warranty
Warranty Information
Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent face capture
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 40m (131 ft) IR distance
- Supports 256 G Micro SD card
Enjoy crisp imagery 24/7, either in full color with the white lights or classic black and white with the 100' IR distance. There is also a newly added blue & red deterrence light feature for even better security at night. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta and takes it to the next level.
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent face capture
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 40m (131 ft) IR distance
- Supports 256 G Micro SD card
5MP HD RESOLUTION
The U1-5MP-TG2B1 captures video up to a resolution of 5MP @ 30 FPS, which is 2880 x 1620 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
2.8mm Fixed Lens
The U1-5MP-TG2B1 has a
2.8mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The U1-5MP-TG2B1 has a horizontal field of view of
109°.
Active Deterrence
The U1-5MP-TG2B1 supports active deterrence features using onboard floodlights and speakers to draw attention to itself with visual and audible warnings. With this feature, you can quickly let any potential trespassers know that they're being recorded anytime an intelligent event is tripped. This is a great way to add an extra layer of security to your surveillance system.
Artificial Intelligence
With artificial intelligence, the U1-5MP-TG2B1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
2-Way Audio
The U1-5MP-TG2B1 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
Up to 130ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 130ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Plug & play
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | ||
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 5MP | |
| Max Resolution | 2880 x 1620 | |
| Frames Per Second | 30 FPS | |
| Image Sensor | 1/2.7", 5MP, Progressive Scan, CMOS | |
| Lens Type | Fixed Lens | |
| Focal Length | 2.8mm | |
| Field of View | 109° | |
| Illumination | Infrared | |
| IR Range | Up to 130ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 16Mbps | |
| Weatherproof Rating | IP67 | |
| Audio | 2-Way Audio | |
| Onvif Compatible | Yes | |
| Active Deterrence | Lights & Sounds | |
| Artificial Intelligence | Yes | |
| Onboard Storage | Up to 256GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 10W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) | |
| Weight | 0.97kg (2.14lb) |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Version v1130.3.12.1  |
DownloadDownload |
| Name Guard Tools | Tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Version v1103 |
DownloadDownload |
| Name Guard Player | Media player for local recordings. | Version v1111.1.1.0 |
DownloadDownload |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Versionv1113.3.10.1  < |
DownloadDownload |
