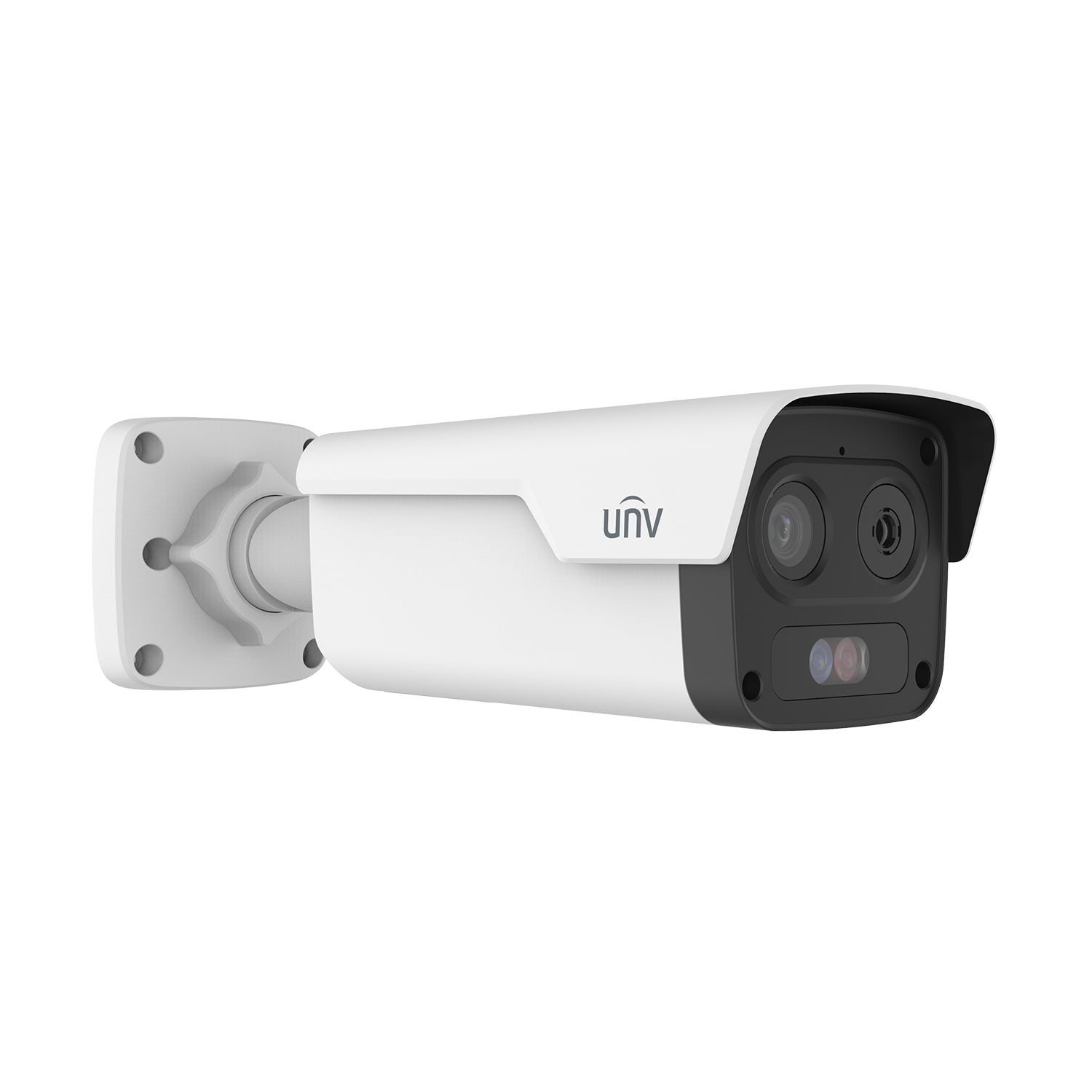

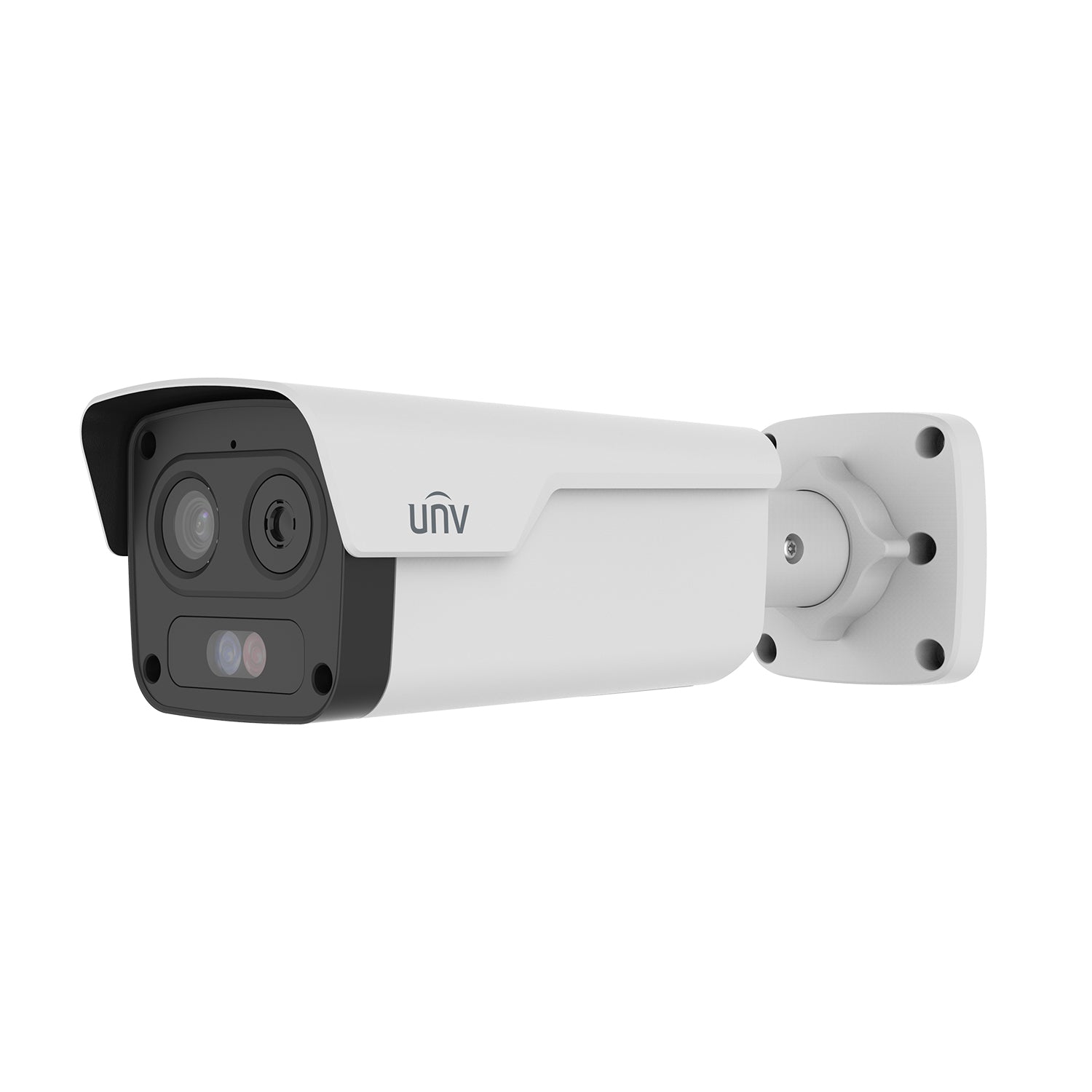

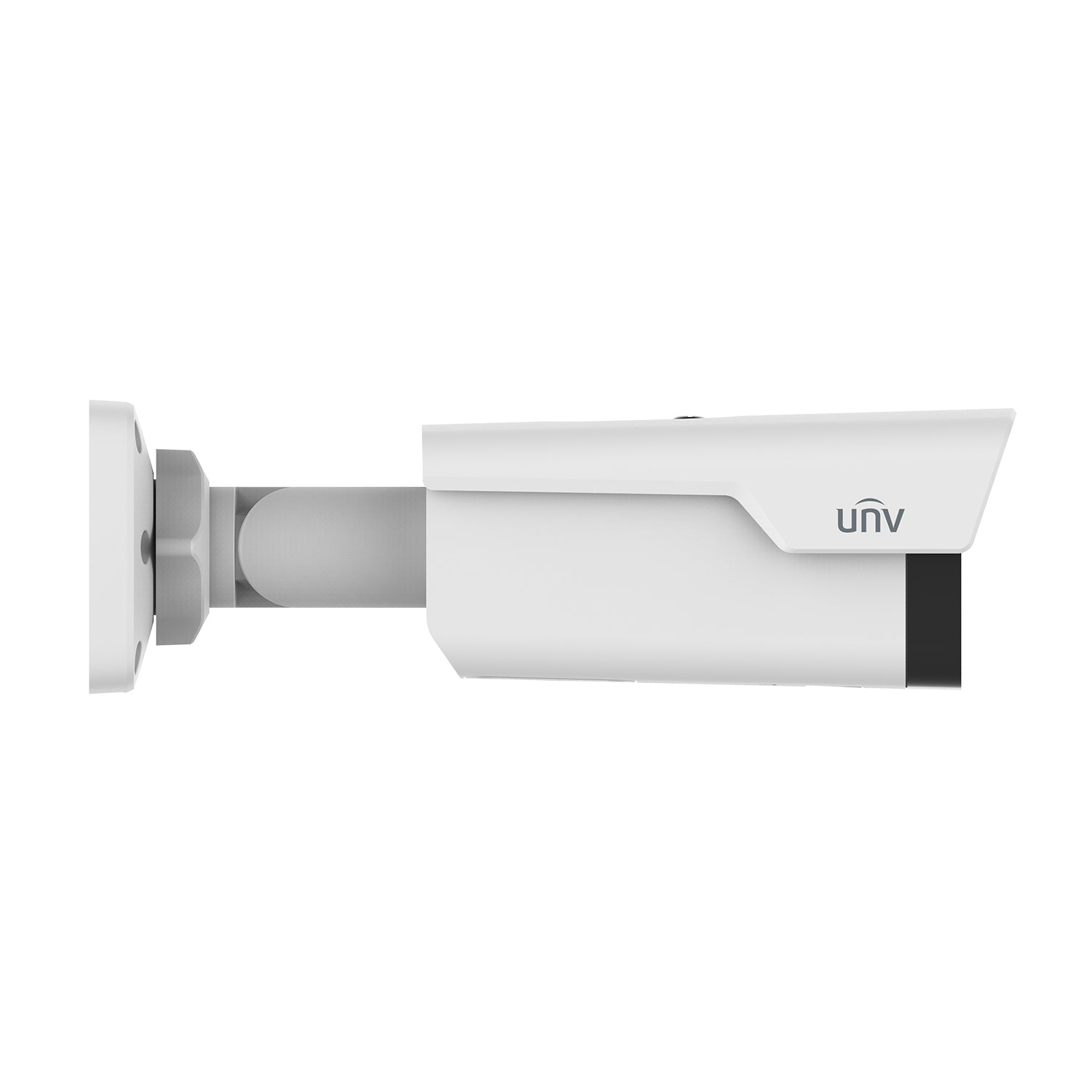

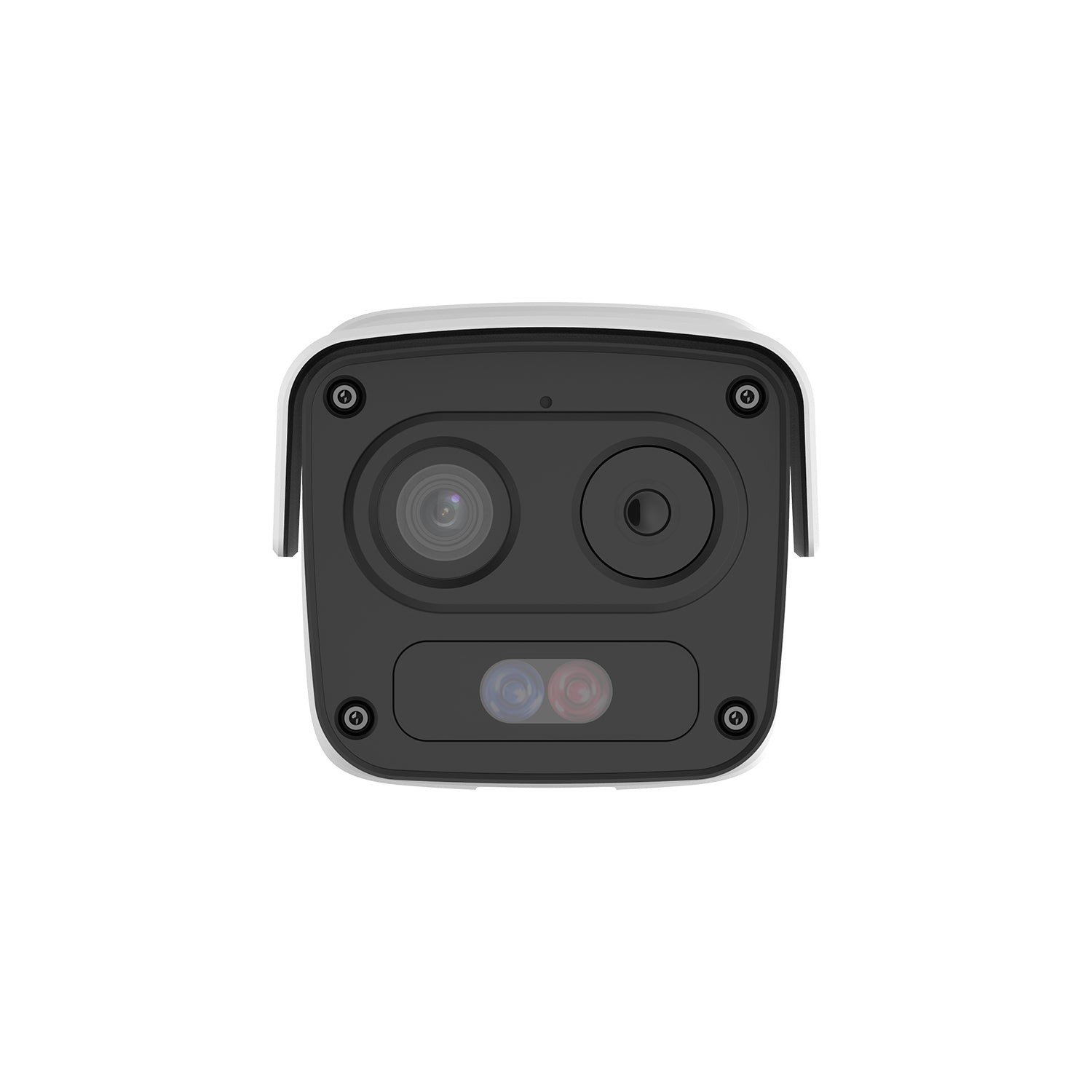

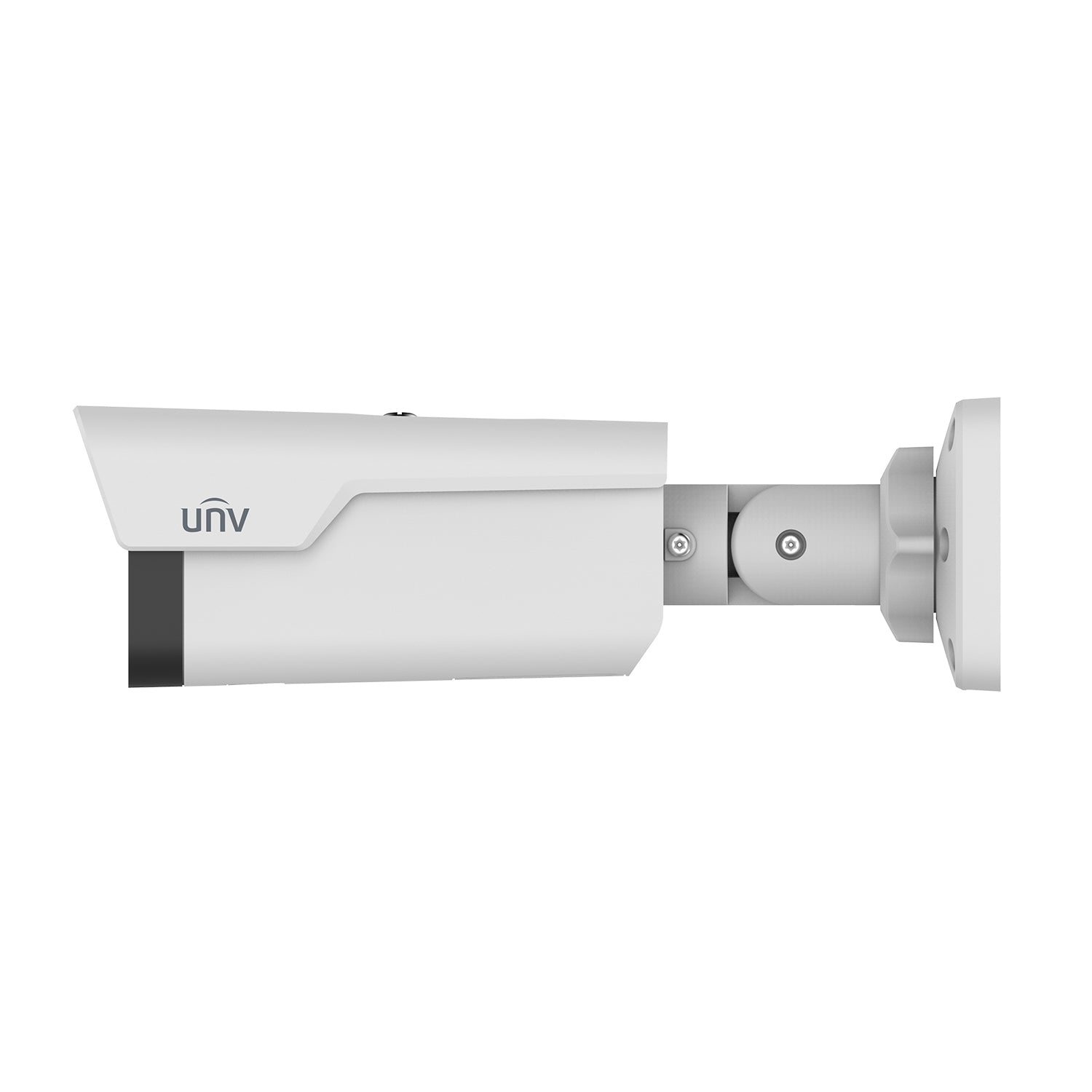

UNV 4MP/960P HD Thermal & Optical Dual-Spectrum Bullet IP Security Camera with Active Deterrence, IR, A.I. Powered Intelligent Events and a 4mm Fixed Lens (TIC2A32SA-F3-4F4AC-I1)
Translation missing: en.products.product.sku: SKU# 3854
Order within to ship- Regular price
- $1,839.00
Couldn't load pickup availability
- Max 2688 x 1520 @30fps in the optical module and Max 960P @30fps in the thermal module
- Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
- Thermal module supports reliable fire detection, smoking detection, and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking which highlights abnormal temperature, and links to alarm
- Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirmation
- Supports picture-in-picture mode, real-time contrast live, more convenient and clear
- Supports audio and light alarm, with red and blue warning lights built-in
- 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
You may want these accessories for this product
UNV Pole Mount Adapter (TR-UP06-IN)
TIC2A32SA-F3-4F4AC-I1
IP Security Camera
4MP
HD resolution
4mm
Fixed Lens
IP67
Weatherproof Rating
Up to 130 ft
Night Vision IR Range
3 Year Warranty
Warranty Information
The UNV 4MP/960P Dual-Spectrum Bullet IP Camera combines thermal and optical imaging for unparalleled surveillance, offering 4MP starlight performance and 960P thermal resolution with smart detection features. It excels at fire and smoke detection, hot/cold spot tracking, and intrusion prevention, making it perfect for high-risk environments. With audio and light alarms, built-in red/blue warning lights, and real-time picture-in-picture mode, it ensures fast responses to threats. Power options include PoE or DC12V, with local storage up to 512GB, all managed through a single IP address for seamless integration.
- Max 2688 x 1520 @30fps in the optical module and Max 960P @30fps in the thermal module
- Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
- 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
- Thermal module supports reliable fire detection, smoking detection, and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking which highlights abnormal temperature, and links to alarm
- Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirmation
- Supports picture-in-picture mode, real-time contrast live, more convenient and clear
- Supports audio and light alarm, with red and blue warning lights built-in
- DC12V±25% or PoE power supply
- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
The UNV 4MP/960P Dual-Spectrum Bullet IP Camera combines thermal and optical imaging for unparalleled surveillance, offering 4MP starlight performance and 960P thermal resolution with smart detection features. It excels at fire and smoke detection, hot/cold spot tracking, and intrusion prevention, making it perfect for high-risk environments. With audio and light alarms, built-in red/blue warning lights, and real-time picture-in-picture mode, it ensures fast responses to threats. Power options include PoE or DC12V, with local storage up to 512GB, all managed through a single IP address for seamless integration.
- Max 2688 x 1520 @30fps in the optical module and Max 960P @30fps in the thermal module
- Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
- 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
- Thermal module supports reliable fire detection, smoking detection, and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking which highlights abnormal temperature, and links to alarm
- Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirmation
- Supports picture-in-picture mode, real-time contrast live, more convenient and clear
- Supports audio and light alarm, with red and blue warning lights built-in
- DC12V±25% or PoE power supply
- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
4MP HD RESOLUTION
The TIC2A32SA-F3-4F4AC-I1 captures video up to a resolution of 4MP @ 30 FPS, which is Optical: 2688 x 1520 @30fps | Thermal: 960P @30fps pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.
4mm Fixed Lens
The TIC2A32SA-F3-4F4AC-I1 has a
4mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The TIC2A32SA-F3-4F4AC-I1 has a horizontal field of view of
.
Active Deterrence
The TIC2A32SA-F3-4F4AC-I1 supports active deterrence features using onboard floodlights and speakers to draw attention to itself with visual and audible warnings. With this feature, you can quickly let any potential trespassers know that they're being recorded anytime an intelligent event is tripped. This is a great way to add an extra layer of security to your surveillance system.
Artificial Intelligence
With artificial intelligence, the TIC2A32SA-F3-4F4AC-I1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
2-Way Audio
The TIC2A32SA-F3-4F4AC-I1 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
Up to 130 ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 130 ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview
The TIC2A32SA-F3-4F4AC-I1 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Bullet | |
| Resolution | 4MP | |
| Max Resolution | Optical: 2688 x 1520 @30fps | Thermal: 960P @30fps | |
| Frames Per Second | 30 FPS | |
| Image Sensor | 1/2.8" CMOS | |
| Lens Type | Fixed Lens | |
| Focal Length | 4mm | |
| Illumination | Infrared | |
| IR Range | Up to 130 ft | |
| Video Compression | Ultra H.265|H.265|H.264|MJPEG | |
| Max Video Bitrate | 128 Kbps ~ 16 Mbps | |
| Weatherproof Rating | IP67 | |
| Audio | 2-Way Audio | |
| Onvif Compatible | Yes | |
| Active Deterrence | Lights & Sounds | |
| Intelligent Events | Line Crossing Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection for Thermal or Optical Channels | Smoke and Fire Detection, Temperature Detection for Thermal Channel Only | |
| Artificial Intelligence | Yes | |
| Onboard Storage | Up to 512GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 12W | |
| Operating Temperature | -40°F ~ 158°F |
