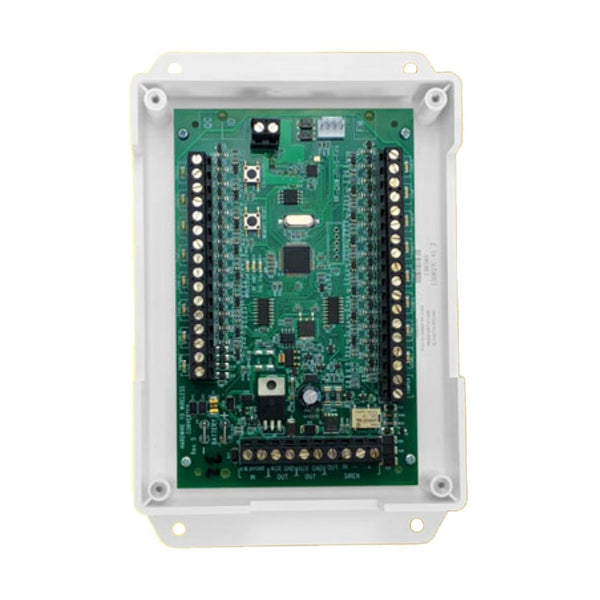

Qolsys IQ Hardwire 16-F Terminal for Hard Wiring Sensors to the IQ Panel 2+ (QS7133-840)
Translation missing: en.products.product.sku: SKU# 3298
Order within to shipCouldn't load pickup availability
-
Small small plastic enclosure designed to be mounted in an existing can
Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
Supports up to ten two wire smoke detectors
LED lighted zones for ease of “learn-in” installation/troubleshooting
EOL supervision using 4.7K Ohm resistors (included) or 1k-10k Ohm depending on Resistor Mode
Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
Charging circuit for back-up battery, fully supervised with power outage recovery
Input Voltage: 16.0VDC Plug-In Transformer
Backup Battery: 12VDC 5AH Max (optional)
Dimensions: 5.5” X 3.5”
Operating Temperature: 32 to 122F (0 to 50C)
Humidity: 95% RH Max
EOL Supervision: 4.7K Ohm fixed or 1k-10k Ohm depending on Resistor Mode
Input Zones: 15 N/O or N/C
Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor® 2W-B, 2WT-B, 2WTA-B
Auxiliary Voltage Output: 12VDC @ 500mA Max
Tamper Zone: Used for case tamper, no resistor
Relay Contact: 60VDC/1A Max drives siren
QS7133-840
1 Year Warranty
Warranty Information
The IQ Hardwire 16-F (Small Enclosure) offers a cost-effective way of integrating hardwired security & smoke detector zones with the IQ Panel 2/2+. It includes a small enclosure designed to be mounted in an existing can, backup battery charging, 500mA of 12volt auxiliary power, an onboard siren relay, built-in status LED’s for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.
-
