Network Switch 2-wire IP Power Supply Unit for NS-2 (HDR-60-SPEC)
Translation missing: en.products.product.sku: SKU# 3985
Order within to shipCouldn't load pickup availability
HDR-60-SPEC
HDR-60-SPEC | 60W 24V DC Ultra-Slim DIN Rail Power Supply
Output: 24V @ 2.5A | Width: 52.5mm (3SU)
The HDR-60-SPEC is an economical, ultra-slim 60W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed with a width of 52.5mm (3SU), which allows for significant space-saving inside cabinets. With its Class II isolation and LPS (Limited Power Source) compliance, it is an ideal solution for household control systems and building automation gadgets.
Key Features
- Space-Saving Design: Ultra-slim 52.5mm (3SU) width fits into tight control panels.
- High Efficiency: Low no-load power consumption (<3.0W) for improved energy economy.
- Adjustable Voltage: DC output voltage can be fine-tuned to compensate for voltage drops.
- Rugged Reliability: Fanless design cooled by free air convection; operates from -30°C to +70°C.
- Visual Status: Built-in LED indicator for instant "Power On" confirmation.
Technical Specifications
| Output Voltage | 24V DC |
| Output Current | 2.5 Amps |
| Max Power | 60 Watts |
| Input Voltage | 85 to 264 VAC (Universal) |
| Safety Protections | Short Circuit, Overload, Over Voltage |
| Certifications | Class II Isolation, LPS (Limited Power Source) |
Protection & Safety
Equipped with Overvoltage Category III protection, this unit is designed to handle transient voltages safely. It meets strict safety standards to prevent damage to your connected equipment due to short circuits or power surges.

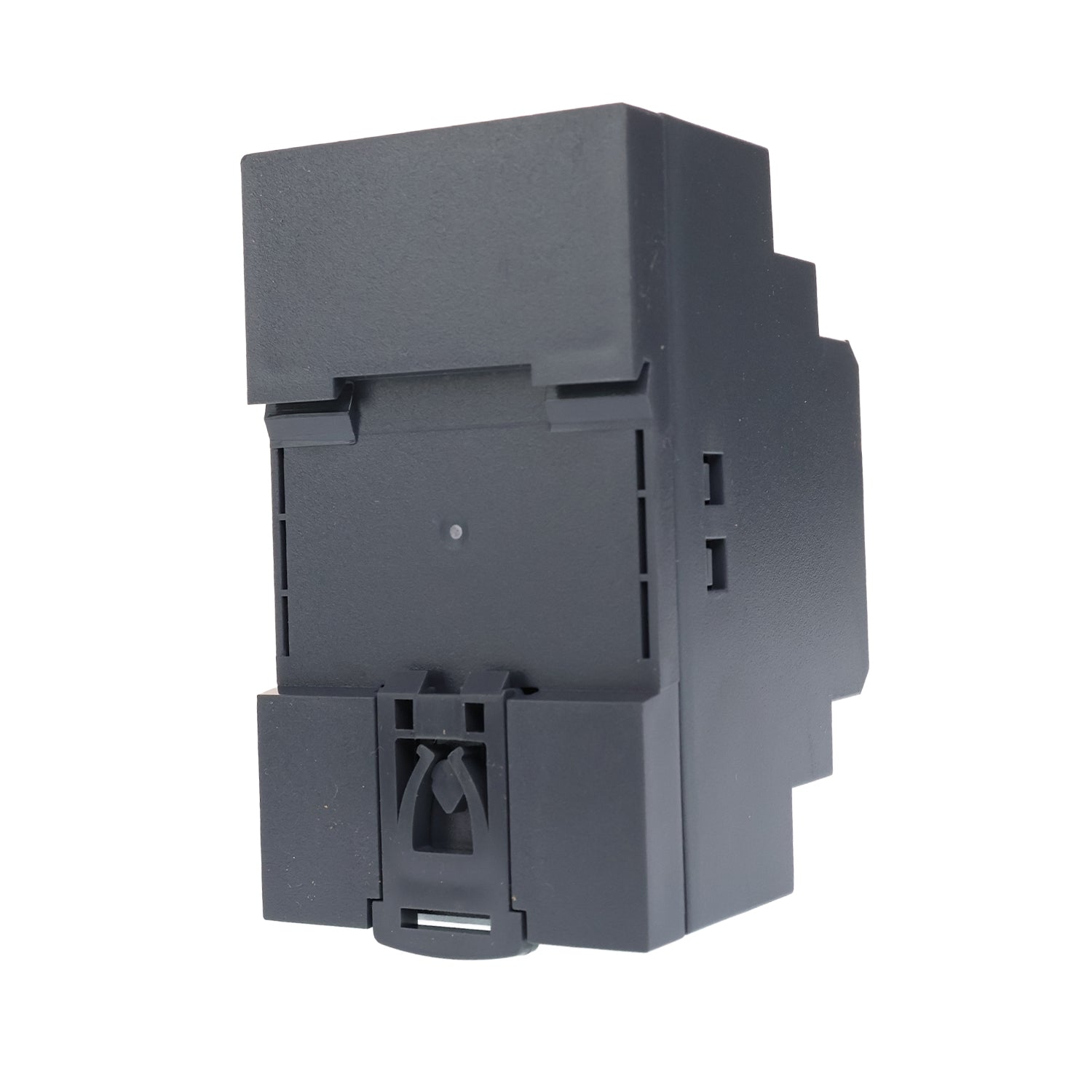

Installation Note: Designed for mounting on standard TS-35/7.5 or TS-35/15 DIN rails. Ensure proper vertical orientation for optimal heat dissipation.
HDR-60-SPEC | 60W 24V DC Ultra-Slim DIN Rail Power Supply
Output: 24V @ 2.5A | Width: 52.5mm (3SU)
The HDR-60-SPEC is an economical, ultra-slim 60W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed with a width of 52.5mm (3SU), which allows for significant space-saving inside cabinets. With its Class II isolation and LPS (Limited Power Source) compliance, it is an ideal solution for household control systems and building automation gadgets.
Key Features
- Space-Saving Design: Ultra-slim 52.5mm (3SU) width fits into tight control panels.
- High Efficiency: Low no-load power consumption (<3.0W) for improved energy economy.
- Adjustable Voltage: DC output voltage can be fine-tuned to compensate for voltage drops.
- Rugged Reliability: Fanless design cooled by free air convection; operates from -30°C to +70°C.
- Visual Status: Built-in LED indicator for instant "Power On" confirmation.
Technical Specifications
| Output Voltage | 24V DC |
| Output Current | 2.5 Amps |
| Max Power | 60 Watts |
| Input Voltage | 85 to 264 VAC (Universal) |
| Safety Protections | Short Circuit, Overload, Over Voltage |
| Certifications | Class II Isolation, LPS (Limited Power Source) |
Protection & Safety
Equipped with Overvoltage Category III protection, this unit is designed to handle transient voltages safely. It meets strict safety standards to prevent damage to your connected equipment due to short circuits or power surges.
Installation Note: Designed for mounting on standard TS-35/7.5 or TS-35/15 DIN rails. Ensure proper vertical orientation for optimal heat dissipation.
