Uniview by Uniview

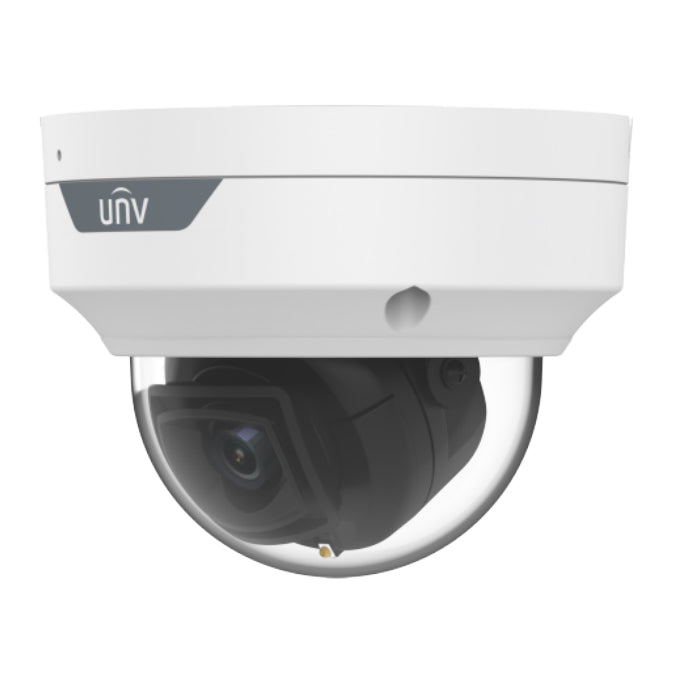

OwlView 4K Wise-ISP Vandal Dome IP Security Camera with a 2.8mm Fixed Lens (IPC3528SR-ADF28KM-WP)

|

Translation missing: en.products.product.sku: SKU# 3864

Order within to ship
Regular price
$559.00
Shipping calculated at checkout.
Login for better price

IPC3528SR-ADF28KM-WP

IP Security Camera

4K

Ultra HD resolution

2.8mm

Fixed Lens

IP67

Weatherproof Rating

Up to 100ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics
  • High quality image with 8MP (4K Ultra HD), 1/1.8"CMOS sensor and F1.0 large aperture lens.
  • 8MP (3840 x 2160) @ 20FPS
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle.
  • ColorHunter with Wise-ISP technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in Mic
  • Supports 512 GB Micro SD card
  • IP67 Weatherproof Protection
  • IK10 Vandal Protection
Characteristics
  • High quality image with 8MP (4K Ultra HD), 1/1.8"CMOS sensor and F1.0 large aperture lens.
  • 8MP (3840 x 2160) @ 20FPS
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle.
  • ColorHunter with Wise-ISP technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in Mic
  • Supports 512 GB Micro SD card
  • IP67 Weatherproof Protection
  • IK10 Vandal Protection

4K HD RESOLUTION

The IPC3528SR-ADF28KM-WP captures video up to a resolution of 4K @ 20FPS, which is 3840x2160 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4K, your going to get a crisper, cleaner, and more detailed image.

2.8mm Fixed Lens

The IPC3528SR-ADF28KM-WP has a 2.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC3528SR-ADF28KM-WP has a horizontal field of view of 111.0°.

24/7 Color Illumination

Say goodbye to low-contrast black-and-white surveillance footage. The IPC3528SR-ADF28KM-WP supports onboard floodlights that allow the camera to capture beautiful and crisp color images 24/7. Not only does this look great, but it also provides clearer and more reliable footage than your standard IR camera.

Artificial Intelligence

With artificial intelligence, the IPC3528SR-ADF28KM-WP adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

Built-in Mic

This built-in speaker allows for one-way communication in real time with anyone in the camera's vicinity. Use this feature to deter crime, draw attention to your surveillance, or simply broadcast a message.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC3528SR-ADF28KM-WP has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 100ft NIGHT VISION RANGE

When the sun goes down or the lights go out, this camera has the ability to see Up to 100ft in the dark allowing the camera to continue functioning and recording video 24/7, day or night. You're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview

The IPC3528SR-ADF28KM-WP is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.


Plug & play

If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


SPECIFICATION Download PDF
Camera Type IP
Form Factor Dome
Resolution 4K
Max Resolution 3840x2160
Frames Per Second 20FPS
Image Sensor 1/1.8" CMOS
Lens Type Fixed Lens
Focal Length 2.8mm
Field of View 111.0°
Illumination Color Mode
IR Range Up to 100ft
Video Compression Ultra H.265|H.265|H.264
Max Video Bitrate 16Mbps
Weatherproof Rating IP67
Vandal proof Rating IK10
Audio Built-in Mic
Onvif Compatible Yes
Intelligent Events Intelligent Perimeter Protection, Cross Line Detection, Intrusion Detection
Artificial Intelligence Yes
Onboard Storage Up to 512GB
Power Supply DC12V / POE
Power Consumption Max 5.0W
Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
Weight 1.34lbs
SOFTWARE
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
