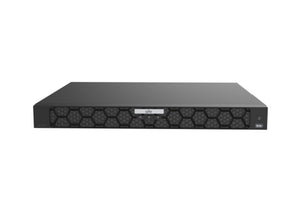

UNV 32 Channel 16MP Intelligent IQ NVR with 4 SATA HDD Bays (NVR504-32B-IQ)
Translation missing: en.products.product.sku: SKU# 3951
- Regular price
- $1,539.00
Couldn't load pickup availability
NVR504-32B-IQ
Recorder
16MP
Up to 16MP Resolution
4 SATA HDD
Up to 16TB
3 Year Warranty
Warranty Information
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
The NVR504-32B-IQ is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Please note, this recorder does not have an integrated PoE switch. Click here to shop external PoE switches.

Recording Schedules
If you want 24/7 video recording, the NVR504-32B-IQ NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 4 Hard Drive/s, Up to 16TB.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

SPECIFICATION | |
---|---|
IP Channels | 32 |
Max Resolution | 16MP |
Max Incoming Bandwidth | 320Mbps |
Max Outgoing Bandwidth | 160Mbps |
Hard Drive Slots | 4 |
Hard Drive Capacity | Up to 16TB |
Synchronus Playback | 16ch |
Alarm I/O | 16ch / 4ch |
Onvif Compatible | Yes |
Power Supply | DC 12V/5A |
Power Consumption | ≤ 12W |
Dimensions | 17.3"×13.5"×1.9" |
Weight | 7.5lbs |
SOFTWARE | |||
---|---|---|---|
Name | Description | Version | Download |
EZ Station | Unified management for Uniview IP Cameras and NVRs. |
Versionv1130.3.12.0
![]() |
DownloadDownload |
EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. |
Versionv1122.2.6.0
![]() |
DownloadDownload |
EZ Player | Media player for local recordings. |
Versionv1111.1.3.0![]() |
DownloadDownload |
Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. |
Version
![]() |
DownloadDownload |
EZ Station | Unified management for Uniview IP Cameras and NVRs. |
Versionv1113.3.10.1
![]() |
DownloadDownload |
MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. |
Version
![]() |
DownloadDownload |
