PoE Powered 3 Port Switch & Network Cat5 Cat6 Midspan Cable Range Extender Pass Through Repeater for IP Cameras - Run Cables up to 1148 (IPCP-EXT3-10)
Translation missing: en.products.product.sku: SKU# 4053
Order within to ship- Regular price
- $34.99
- Sale price
- $34.99
- Regular price
-
Couldn't load pickup availability
IPCP-EXT3-10
IPCP-EXT3-10 | PoE Powered 3-Port Extender & Unmanaged Switch
Power Source: PoE Input (No AC Outlet Required) | Max Extension: Up to 1148ft

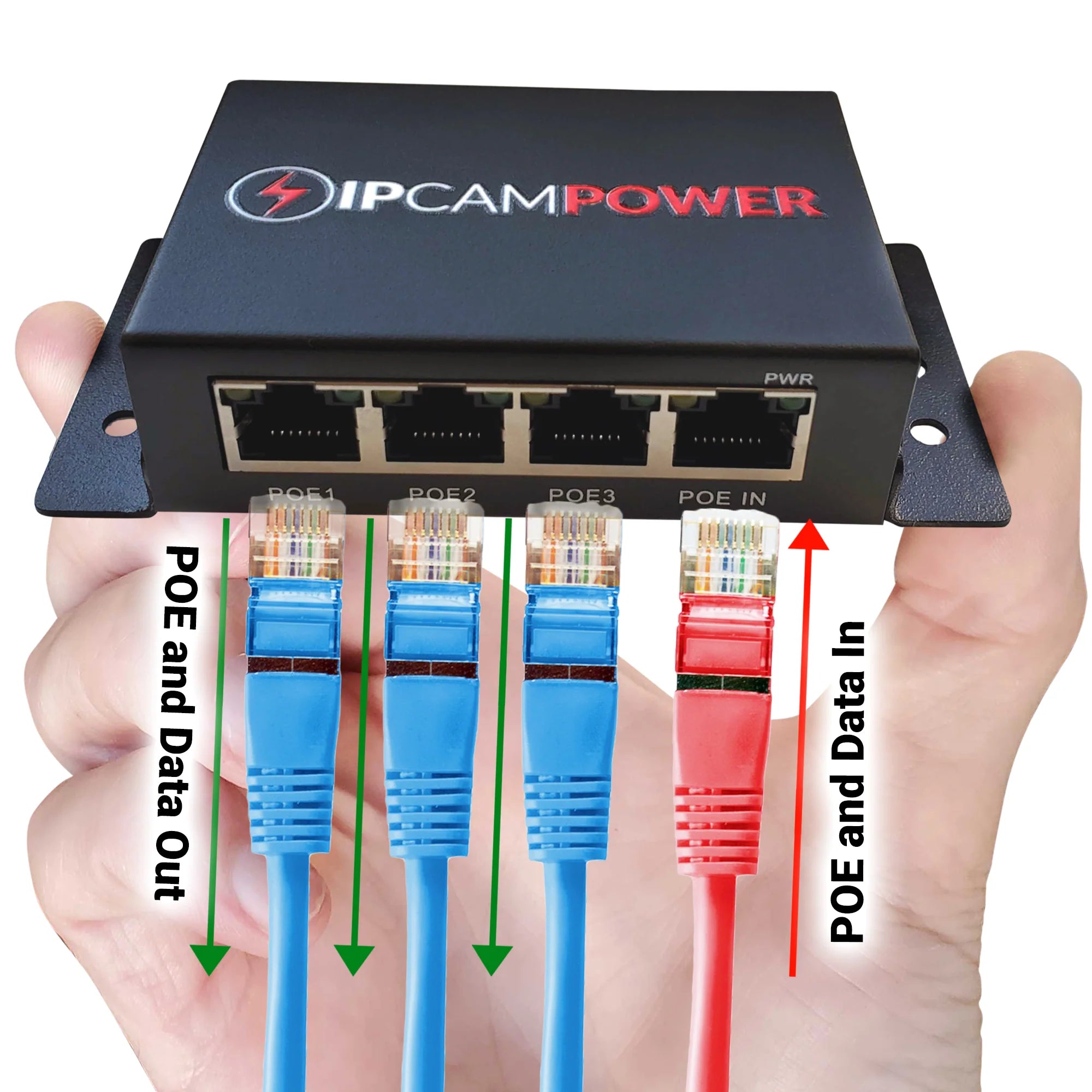

The IPCP-EXT3-10 is a specialized solution for expanding IP camera networks without the need for new electrical outlets. This unique device is powered by your existing PoE switch or injector, taking one PoE input and splitting it into three PoE outputs. It acts as both a high-speed switch and a range extender, allowing you to push your network far beyond the standard 100-meter limit.
Key Features
- No AC Power Needed: Operates entirely on incoming PoE power (802.3af/at/bt). Install it anywhere—in attics, closets, or on poles.

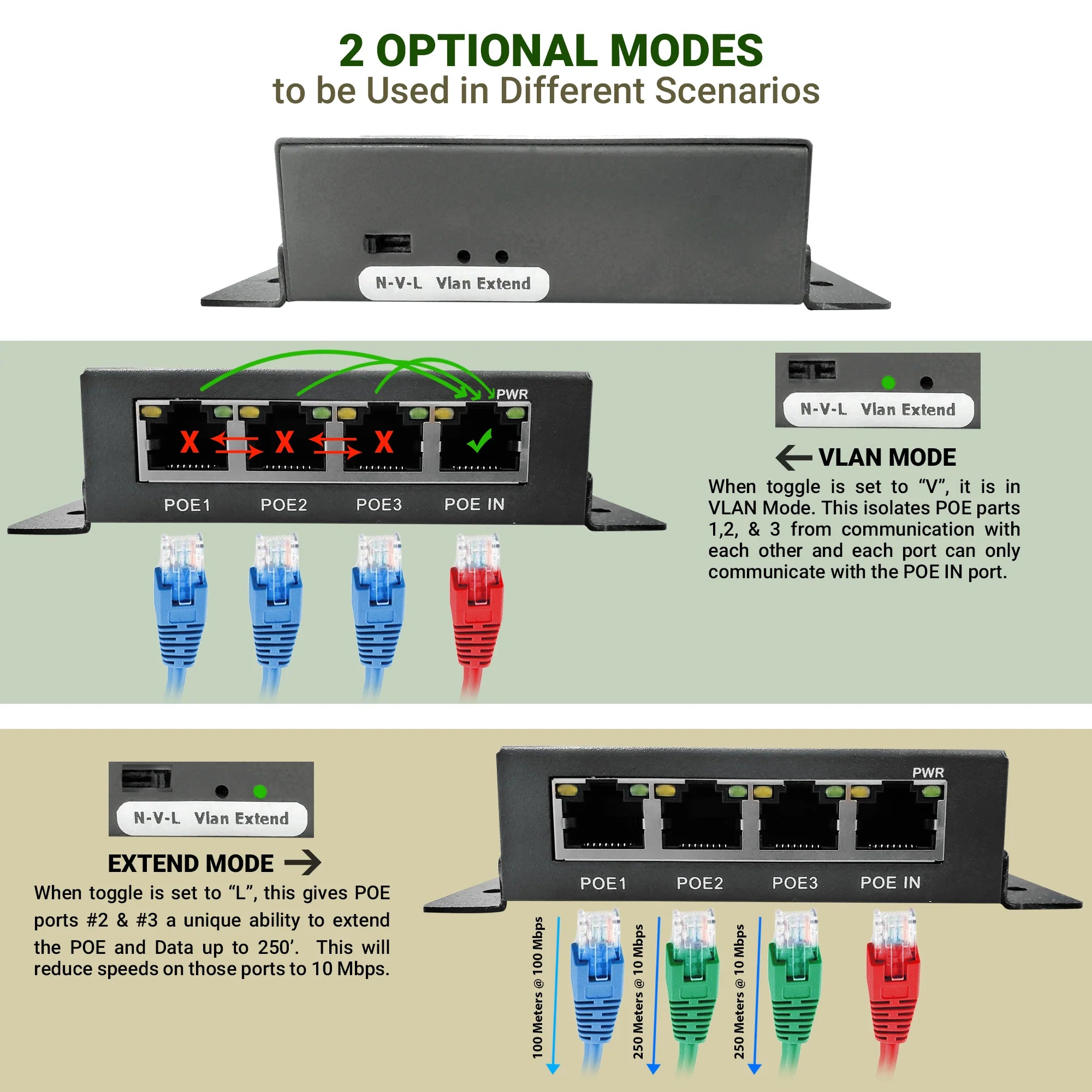

- Distance Extension: Standard mode adds an additional 100m. Enable "Extend Mode" to reach up to 250m (820ft) on ports 2 and 3 at 10Mbps.
- VLAN Isolation: Built-in toggle to isolate output ports from each other, ensuring they only communicate with the main uplink for increased security.

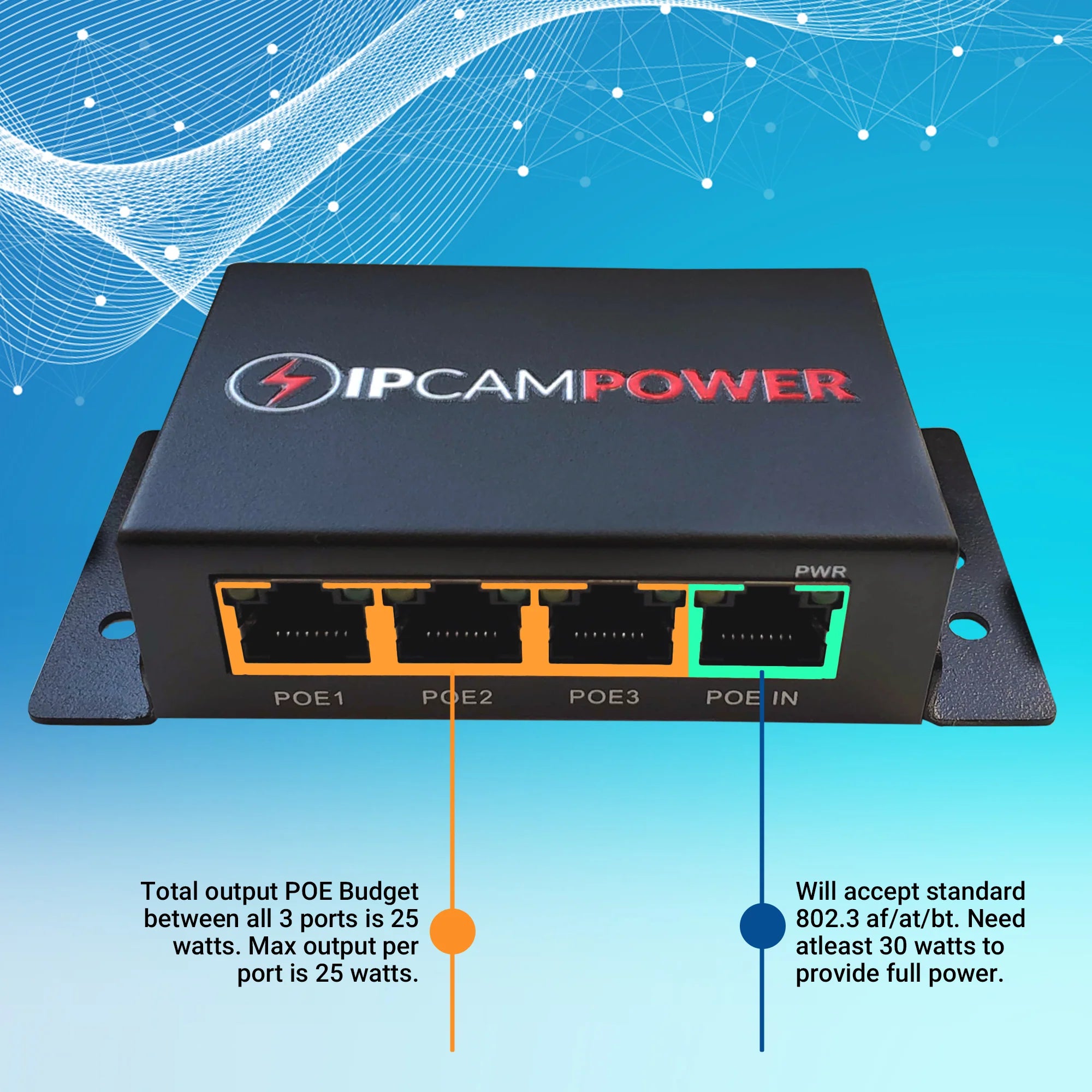

- High Compatibility: Supports up to 30W input with a 25W total output budget shared across 3 ports.

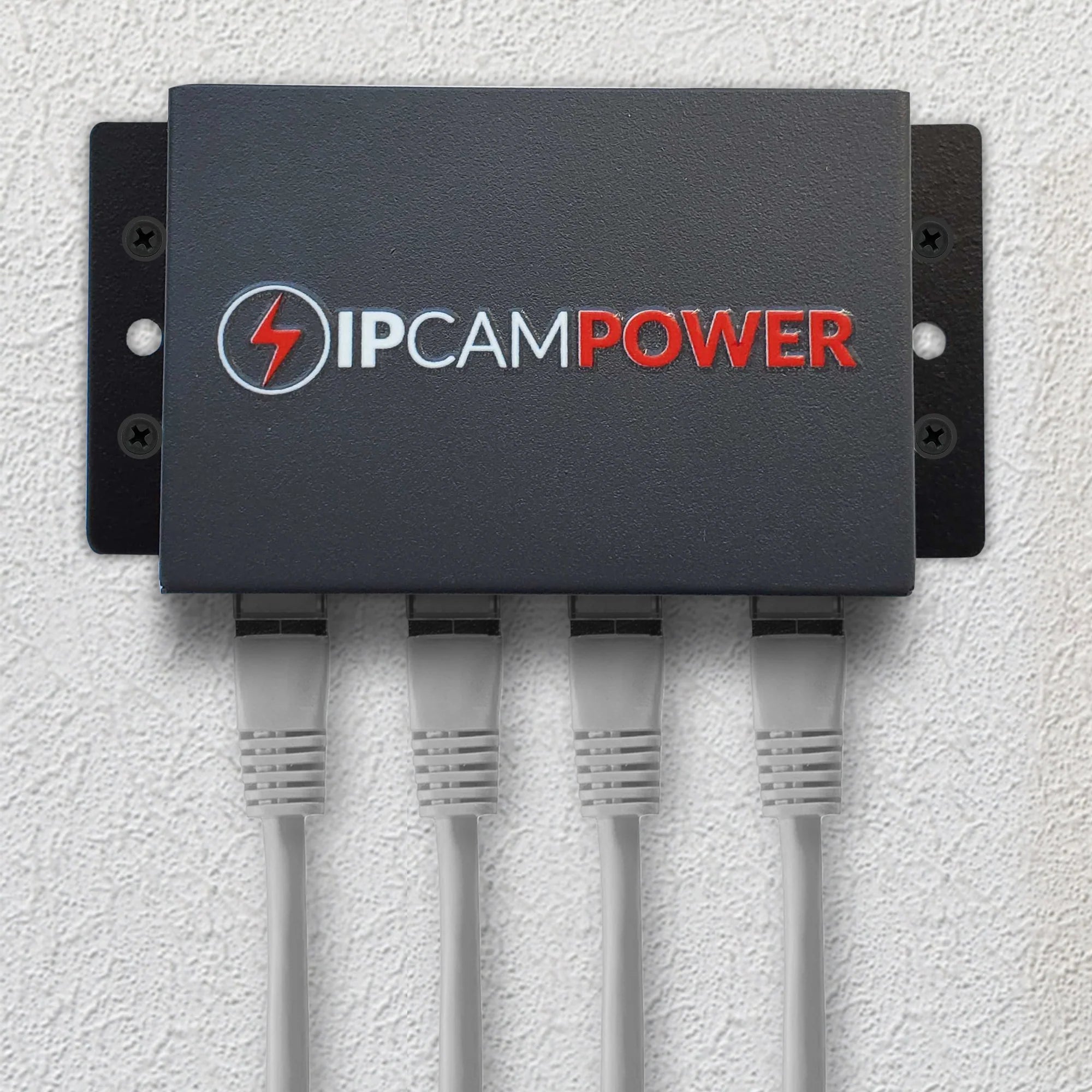

- Ultra-Compact Profile: Low-profile design includes wall-mount "ears" for clean, professional installations in tight spaces.
Technical Specifications
| Input Port | 1x 10/100 Mbps PoE (Powered by Uplink) |
| Output Ports | 3x 10/100 Mbps PoE Pass-Through |
| Power Input | Standard PoE (802.3af/at/bt) Max 30W |
| PoE Budget | 25W Total Output (Shared) |
| Special Modes | VLAN Isolation & 250m Long-Range Extend Mode |

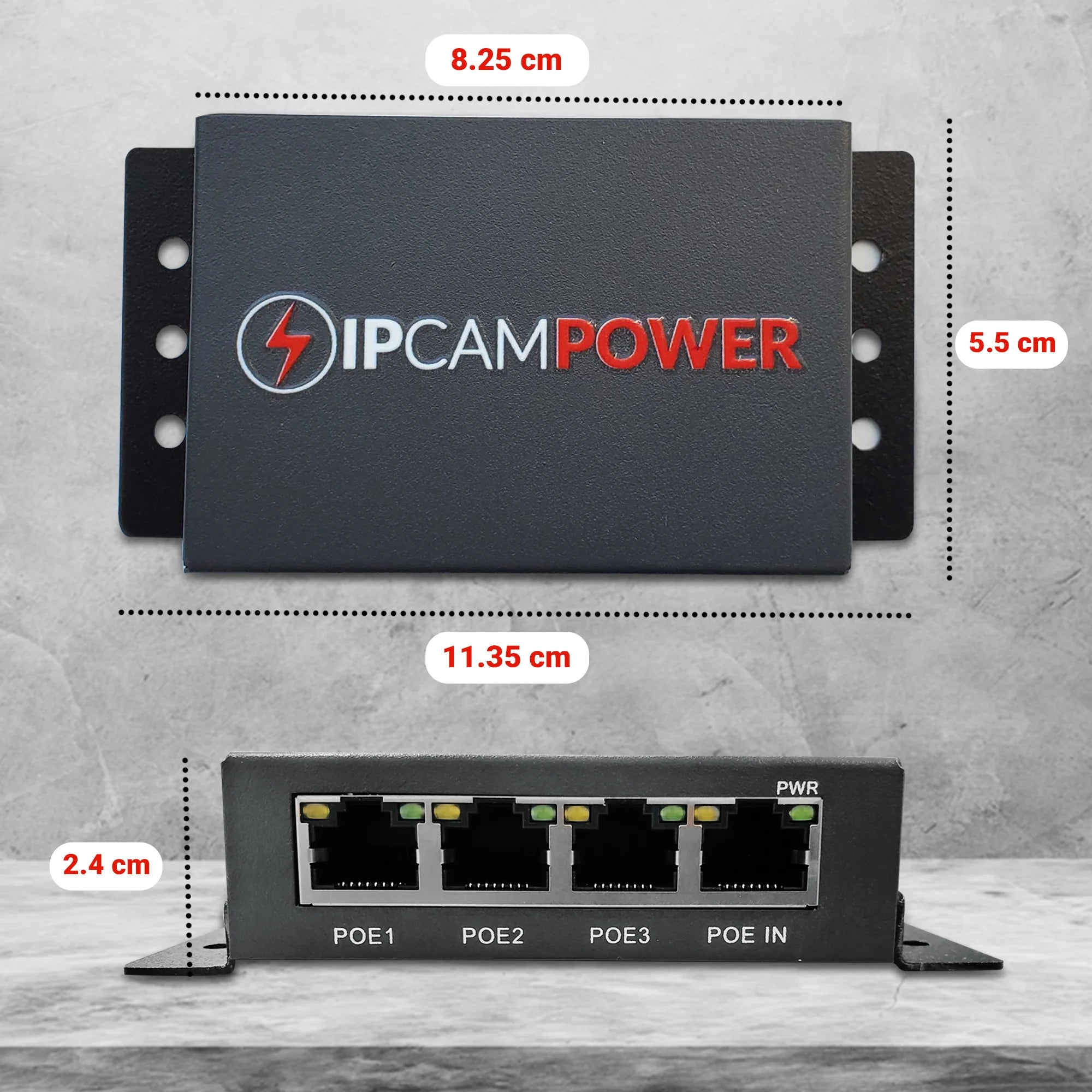

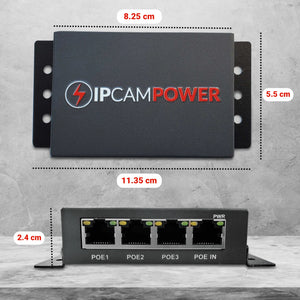

| Dimensions | 8.25cm x 5.5cm x 2.4cm (Ultra-Compact) |
Installation Versatility
Because this unit consumes only 5W for its own operation, it is highly efficient. When used with a 30W PoE+ source, you have 25W of remaining power to distribute to your IP cameras or access points. It is the perfect "midspan" tool for correcting distance issues on existing cable runs.

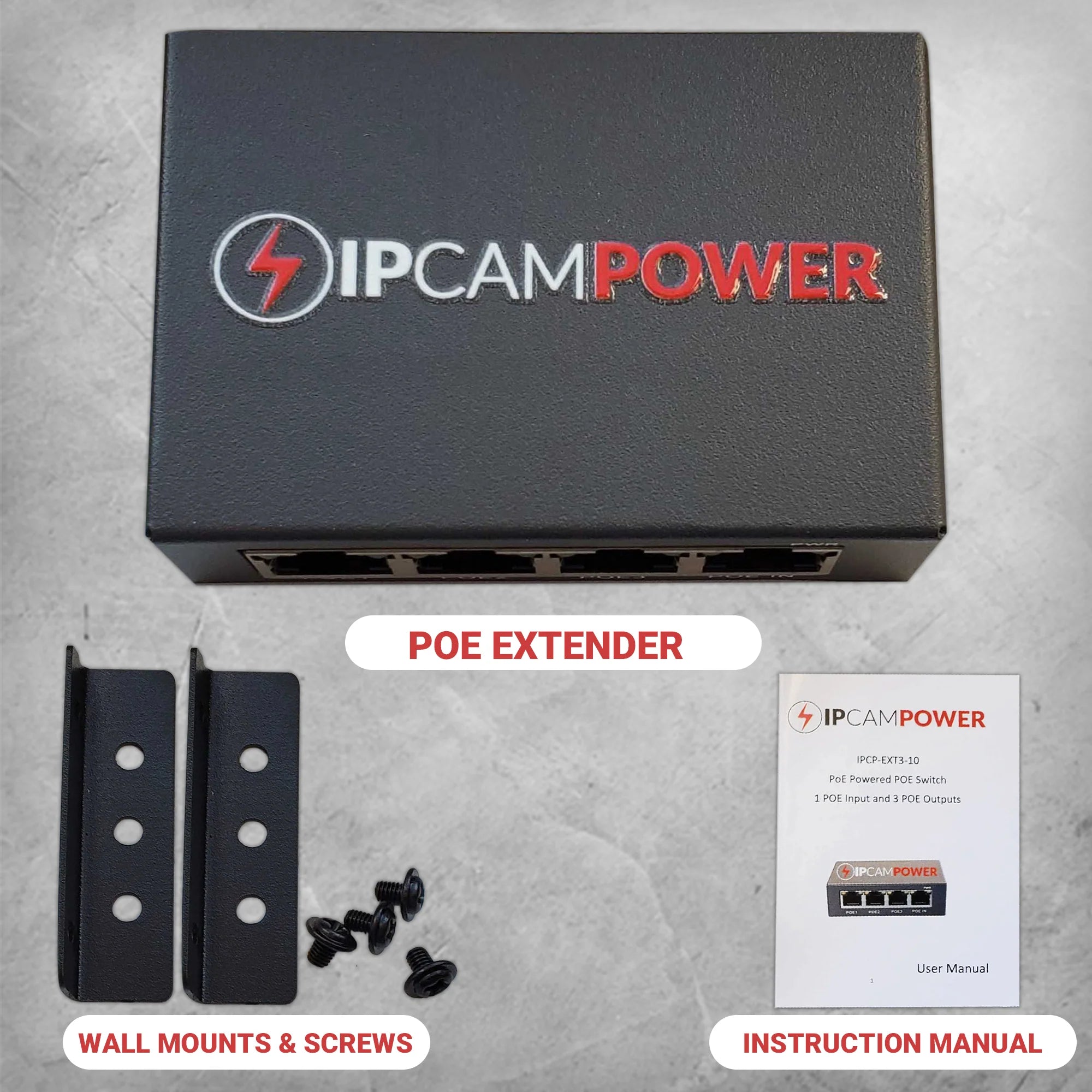

Includes: 3-Port PoE Switch/Extender and Wall Mount Ears.
