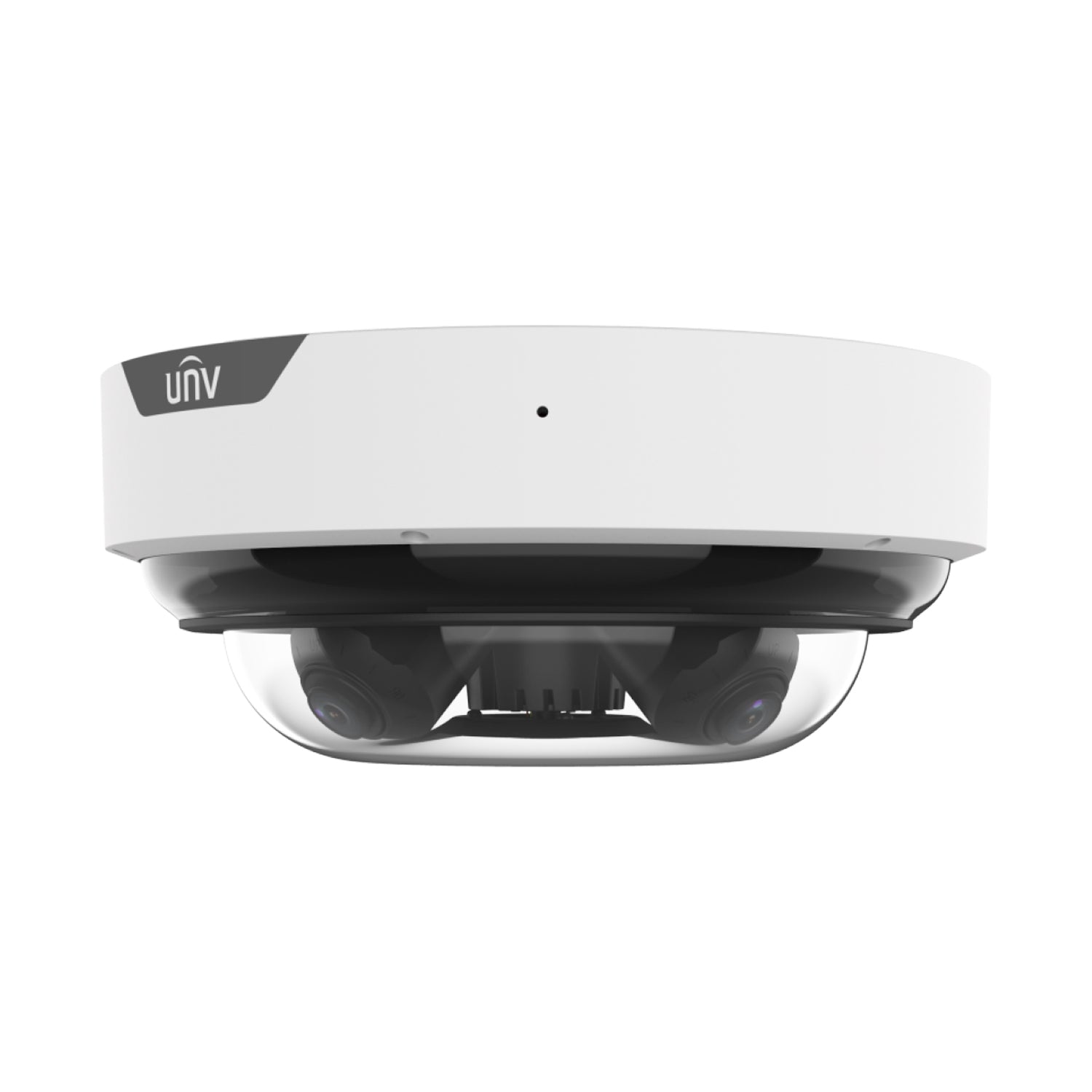

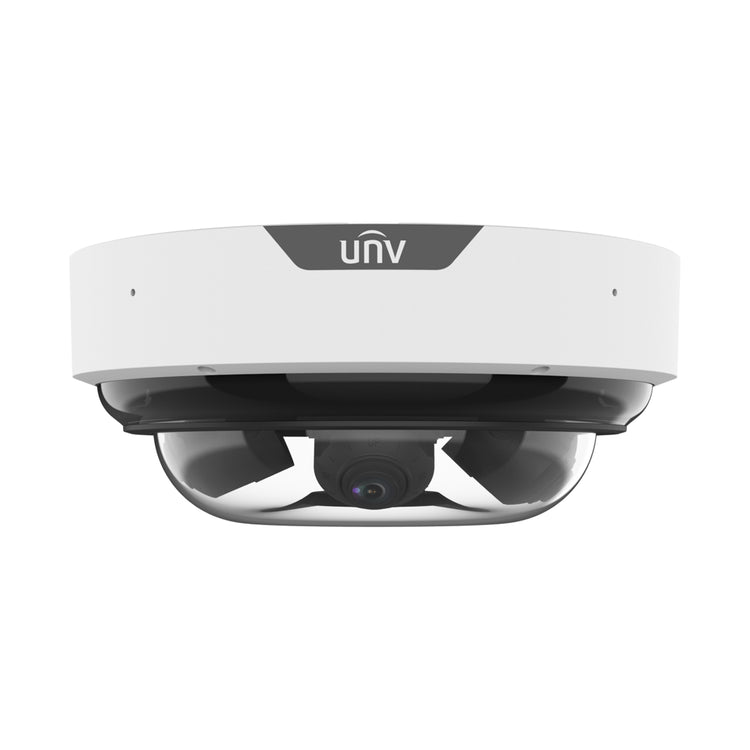

UNV 20MP Multi Sensor NDAA Compliant Vandal Dome Weatherproof LightHunter IP Security Camera with 4 x 5MP Zoom Lenses, Smart Intrusion Prevention, IR Night Vision, Built-in Mics (IPC8645EA-ADZKM-I1)
Translation missing: en.products.product.sku: SKU# 3883
Order within to ship- Regular price
- $3,479.00
- Sale price
- $3,479.00
- Regular price
-
$4,339.00
Couldn't load pickup availability
You may want these accessories for this product
UNV Multi-Sensor IP Vandal Dome Mo...
UNV Wall Mount for PTZ Dome Securi...
UNV Wall Mount for PTZ Dome Securi...
UNV PTZ Dome Pendant Mount (TR-CE4...
UNV 500mm Extender for PTZ Dome Pe...
UNV Corner Mount For PTZ Dome Came...
UNV Pole Mount Adapter For PTZ Dom...
UNV Junction Box for PTZ Dome Seri...
UNV PTZ Dome Gooseneck Bracket Mou...
IPC8645EA-ADZKM-I1
IP Security Camera
5MP
HD resolution
2.7 ~ 13.5 mm
5 x Varifocal motorized lens
IP67
Weatherproof Rating
Up to 164ft
Night Vision IR Range
3 Year Warranty
Warranty Information
4 Lenses. 4 Channels. 1 Camera. 1 Cable run.
Why waste time and money running multiple cameras when one does it all? This 4-lens powerhouse delivers four 5MP channels through just one cable run, slashing install time and labor costs. No more complicated wiring—just pure efficiency.
Tired of false alarms? Smart Intrusion Prevention filters out the noise, giving you pinpoint-accurate threat detection when it matters most. And when it comes to durability, this vandal-proof dome is built like a tank—IP67 weatherproof and IK10 impact-rated, ready to withstand rain, dust, and direct attacks.
With LightHunter technology for unbeatable low-light performance and 130 dB Optical WDR for crystal-clear imaging in any condition, this camera is designed to outperform, outlast, and out-protect the competition.
Faster installs. Fewer headaches. More security. Get the job done right with the ultimate all-in-one surveillance solution.
- Four adjustable motorized zoom lenses in a single camera housing requiring only one cable run
- One IP address with four channels
- The intelligent functions of 4 channels can be enabled at the same time
- Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
- 4-channel stream output, and each channel can output max 5MP (2880 x 1620 @30fps)
- Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 130 dB Optical WDR (Wide Dynamic Range)
- IP67 ingress & IK10 protection
4 Lenses. 4 Channels. 1 Camera. 1 Cable run.
Why waste time and money running multiple cameras when one does it all? This 4-lens powerhouse delivers four 5MP channels through just one cable run, slashing install time and labor costs. No more complicated wiring—just pure efficiency.
Tired of false alarms? Smart Intrusion Prevention filters out the noise, giving you pinpoint-accurate threat detection when it matters most. And when it comes to durability, this vandal-proof dome is built like a tank—IP67 weatherproof and IK10 impact-rated, ready to withstand rain, dust, and direct attacks.
With LightHunter technology for unbeatable low-light performance and 130 dB Optical WDR for crystal-clear imaging in any condition, this camera is designed to outperform, outlast, and out-protect the competition.
Faster installs. Fewer headaches. More security. Get the job done right with the ultimate all-in-one surveillance solution.
- Four adjustable motorized zoom lenses in a single camera housing requiring only one cable run
- One IP address with four channels
- The intelligent functions of 4 channels can be enabled at the same time
- Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
- 4-channel stream output, and each channel can output max 5MP (2880 x 1620 @30fps)
- Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 130 dB Optical WDR (Wide Dynamic Range)
- IP67 ingress & IK10 protection
5MP HD RESOLUTION
The IPC8645EA-ADZKM-I1 captures video up to a resolution of 5MP @ 30 FPS, which is 2880 x 1620 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
2.7 ~ 13.5 mm 5 x Varifocal motorized lens
The IPC8645EA-ADZKM-I1 has a Varifocal Lens, ranging from
(W)110.3°~(T)31°. This means you can manually adjust the zoom to your
liking.
The Varifocal Lens gives you more control over your image. Optically zoom in to view finer details and a
tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle field of
view.
Artificial Intelligence
With artificial intelligence, the IPC8645EA-ADZKM-I1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
Built-in Mic
This built-in speaker allows for one-way communication in real time with anyone in the camera's vicinity. Use this feature to deter crime, draw attention to your surveillance, or simply broadcast a message.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
IK10 Vandalproof Rating
The IPC8645EA-ADZKM-I1 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.
Up to 164ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 164ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview
The IPC8645EA-ADZKM-I1 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Vandal Dome | |
| Resolution | 5MP | |
| Max Resolution | 2880 x 1620 | |
| Frames Per Second | 30 FPS | |
| Image Sensor | 1/2.7" CMOS | |
| Lens Type | 5 x Varifocal motorized lens | |
| Focal Length | 2.7 ~ 13.5 mm | |
| Field of View | (W)110.3°~(T)31° | |
| Illumination | Infrared | |
| IR Range | Up to 164ft | |
| Video Compression | Ultra 265; H.265; H.264; MJPEG | |
| Max Video Bitrate | 128 Kbps ~ 16 Mbps | |
| Weatherproof Rating | IP67 | |
| Vandal proof Rating | IK10 | |
| Audio | Built-in Mic | |
| Onvif Compatible | Yes | |
| Intelligent Events | Cross line detection | Intrusion detection | Enter area detection | Leave area detection | Support People Flow Counting | Crowd Density Monitoring | |
| Artificial Intelligence | Yes | |
| Onboard Storage | Up to 512 GB | |
| Power Supply | DC12V|POE | |
| Power Consumption | Max 48.7W | |
| Operating Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) | |
| Weight | 4.77Kg (10.52lb) |
