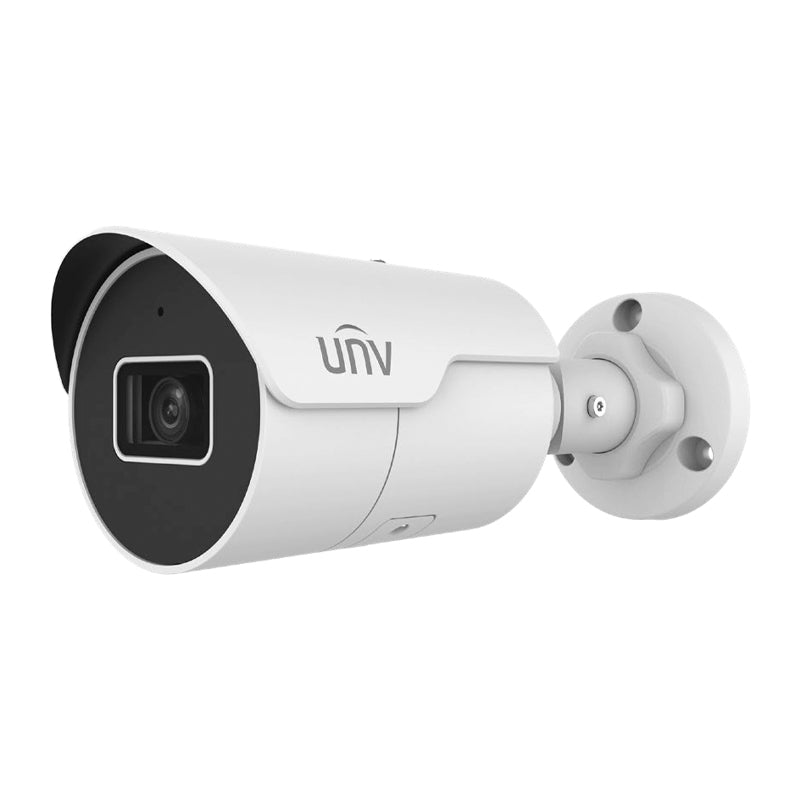

UNV 4MP Easystar Weatherproof Bullet IP Security Camera with IR, Built-in Mic, 4.0 mm Fixed Lens (IPC2124SR-ADF40KM-H)
Translation missing: en.products.product.sku: SKU# 3866
Order within to ship- Regular price
- $249.00
- Sale price
- $249.00
- Regular price
-
$309.00
Couldn't load pickup availability
You may want these accessories for this product

UNV Junction Box for Fixed Lens Bu...

UNV Pole Mount Adapter for Fixed L...

UNV Waterproof Cable Joint (TR-A01...

UNV Corner Bracket Mount for Bulle...
IPC2124SR-ADF40KM-H
IP Security Camera
4MP
HD resolution
4.0mm
Fixed Lens
IP67
Weatherproof Rating
Up to 164ft
Night Vision IR Range
3 Year Warranty
Warranty Information
The UNV IPC2124SR-ADF40KM-H is a 4MP Easystar bullet IP security camera designed for exceptional performance in various environments. With a 4MP CMOS sensor and 4.0 mm fixed lens, it delivers crystal-clear images and a wide field of view. Its Smart IR technology ensures up to 50 meters (164 feet) of night vision, while Easystar technology provides outstanding image quality in low-light conditions. The built-in microphone enhances situational awareness by capturing audio, and advanced analytics, including Cross Line and Intrusion Detection based on human body detection, minimize false alarms. The camera's weatherproof IP67-rated design and 3-axis mobility make it durable and easy to install in any setting. Additional features include 120dB true WDR for balanced lighting, support for Ultra 265, H.265, H.264, and MJPEG compression formats, local recording on up to a 512GB Micro SD card, and PoE support for simplified installation. The IPC2124SR-ADF40KM-H is the perfect solution for reliable, high-quality surveillance in residential or commercial applications.
- High quality image with 4MP, 1/3" CMOS sensor
- 4MP (2688 × 1520)@ 30/20fps; 4MP (2560 × 1440)@ 25/20fps; 3MP (2304 × 1296)@ 30/25fps; 2MP (1920 × 1080)@ 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 164ft (50m) IR distance
- Supports 512GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
The UNV IPC2124SR-ADF40KM-H is a 4MP Easystar bullet IP security camera designed for exceptional performance in various environments. With a 4MP CMOS sensor and 4.0 mm fixed lens, it delivers crystal-clear images and a wide field of view. Its Smart IR technology ensures up to 50 meters (164 feet) of night vision, while Easystar technology provides outstanding image quality in low-light conditions. The built-in microphone enhances situational awareness by capturing audio, and advanced analytics, including Cross Line and Intrusion Detection based on human body detection, minimize false alarms. The camera's weatherproof IP67-rated design and 3-axis mobility make it durable and easy to install in any setting. Additional features include 120dB true WDR for balanced lighting, support for Ultra 265, H.265, H.264, and MJPEG compression formats, local recording on up to a 512GB Micro SD card, and PoE support for simplified installation. The IPC2124SR-ADF40KM-H is the perfect solution for reliable, high-quality surveillance in residential or commercial applications.
- High quality image with 4MP, 1/3" CMOS sensor
- 4MP (2688 × 1520)@ 30/20fps; 4MP (2560 × 1440)@ 25/20fps; 3MP (2304 × 1296)@ 30/25fps; 2MP (1920 × 1080)@ 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 164ft (50m) IR distance
- Supports 512GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis

4MP HD RESOLUTION
The IPC2124SR-ADF40KM-H captures video up to a resolution of 4MP @ 30 FPS, which is 2688 x 1520 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.

4.0mm Fixed Lens
The IPC2124SR-ADF40KM-H has a
4.0mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The IPC2124SR-ADF40KM-H has a horizontal field of view of
79.0°.

Artificial Intelligence
With artificial intelligence, the IPC2124SR-ADF40KM-H adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.

Up to 164ft NIGHT VISION RANGE
When the sun goes down or the lights go out, this camera has the ability to see Up to 164ft in the dark allowing the camera to continue functioning and recording video 24/7, day or night. You're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote access Uniview
The IPC2124SR-ADF40KM-H is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.



Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.

ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.

SPECIFICATION | Download PDF | |
---|---|---|
Camera Type | IP | |
Form Factor | Bullet | |
Resolution | 4MP | |
Max Resolution | 2688 x 1520 | |
Frames Per Second | 30 FPS | |
Image Sensor | 1/3" CMOS | |
Lens Type | Fixed Lens | |
Focal Length | 4.0mm | |
Field of View | 79.0° | |
Illumination | Infrared | |
IR Range | Up to 164ft | |
Video Compression | Ultra 265 | H.265 | H.264 | MJPEG | |
Max Video Bitrate | 128 Kbps ~ 6144 Kbps | |
Weatherproof Rating | IP67 | |
Onvif Compatible | Yes | |
Intelligent Events | Cross Line (based on Human Body Detection) | Intrusion (based on Human Body Detection) | |
Artificial Intelligence | Yes | |
Onboard Storage | Up to 512GB | |
Power Supply | DC12V | POE | |
Power Consumption | Max 5.6W | |
Operating Temperature | -22 °F ~ 140 °F | |
Weight | 0.88lb |
