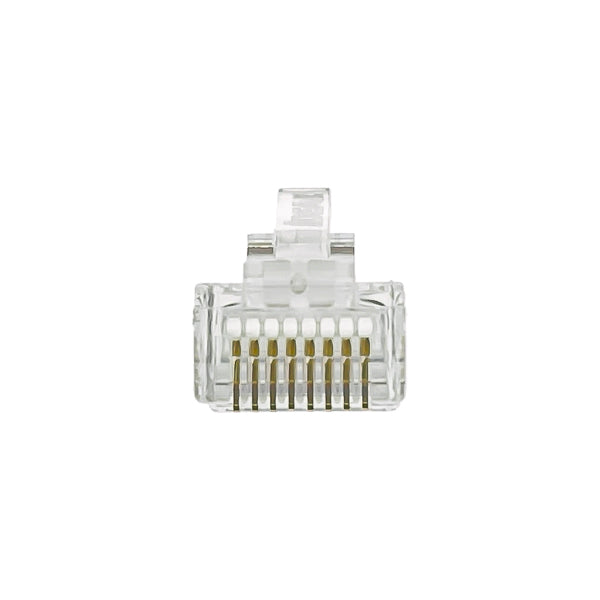

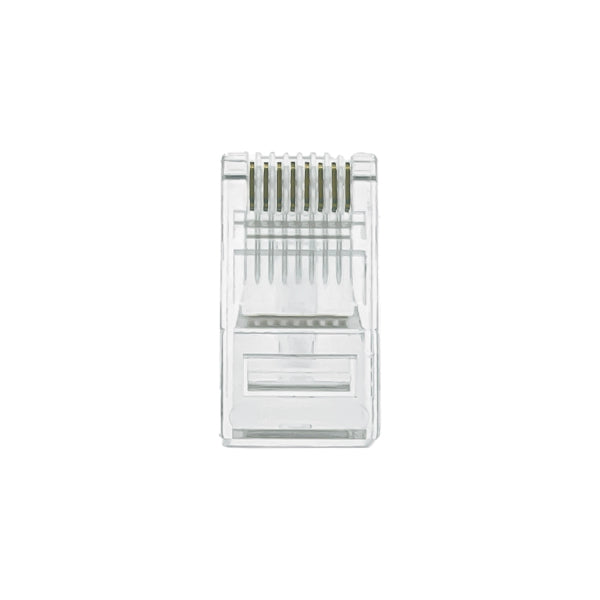

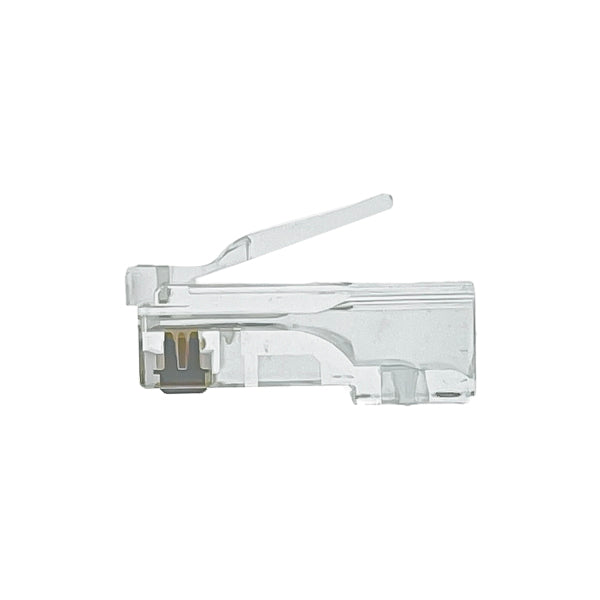

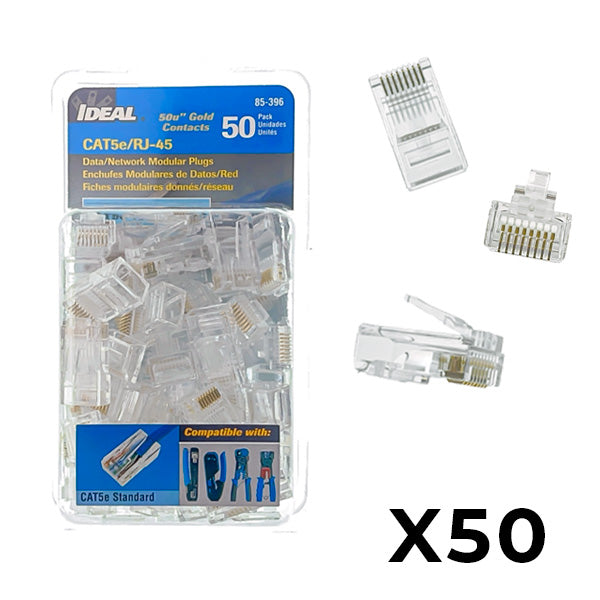

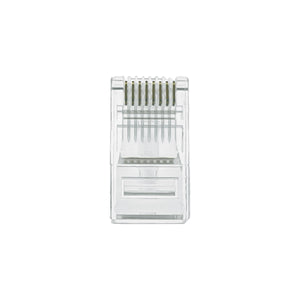

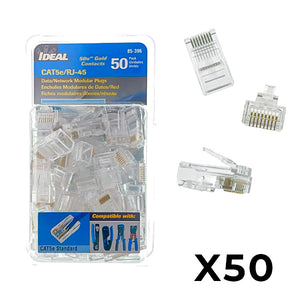

IDEAL RJ-45 Cat5e Ethernet 8P8C Modular Plug Connectors (50 pack)

|

SKU# 3678

Order within to ship
$34.00
$34.00
Shipping calculated at checkout.

You may want these accessories for this product

Crimping Tool Used to Crimp RJ45 C...
$56.99

RJ45-8P8C-50

Characteristics

Introducing the Ideal Cat5e RJ-45 Modular Plug Connectors, designed for superior performance and reliability in your data and network connections. Crimp your own network cables with these high-quality 8 position, 8 contact (8P8C) modular plugs. Each connector is engineered to comply with industry-standard mechanical and electrical specifications, ensuring compatibility with compliant modular jacks and ports.

  • 50 micro-inch gold plating on the contact mating area guarantees long-term reliability in connectivity, even after hundreds of mating cycles.
  • Designed to work seamlessly with standard RJ-45 8P8C crimp tools.
  • Three-prong contact design suitable for use with both solid and stranded 24-26 AWG insulated copper conductors.
  • Maximum conductor diameter: 0.042"/1.07mm; Maximum recommended cable outer jacket diameter: 0.270"/6.8mm.
  • Primary and secondary strain relief supports to retain the cable jacket and minimize conductor movement once crimped.
  • The non-passthrough design prevents external conductor/device shorting and RF signal leakage, ensuring a stable and secure connection.

Upgrade your network connections with these reliable, high-quality Cat5e RJ-45 Modular Plugs. With 50 connectors in each pack, you'll have everything you need to create dependable and long-lasting data and network connections.
