A “PERFECT” TEAM

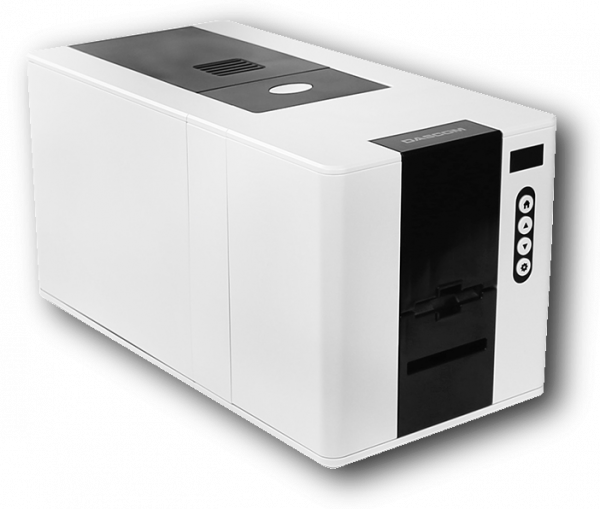

The DC-7600 is the next level in retransfer technology with 600 dpi resolution and is designed for medium to large runs. Over-the-edge printing enables borderless card printing and brilliant output. The card handling with a large supply as well as the edge-to-edge printing is optimally tailored to the consumables and this model can also be expanded with encoder solutions and the DC-5100 laminator.
BRILLIANT PRINTING RESULTS!
Model DC-7600
Print method Color dye sublimation retransfer technology
Resolution 600 dpi
Print speed Single Side: 144 cards/hour
Dual Side: 65 cards/hour
Interfaces USB (2.0), Ethernet (10/100)
Card thickness 0.25 – 1.25 mm (10 to 50 mil)
Security features RFID ribbon; custom watermarks;
optional card feeder lock
Weight 22 kg (48.5 lb) approximately
Driver Windows 32 and 64 Bit
Model DC-5100
Lamination method Thermal direct
Lamination modus Single side; dual side
(manual or automatic in combination with DC-7600)
Lamination speed 5 to 35 mm/s (0.2 to 1.4 inches per second)
Interfaces USB (2.0), Ethernet (10/100)
Card thickness 0.48 to 1.1 mm (20 to 50 mil)
Security features RFID coded roll
Card types PVC ISO ID-1/CR-80 format, 85.6 x 53.98 mm or 3.375 x
2.125 inches
Weight 8.3 kg (18.3 lb) approximately
Consumables Holographic overlays and patches
(0.6 mil or 1.0 mil thickness)
Excellent Print Quality and Watermarks
Thanks to the high resolution of the printer, micro-fonts, complex barcodes, and detailed images can be reproduced with high quality. With the use of “O” or “H” ribbons, individual watermarks and logos can be implemented quickly and inexpensively as an additional security feature.
High Productivity and Easy Handling

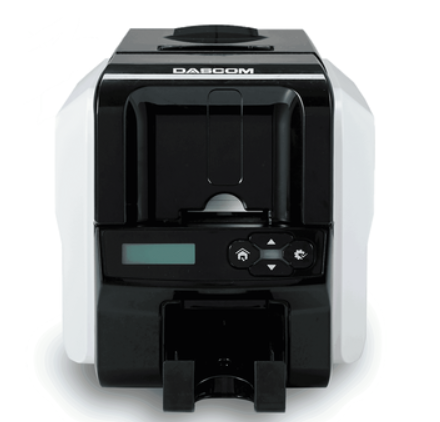

With an output of 180 (DC-2300), 220 (DC-3300) or 144 (DC-7600) cards per hour for single-sided color printing, the DASCOM printers are most suitable for medium to large-scale batches. It is very easy to add materials. Both the YMCK color ribbons as well as the transfer ribbon on the DC-7600 are ideally coordinated to each other, and thereby allow unsupervised printing of up to 500 cards.
Easy Connection
The printers have a USB interface as standard. The standard equipment also includes an Ethernet interface, which allows connection to a network.
Creating Cards
With the free basic version of the DASCOM CardEditor software, diverse card designs can be easily created and printed. With the professional version, they can also be linked to databases.
Wide Range of Cards
The DC-7600 can process cards made of different materials – PVC, PET, polycarbonate as well as ABS. With dimensions of 85.6 x 53.98 mm / 3.375 x 2.125 in popular ISO ID-1/CR-80 formats can be processed while the smoothing device provides perfect surfaces, even on uneven cards.
Lamination

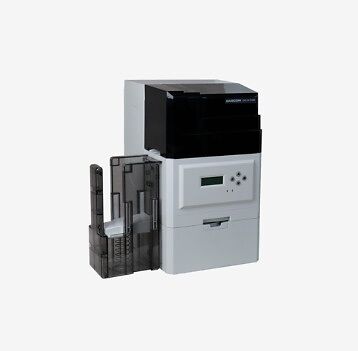

The DC-5100 laminator is also available and can be used either stand-alone or connected to the DC-7600.
