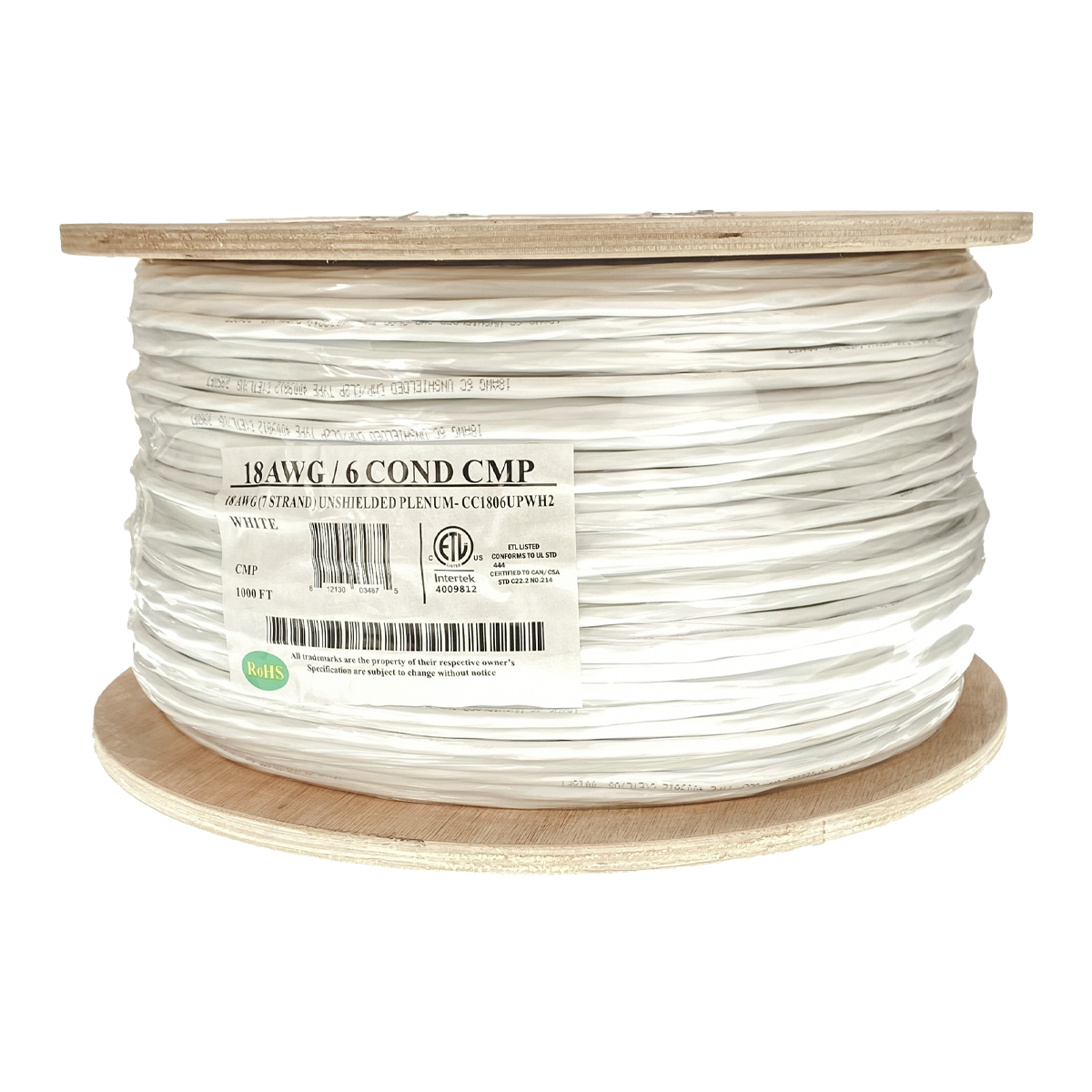

Access Control 18/6 Unshielded CMP Cable – 18 AWG, Stranded, Flame Retardant PVC, 1000 ft Reel (CC1806UPWH2)
Translation missing: en.products.product.sku: SKU# 3857
Order within to ship- Regular price
- $640.00
- Sale price
- $640.00
- Regular price
-
Couldn't load pickup availability
CC1806UPWH2
Looking for reliable and durable cable for your access control systems? This 18/6 Unshielded CMP Cable from Wavenet offers high performance and compliance with essential safety standards, making it ideal for low-voltage applications like security systems, audio, and background music. Featuring 18 AWG stranded bare copper conductors, flame-retardant PVC insulation, and a durable, low-smoke CMP jacket, this unshielded control cable is built to last in demanding environments.
Key Features:
- Cable Type: 18 AWG, unshielded, stranded bare copper conductors.
- Applications: Perfect for low-voltage control circuits, including access control systems, audio installations, and background music.
- UL and ETL Compliant: Certified to meet UL 444 and ETL CL2P/CMP standards for safe, high-quality performance.
- Flame-Retardant Jacket: FR-PVC (Flame Retardant Polyvinyl Chloride) jacket minimizes smoke emission and provides protection in plenum spaces.
- Color-Coded Conductors: Six distinct colors (Black, Red, White, Green, Brown, Blue) for easy identification and installation.
Technical Specifications:
- Conductor: Stranded Bare Copper (18 AWG)
- Insulation: FR-PVC, 0.40 mm average thickness
-
Temperature Range:
- Storage: -20°C to +60°C
- Installation: 0°C to +50°C
- Voltage Rating: 300 volts
- Dielectric Strength: 2.0 kV/minute
- Bend Radius: Minimum 35 mm
- Pulling Tension: 110 N max
- Weight: 53 lbs per 1000 ft reel
Looking for reliable and durable cable for your access control systems? This 18/6 Unshielded CMP Cable from Wavenet offers high performance and compliance with essential safety standards, making it ideal for low-voltage applications like security systems, audio, and background music. Featuring 18 AWG stranded bare copper conductors, flame-retardant PVC insulation, and a durable, low-smoke CMP jacket, this unshielded control cable is built to last in demanding environments.
Key Features:
- Cable Type: 18 AWG, unshielded, stranded bare copper conductors.
- Applications: Perfect for low-voltage control circuits, including access control systems, audio installations, and background music.
- UL and ETL Compliant: Certified to meet UL 444 and ETL CL2P/CMP standards for safe, high-quality performance.
- Flame-Retardant Jacket: FR-PVC (Flame Retardant Polyvinyl Chloride) jacket minimizes smoke emission and provides protection in plenum spaces.
- Color-Coded Conductors: Six distinct colors (Black, Red, White, Green, Brown, Blue) for easy identification and installation.
Technical Specifications:
- Conductor: Stranded Bare Copper (18 AWG)
- Insulation: FR-PVC, 0.40 mm average thickness
-
Temperature Range:
- Storage: -20°C to +60°C
- Installation: 0°C to +50°C
- Voltage Rating: 300 volts
- Dielectric Strength: 2.0 kV/minute
- Bend Radius: Minimum 35 mm
- Pulling Tension: 110 N max
- Weight: 53 lbs per 1000 ft reel
| SPECIFICATION | Download PDF |
|---|
