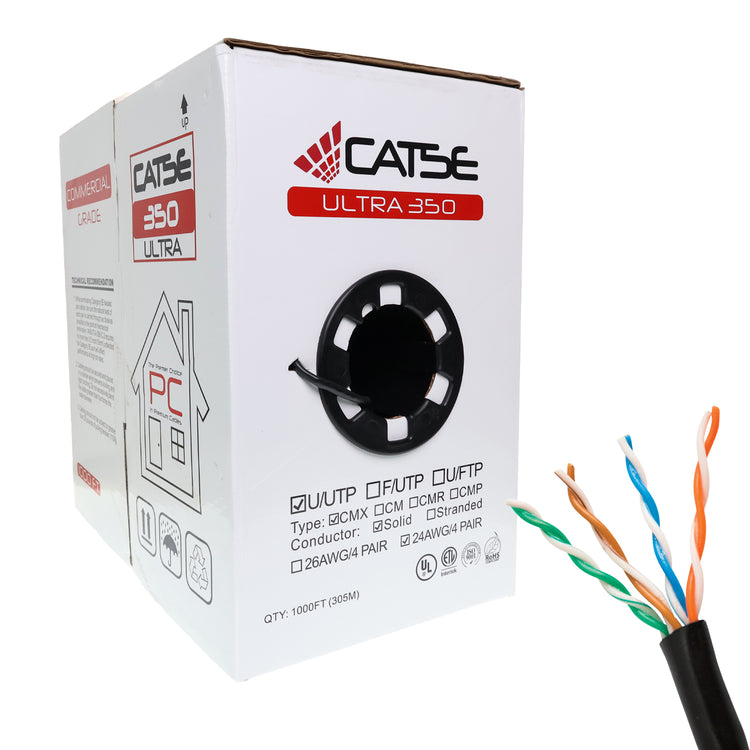

High-Performance CAT5e CMX Outdoor/Riser Bulk Cable
Part Number: C5CMX-414BK | Length: 1000ft | Color: Black
Engineered for high-capacity networking in challenging environments, the C5CMX-414BK is a versatile solution for indoor/outdoor LAN applications. This dual-rated CMR/CMX cable features a UV-resistant jacket and high-density polyethylene (HDPE) insulation, making it ideal for aerial runs, antenna installations, and outdoor plant wiring.
Core Benefits
- Tested to 350MHz: Exceeds CAT5e TIA568C.2 standards with extra headroom for future network growth.
- Rugged Construction: Features 24 AWG Solid Bare Copper conductors and an integrated longitudinal rip cord for easy jacket stripping.
- Smart Packaging: Marked in descending order so you always know exactly how much cable remains in the box.
- Low Interference: Optimized for low attenuation and power-sum crosstalk to ensure stable data transmission.
Technical Specifications
| Conductor Size | 24 AWG Solid Bare Copper |
| Insulation | High Density Polyethylene (HDPE) |
| Jacket Material | CMX PVC (UV Rated & Riser Compatible) |
| Outer Diameter | 5.0mm ± 0.4mm |
| Bandwidth | Tested up to 350 MHz |
| Compliance | TIA/EIA-568-C.2, ISO/IEC 11801, UL Listed, ETL Verified, RoHS |
Standard Applications
- 10/100/1000Base-T Gigabit Ethernet
- Aerial & Outdoor Installations
- Wireless Antennas & Security Surveillance
- 155 Mbps and 622-Mbps ATM
Professional Note: This cable's CMX rating ensures it will not crack or degrade under long-term UV exposure, while the CMR rating allows for safe vertical installation in building risers.
