Altronix by Altronix

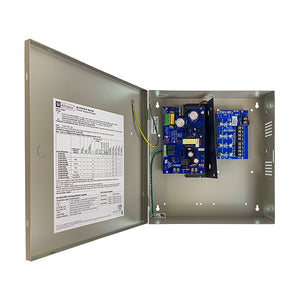

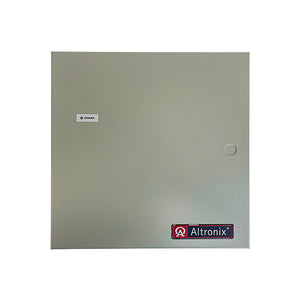

Altronix Power Supply Charger with Four Class 2 Rated 12VDC or 24VDC Power Limited Outputs (AL400ULPD4)

Translation missing: en.products.product.sku: SKU# 3574

Order within to ship
Regular price
$279.99
Sale price
$279.99
Regular price
  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.
  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Four (4) Class 2 Rated fuse protected power limited outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • AC fail supervision (form “C” contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form “C” contacts).
  • Battery presence supervision (form “C” contacts).
  • Visual Indicators
  • AC input and DC output LED indicators.
  • Operating Temperature: 0° C to 49° C (32° F to 120° F).
  • Storage Temperature: - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • System AC input VA requirement: 166.75VA.

You may want these accessories for this product

Altronix 3-Wire 6 Foot Line Cord (...

$12.00

AL400ULPD4

Characteristics
  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.
  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Four (4) Class 2 Rated fuse protected power limited outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • AC fail supervision (form “C” contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form “C” contacts).
  • Battery presence supervision (form “C” contacts).
  • Visual Indicators
  • AC input and DC output LED indicators.
  • Operating Temperature: 0° C to 49° C (32° F to 120° F).
  • Storage Temperature: - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.):
  • 12VDC: 25 BTU/Hr.
  • 24VDC: 37 BTU/Hr.
  • System AC input VA requirement: 166.75VA.
Characteristics
  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.
  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Four (4) Class 2 Rated fuse protected power limited outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • AC fail supervision (form “C” contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form “C” contacts).
  • Battery presence supervision (form “C” contacts).
  • Visual Indicators
  • AC input and DC output LED indicators.
  • Operating Temperature: 0° C to 49° C (32° F to 120° F).
  • Storage Temperature: - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.):
  • 12VDC: 25 BTU/Hr.
  • 24VDC: 37 BTU/Hr.
  • System AC input VA requirement: 166.75VA.
