Akuvox by Akuvox

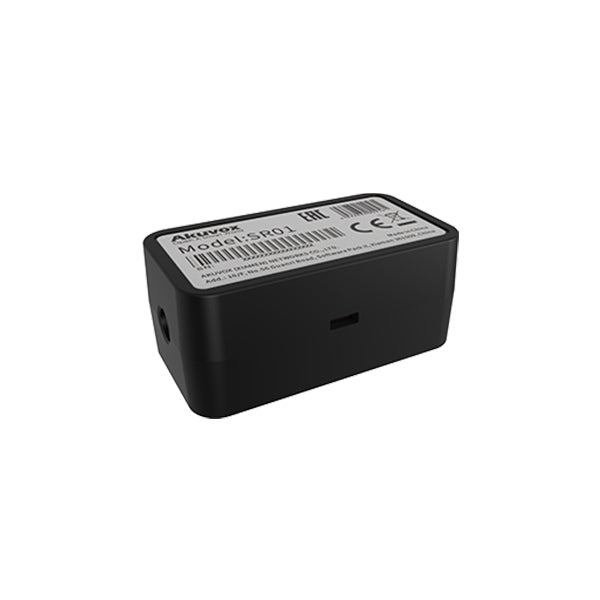

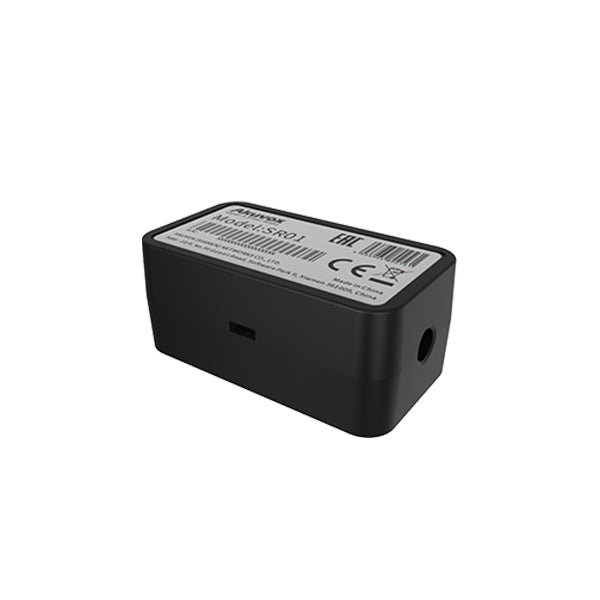

Akuvox Compact Security Relay Single Door I/O Module (SR01)

SKU# 3578

Order within to ship
  • Environment: Indoor
  • 1 button, for pairing
  • Plastic casing
  • Dimensions: 31x56x24mm
  • Fits in standard installation boxes
  • Relay Out: 1
  • RS485: 1
  • Input: 1
  • Indicator: 2
  • Power In: 1, 12V/100mA (Min.)
  • Working Humidity: 10~90%
  • Working Temperature: -20°C ~ +60°C

You may want these accessories for this product

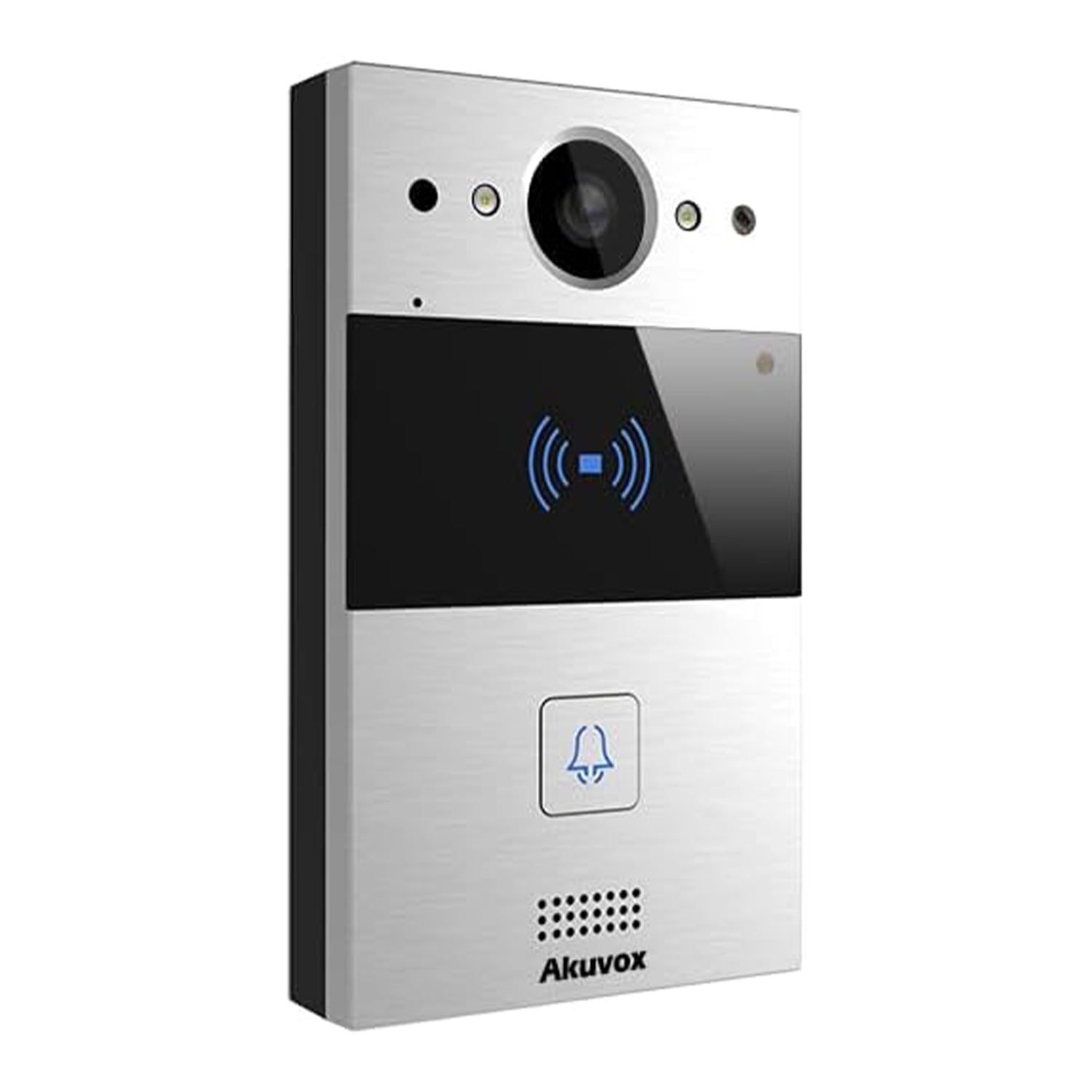

Akuvox Palm-Sized Doorphone Interc...

DEALERS ONLY

SR01

1 Year Warranty

Warranty Information

Characteristics

The Akuvox SR01 provides secure door control via encrypted communication when combined with other Akuvox devices. The module with ultra-compact form, easily placed in most standard installation boxes, is installed on the secure side of the door. If anyone attempts to dismount or vandalize the door station, SR01 cuts the connection to the door strike and the door remains securely locked.

  • Environment: Indoor
  • 1 button, for pairing
  • Plastic casing
  • Dimensions: 31x56x24mm
  • Fits in standard installation boxes
  • Relay Out: 1
  • RS485: 1
  • Input: 1
  • Indicator: 2
  • Power In: 1, 12V/100mA (Min.)
  • Working Humidity: 10~90%
  • Working Temperature: -20°C ~ +60°C

Compatible Devices

Characteristics

The Akuvox SR01 provides secure door control via encrypted communication when combined with other Akuvox devices. The module with ultra-compact form, easily placed in most standard installation boxes, is installed on the secure side of the door. If anyone attempts to dismount or vandalize the door station, SR01 cuts the connection to the door strike and the door remains securely locked.

  • Environment: Indoor
  • 1 button, for pairing
  • Plastic casing
  • Dimensions: 31x56x24mm
  • Fits in standard installation boxes
  • Relay Out: 1
  • RS485: 1
  • Input: 1
  • Indicator: 2
  • Power In: 1, 12V/100mA (Min.)
  • Working Humidity: 10~90%
  • Working Temperature: -20°C ~ +60°C

Compatible Devices

SOFTWARE
Name Description Version Download
NameIP Scanner Tool Find devices on your local network. Version v2.0.0.1 DownloadDownload
