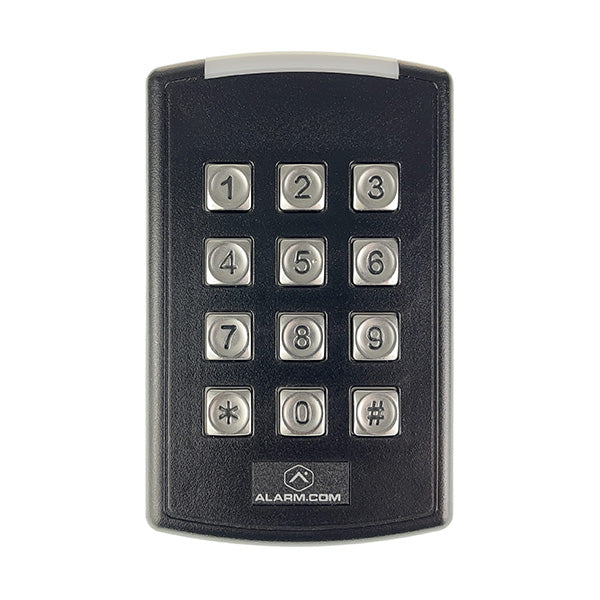

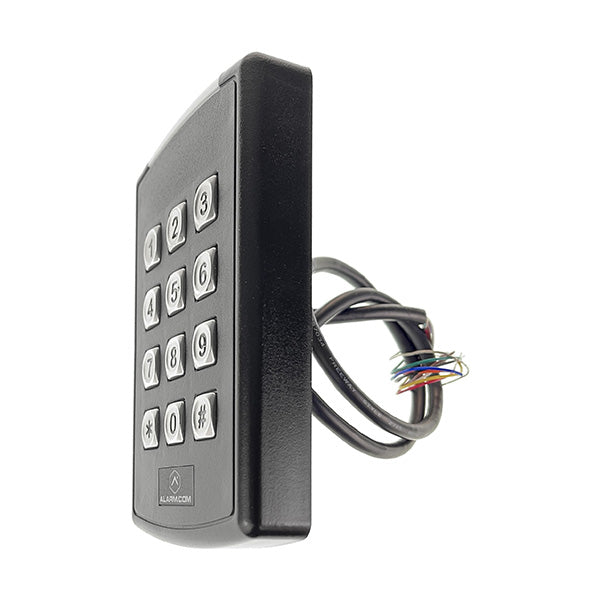

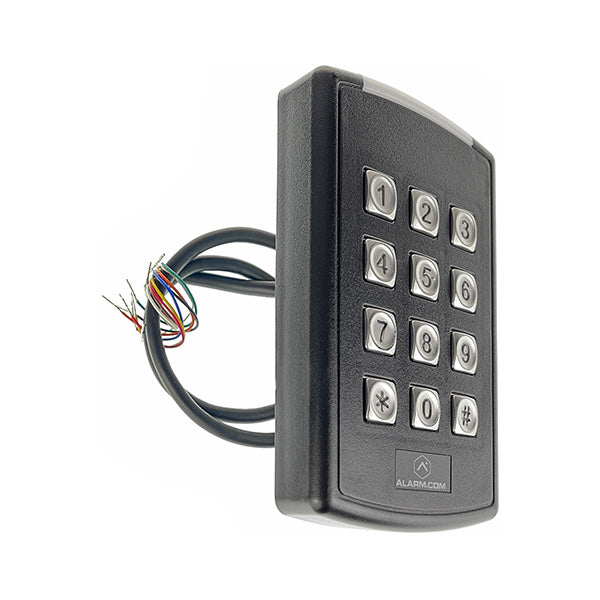

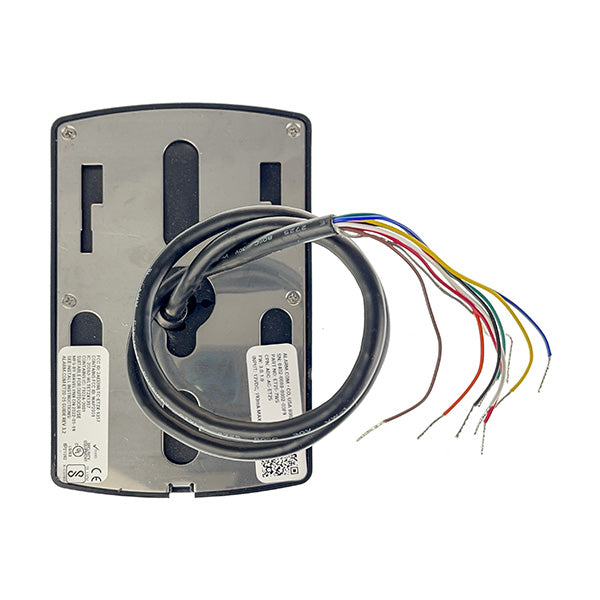

Alarm.com Single-Gang Card Reader for Access Control with Keypad, OSDP & Wiegand Compatible, Supports DESFire, NFC, BLE, & Proximity (ADC-AC-ET25)
Translation missing: en.products.product.sku: SKU# 3515
Order within to shipCouldn't load pickup availability
- RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
- Reads: MIFARE DESfire EV1 & EV2, LEAF, FSK, and ASK proximity
- Input power: 5-16 VDC, 144 mA max
- Output: OSDP, Wiegand, accelerometer-based tamper detection
- Read ranges: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
- Temperature: -31°F – +151°F
- Operating humidity: 5 – 95% (non-condensing) RH
- Dimensions: 5.1 x 3.3 x 0.7"
- Weight: 11.3 oz
- Country of origin: USA
- Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252
You may want these accessories for this product
Alarm.com Smart Access Cards, 13.5...
DEALERS ONLY
Alarm.com Smart + Proximity Access...
DEALERS ONLYADC-AC-ET25
1 Year Warranty
Warranty Information
Smarter Access Control is a powerful, easy-to-use solution for businesses ranging from small shops to large commercial properties. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline.
This single-gang reader is great for a variety of situations. The built-in keypad opens up your credentials to include a pin. It's OSDP & Wiegand compatible. It supports a wide range of credentials, such as DESFire, NFC, Bluetooth, and proximity cards.
- RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
- Reads: MIFARE DESfire EV1 & EV2, LEAF, FSK, and ASK proximity
- Input power: 5-16 VDC, 144 mA max
- Output: OSDP, Wiegand, accelerometer-based tamper detection
- Read ranges: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
- Temperature: -31°F – +151°F
- Operating humidity: 5 – 95% (non-condensing) RH
- Dimensions: 5.1 x 3.3 x 0.7"
- Weight: 11.3 oz
- Country of origin: USA
- Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252
In the box:

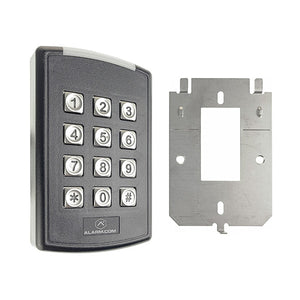

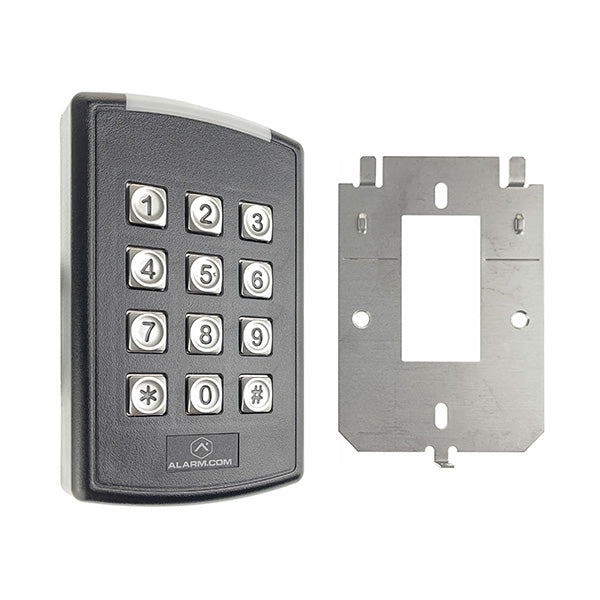

ADC-AC-ET25 reader, installation guide, backplate, wall plate, #6 screws (x2), #4 screws (x4), #4-40 screw (x1), #4-40 pin-in-Torx T8 screw (x1)
Smarter Access Control is a powerful, easy-to-use solution for businesses ranging from small shops to large commercial properties. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline.
This single-gang reader is great for a variety of situations. The built-in keypad opens up your credentials to include a pin. It's OSDP & Wiegand compatible. It supports a wide range of credentials, such as DESFire, NFC, Bluetooth, and proximity cards.
- RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
- Reads: MIFARE DESfire EV1 & EV2, LEAF, FSK, and ASK proximity
- Input power: 5-16 VDC, 144 mA max
- Output: OSDP, Wiegand, accelerometer-based tamper detection
- Read ranges: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
- Temperature: -31°F – +151°F
- Operating humidity: 5 – 95% (non-condensing) RH
- Dimensions: 5.1 x 3.3 x 0.7"
- Weight: 11.3 oz
- Country of origin: USA
- Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252
In the box:
ADC-AC-ET25 reader, installation guide, backplate, wall plate, #6 screws (x2), #4 screws (x4), #4-40 screw (x1), #4-40 pin-in-Torx T8 screw (x1)
