A Quick and Easy Public View Monitor with a Built-In IP Camera: the NSC-PVM
The NSC-PVM is a public view monitor that comes with a built-in IP camera, a feature called Ad Mode that allows you to display whatever photo or...
Nelly's Security
by
Nelly's Security
5MP NDAA-Compliant 10.1" IP POE Powered Public View Monitor W Built In Camera, MIC, and PIR (NSC-PVM)
|
Translation missing: en.products.product.sku: SKU# 3486
Order within to ship- Regular price
- $549.99
- Sale price
- $549.99
- Regular price
-
Couldn't load pickup availability
- LED Backlight with 40% power saving
- Built-in NDAA-Compliant 5mp IP Camera

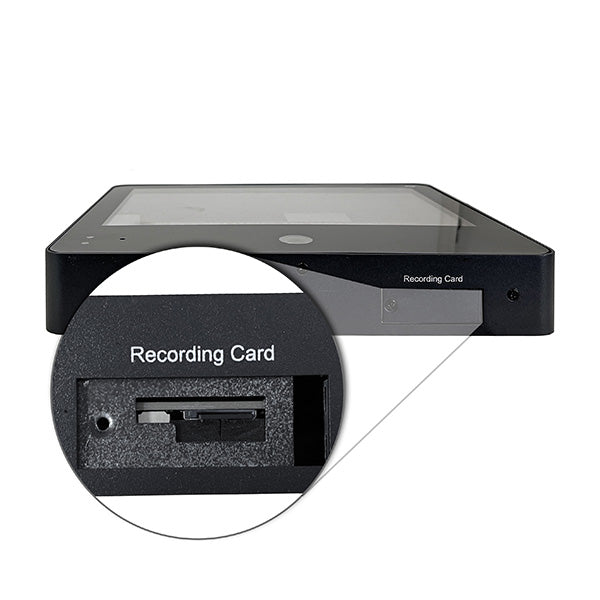

- Onboard recording with TF card (up to 1 TB) or by NVR
- Advertisement function while in passive mode
- Simultaneously view camera feed over the network
- PIR Motion Sensor for switching between camera and advertising mode
- Text overlay
- Flickering LED light to show power and recording function
- Audio alarm based on motion
- Sleek and slim metal design
- Full acrylic cover
- Single remote for all settings
- DC12V & PoE
You may want these accessories for this product
Uniarch by Uniview VESA Wall Mount...
$9.99
Related Articles
NSC-PVM
IP Security Camera
5MP
HD resolution
3.0mm
Fixed Lens
2 Year Warranty
Warranty Information
Characteristics
A public view monitor with a built-in 5MP NDAA-Compliant IP Camera. The NSC-PVM is perfect for quick public view monitor setups. You can display a logo and advertising slideshows while the monitor is passive, then automatically switch to PVM mode based on motion detection with the built-in PIR motion detector. Record directly to the machine via a MicroSD card or record with your NVR via the ONVIF protocol or RTSP address.
With an acrylic cover, a slim metal housing, and a slick dark profile, the NSC-PVM will look great anywhere. Use it in retail scenarios, store entrances, ATMs, and any other scenario where you need passersby to know they're being watched and recorded.
By default, the PVM is set to 2MP (1920 x 1080) @ 30fps to save bandwidth and recording space. The resolution can be manually bumped all the way up to 5MP (2592 x 1944) @ 30fps if desired.
Download Config Tool- LED Backlight with 40% power saving
- Built-in NDAA-Compliant 5mp IP Camera
- Onboard recording with TF card (up to 1 TB) or by NVR
- Advertisement function while in passive mode
- Simultaneously view camera feed over the network
- PIR Motion Sensor for switching between camera and advertising mode
- Text overlay
- Flickering LED light to show power and recording function
- Audio alarm based on motion
- Sleek and slim metal design
- Full acrylic cover
- Single remote for all settings
- DC12V & PoE
Characteristics
A public view monitor with a built-in 5MP NDAA-Compliant IP Camera. The NSC-PVM is perfect for quick public view monitor setups. You can display a logo and advertising slideshows while the monitor is passive, then automatically switch to PVM mode based on motion detection with the built-in PIR motion detector. Record directly to the machine via a MicroSD card or record with your NVR via the ONVIF protocol or RTSP address.
With an acrylic cover, a slim metal housing, and a slick dark profile, the NSC-PVM will look great anywhere. Use it in retail scenarios, store entrances, ATMs, and any other scenario where you need passersby to know they're being watched and recorded.
By default, the PVM is set to 2MP (1920 x 1080) @ 30fps to save bandwidth and recording space. The resolution can be manually bumped all the way up to 5MP (2592 x 1944) @ 30fps if desired.
Download Config Tool- LED Backlight with 40% power saving
- Built-in NDAA-Compliant 5mp IP Camera
- Onboard recording with TF card (up to 1 TB) or by NVR
- Advertisement function while in passive mode
- Simultaneously view camera feed over the network
- PIR Motion Sensor for switching between camera and advertising mode
- Text overlay
- Flickering LED light to show power and recording function
- Audio alarm based on motion
- Sleek and slim metal design
- Full acrylic cover
- Single remote for all settings
- DC12V & PoE
5MP HD RESOLUTION
The NSC-PVM captures video up to a resolution of 5MP @ 30 FPS, which is 2592 x 1944 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
3.0mm Fixed Lens
The NSC-PVM has a
3.0mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The NSC-PVM has a horizontal field of view of
.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The NSC-PVM comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
Plug & play
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
Related Videos
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | PVM | |
| Resolution | 5MP | |
| Max Resolution | 2592 x 1944 | |
| Frames Per Second | 30 FPS | |
| Lens Type | Fixed Lens | |
| Focal Length | 3.0mm | |
| Illumination | Infrared | |
| Audio | Built-in Microphone | |
| Onvif Compatible | Yes | |
| Onboard Storage | Up to 1TB | |
| Power Supply | DC12V|POE |
