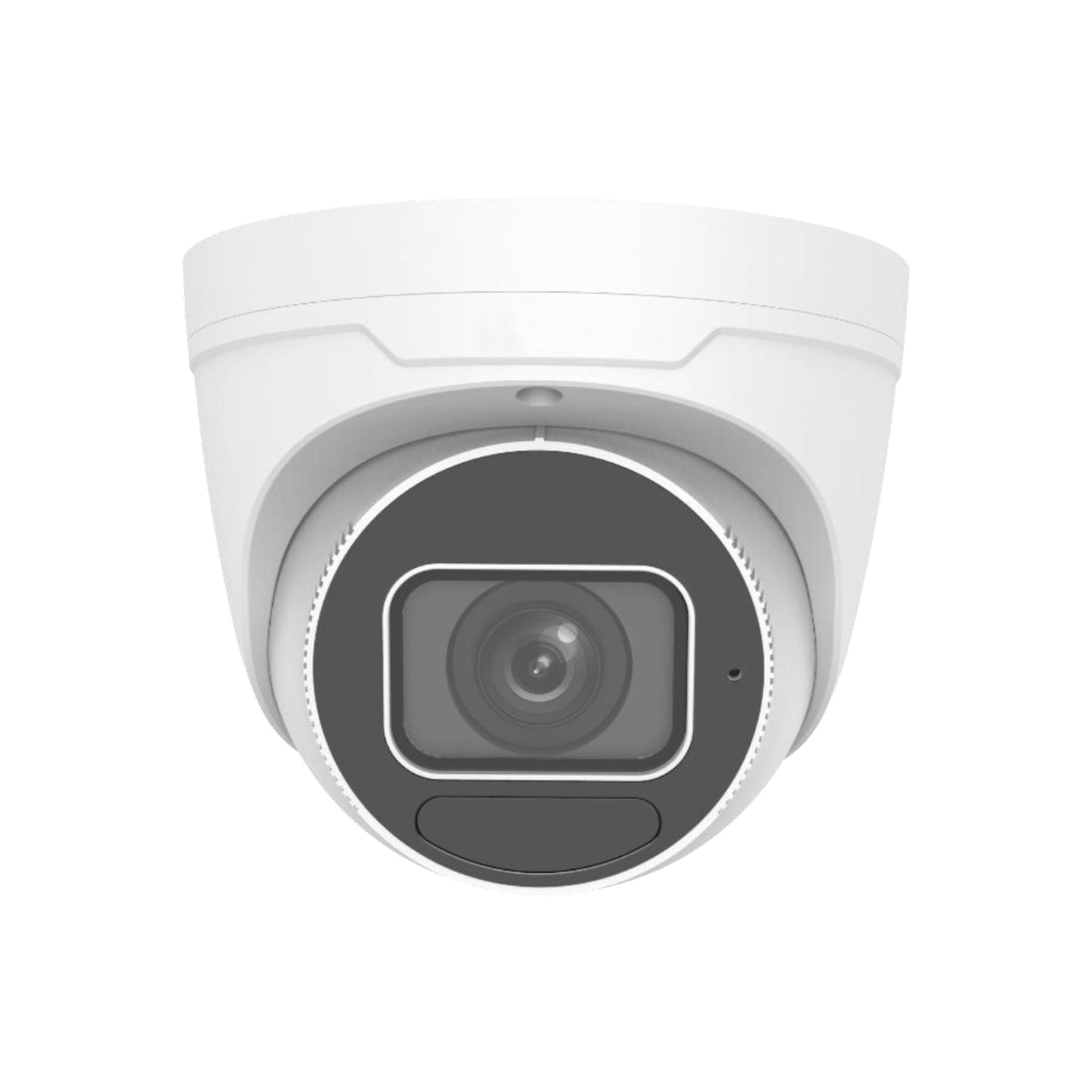

4MP HD NDAA Compliant IR VF Eyeball Network Camera with a 2.8 ~ 12mm lens (U1-4MP-TZ1H)
Translation missing: en.products.product.sku: SKU# 3456NB
Order within to ship- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
You may want these accessories for this product
UNV 3-inch Fixed Dome Mount (TR-WM...
UNV Wall Mount W/ Junction Box for...
UNV Junction Box for Fixed Lens & ...
UNV Pole Mount Adapter (TR-UP06-IN)
UNV Fixed Dome Indoor Pendant Moun...
UNV 400mm Extender for PTZ Dome Pe...
UNV Waterproof Cable Joint (TR-A01...
U1-4MP-TZ1G
IP Security Camera
4MP
HD resolution
2.8-12mm
Motorized Varifocal Lens
IP67
Weatherproof Rating
Up to 130ft
Night Vision IR Range
3 Year Warranty
Warranty Information
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
4MP HD RESOLUTION
The U1-4MP-TZ1G captures video up to a resolution of 4MP @ 25 FPS, which is 2688 x 1520 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.
2.8-12mm Motorized Varifocal Lens
The U1-4MP-TZ1G has a Motorized Varifocal Lens, ranging from
106.94°~35.49°. This means you can easily and quickly adjust the zoom
to your liking directly from the camera's interface.
The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer
details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle
field of view.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The U1-4MP-TZ1G comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
Up to 130ft NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 130ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview NB
The U1-4MP-TZ1G is part of the Uniview NB line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | Turret | |
| Resolution | 4MP | |
| Max Resolution | 2688 x 1520 | |
| Frames Per Second | 25 FPS | |
| Image Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |
| Lens Type | Motorized Varifocal Lens | |
| Focal Length | 2.8-12mm | |
| Field of View | 106.94°~35.49° | |
| Illumination | Infrared | |
| IR Range | Up to 130ft | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Max Video Bitrate | 16Mbps | |
| Weatherproof Rating | IP67 | |
| Audio | Built-in Microphone | |
| Onvif Compatible | Yes | |
| Onboard Storage | Up to 256GB | |
| Power Supply | DC12V | |
| Power Consumption | Max 8.0W | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Weight | 0.67kg (1.48lb) |
