Uniview by Uniview

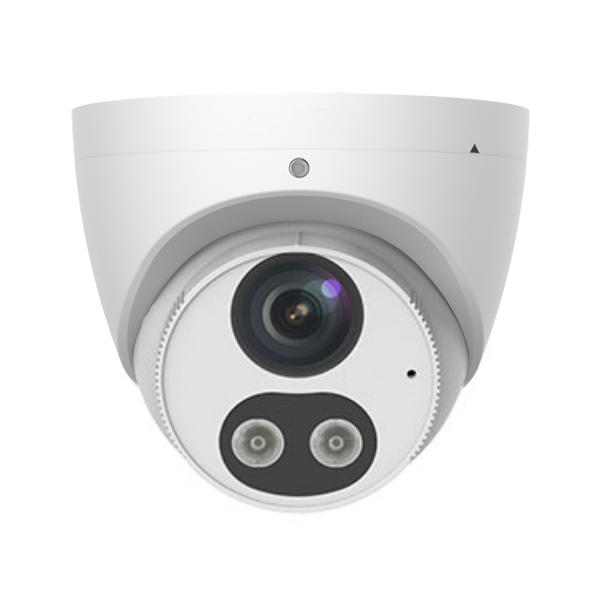

4MP Active Deterrence NDAA-Compliant Weatherproof Turret IP Security Camera with Smart Intrusion Prevention, 24/7 Color Mode, and a 2.8mm Fixed Lens (U1-4MP-TGT1)

Translation missing: en.products.product.sku: SKU# 3452NB

Order within to ship
Regular price
$419.00
Login for better price
  • High quality image with 4MP, 1/2.7"CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply

Choose a version

Choose between the Retail and Blank version of this product.

  • UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
  • UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.

You may want these accessories for this product

UNV Wall Mount for Dome Security C...

$25.00

UNV Wall Mount W/ Junction Box for...

$40.00

UNV Junction Box for Fixed Lens Do...

$17.00

UNV Fixed Dome Indoor Incline Moun...

$4.00

UNV Pole Mount Adapter (TR-UP06-IN)

$17.00

UNV Fixed Dome Indoor Pendant Moun...

$15.00

UNV 400mm Extender for PTZ Dome Pe...

$17.00

UNV Waterproof Cable Joint (TR-A01...

$6.00

U1-4MP-TGT1

IP Security Camera

4MP

HD resolution

2.8mm

Fixed Lens

IP67

Weatherproof Rating

Up to 100ft

Night Vision IR Range

3 Year Warranty

Warranty Information

Characteristics

This powerful camera from Uniview's Tri-Guard series is truly unbeatable! It combines Uniview's impressive Smart Intrusion Prevention, ColorHunter technology, and Active Deterrence capabilities to create a camera that's a triple threat! It combines the best of their technology to give you the clearest picture possible, even at night, as well as actively deterring intruders with lights and alarms. It also filters information for you, making sure it doesn't get set off by false alarms. This feature packed camera is a must have.

  • High quality image with 4MP, 1/2.7"CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
    Characteristics

    This powerful camera from Uniview's Tri-Guard series is truly unbeatable! It combines Uniview's impressive Smart Intrusion Prevention, ColorHunter technology, and Active Deterrence capabilities to create a camera that's a triple threat! It combines the best of their technology to give you the clearest picture possible, even at night, as well as actively deterring intruders with lights and alarms. It also filters information for you, making sure it doesn't get set off by false alarms. This feature packed camera is a must have.

    • High quality image with 4MP, 1/2.7"CMOS sensor
    • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
    • Ultra 265, H.265, H.264, MJPEG
    • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
    • 120dB true WDR technology enables clear image in strong light scene
    • Support 9:16 Corridor Mode
    • Built-in Mic and Speaker
    • Smart IR, up to 30m (98ft) IR distance
    • Supports 256 G Micro SD card
    • IP67 protection
    • Support PoE power supply

      4MP HD RESOLUTION

      The U1-4MP-TGT1 captures video up to a resolution of 4MP @ 30 FPS, which is 2688 x 1520 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.

      2.8mm Fixed Lens

      The U1-4MP-TGT1 has a 2.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

      The U1-4MP-TGT1 has a horizontal field of view of 101.1°.

      2-Way Audio

      The U1-4MP-TGT1 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!

      NDAA Compliant

      This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

      IP67 Weatherproof rating

      This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

      Rest assured that when you install your camera outside, it will have no problem braving the toughest of storms.

      Up to 100ft NIGHT VISION IR RANGE

      When the sun goes down or the lights go out, this camera switches on it's own onboard infrared LED lights. Theses lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers Up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

      Remote access Uniview NB

      The U1-4MP-TGT1 is a part of our VIVOTEK brandable line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.


      Plug & play

      If you're creating a new system out of our VIVOTEK brandable cameras, set up is insanely easy with our VIVOTEK line of POE NVRs. Simply plug the camera into the back of the VIVOTEK NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as Vast 2 and VIVOcloud.

      ONVIF Compatibility

      If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


      SPECIFICATION Download PDF
      Camera Type IP
      Form Factor Turret
      Resolution 4MP
      Max Resolution 2688 x 1520
      Frames Per Second 30 FPS
      Image Sensor 1/2.7", 4.0 megapixel, progressive scan, CMOS
      Lens Type Fixed Lens
      Focal Length 2.8mm
      Field of View 101.1°
      Illumination Infrared
      IR Range Up to 100ft
      Video Compression Ultra H.265|H.265|H.264
      Max Video Bitrate 16Mbps
      Weatherproof Rating IP67
      Audio 2-Way Audio
      Onvif Compatible No
      Intelligent Events Face Detection|People Counting|Crowd Density Monitoring
      Onboard Storage Up to 256GB
      Power Supply DC12V|POE
      Power Consumption Max 7.5W
      Operating Temperature -22°F ~ 131°F (-30°C ~ 55°C)
      Weight 0.948lb
      Video Compression Ultra H.265|H.265|H.264
      Onvif Compatible Yes
      Power Supply DC12V|POE
      Power Consumption Max 7.5W
      Operating Temperature -22°F ~ 131°F (-30°C ~ 55°C)
      Weight 0.948lb
      SOFTWARE
      Name Description Version Download
      EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1130.3.12.0 DownloadDownload
      EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. Versionv1122.2.6.0 DownloadDownload
      EZ Player Media player for local recordings. Versionv1111.1.3.0 DownloadDownload
      Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Version DownloadDownload
      EZ Station Unified management for Uniview IP Cameras and NVRs. Versionv1113.3.10.1 DownloadDownload
      MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Version DownloadDownload
