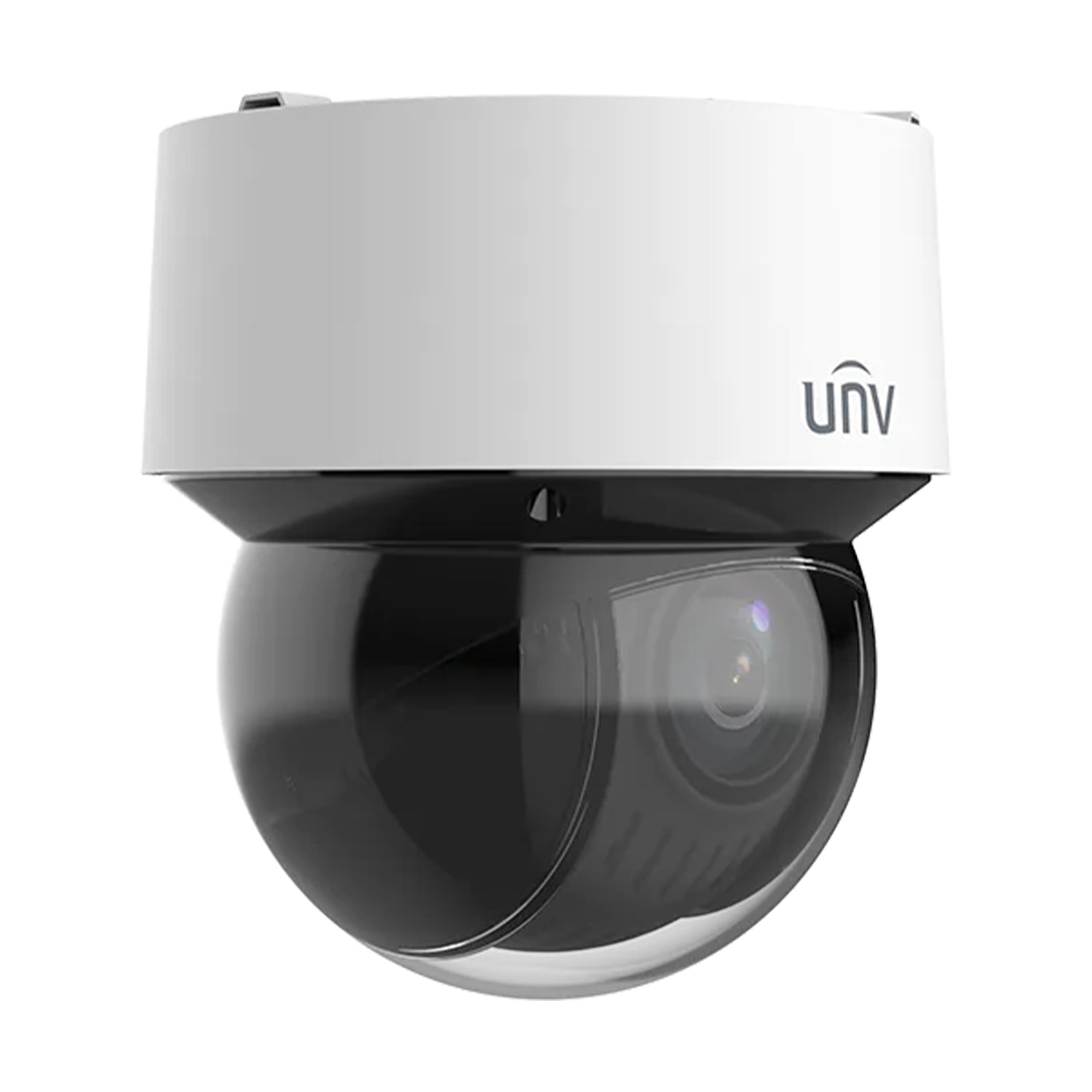

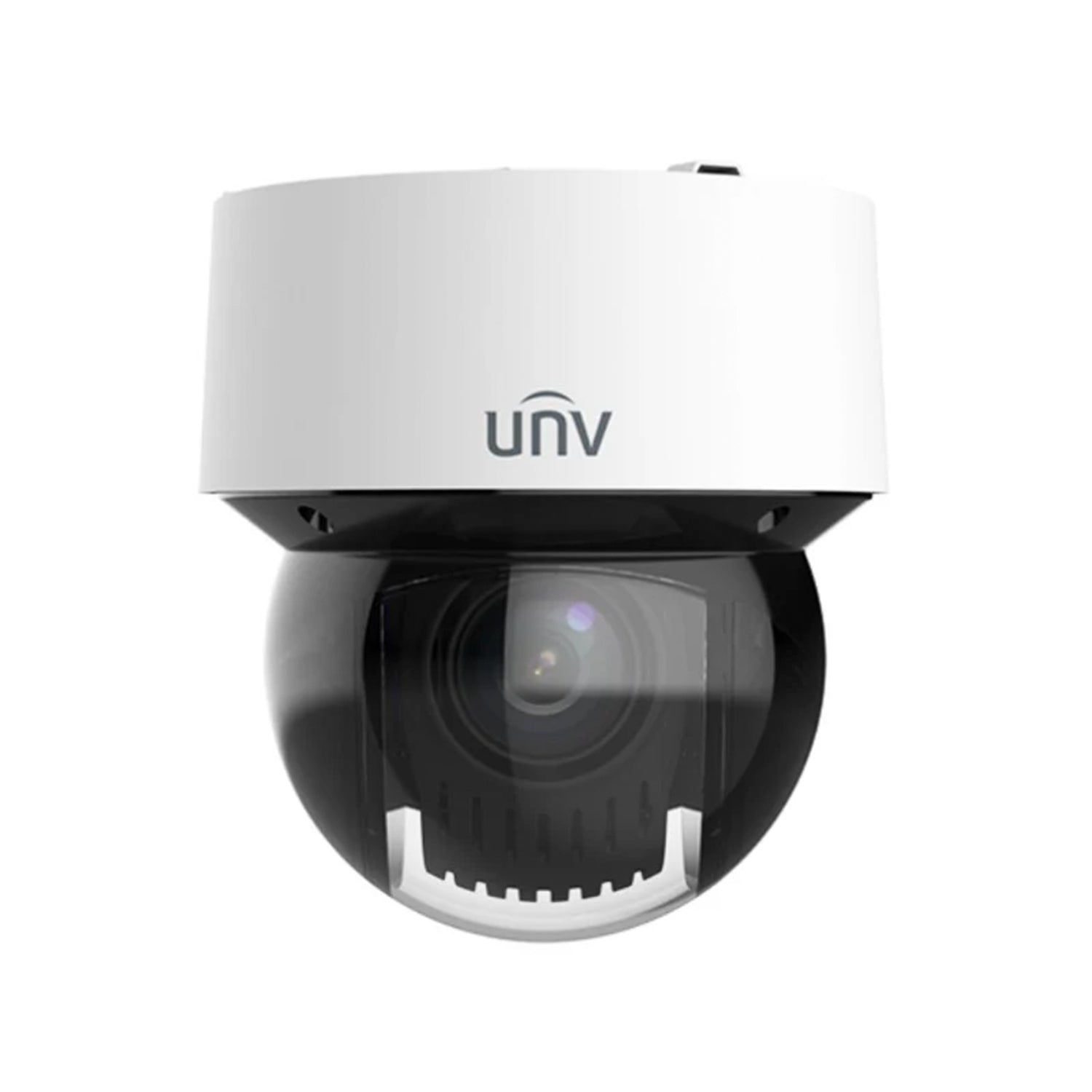

4MP 10X LightHunter Weatherproof PTZ Dome IP Security Camera with a 5.5-55mm Motorized Lens (IPC6434LR-X10-VG1)
Translation missing: en.products.product.sku: SKU# 3886
Order within to ship- Regular price
- $939.00
Couldn't load pickup availability
You may want these accessories for this product
UNV 500mm Extender for PTZ Dome Pe...
UNV Wall Mount for PTZ Dome Securi...
UNV PTZ Dome Gooseneck Bracket Mou...
UNV Junction Box for PTZ Dome Seri...
IPC6434LR-X10-VG1
IP Security Camera
4MP
HD resolution
5.5mm ~ 55mm
Motorized Varifocal Lens
IP67
Weatherproof Rating
328ft
Night Vision IR Range
3 year Warranty
Warranty Information
- High quality image with 4MP,1/2.9" CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Dual streams
- 10X optical zoom
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 100m (328ft) IR distance
- DC12V±10% or PoE+ (IEEE 802.3at)
- Alarm 2 in and 1 out, audio 1 in and 1 out
- IP66 ingress protection
- IK10 vandal resistant
- High quality image with 4MP,1/2.9" CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Dual streams
- 10X optical zoom
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 100m (328ft) IR distance
- DC12V±10% or PoE+ (IEEE 802.3at)
- Alarm 2 in and 1 out, audio 1 in and 1 out
- IP66 ingress protection
- IK10 vandal resistant
4MP HD RESOLUTION
The IPC6434LR-X10-VG1 captures video up to a resolution of 4MP @ 30FPS, which is 2688 x 1520 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 4MP, your going to get a crisper, cleaner, and more detailed image.
5.5mm ~ 55mm Motorized Varifocal Lens
The IPC6434LR-X10-VG1 has a Motorized Varifocal Lens, ranging from
50.85°~3.47°. This means you can easily and quickly adjust the zoom
to your liking directly from the camera's interface.
The Motorized Varifocal Lens gives you more control over your image. Optically zoom in to view finer
details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider angle
field of view.
2-Way Audio Support
This built-in speaker allows for one-way communication in real time with anyone in the camera's vicinity. Use this feature to deter crime, draw attention to your surveillance, or simply broadcast a message.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP67 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected
from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to
30 minutes.
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
IK10 Vandalproof Rating
The IPC6434LR-X10-VG1 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.
328ft NIGHT VISION RANGE
When the sun goes down or the lights go out, this camera has the ability to see 328ft in the dark allowing the camera to continue functioning and recording video 24/7, day or night. You're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | Download PDF | |
|---|---|---|
| Camera Type | IP | |
| Form Factor | PTZ | |
| Resolution | 4MP | |
| Max Resolution | 2688 x 1520 | |
| Frames Per Second | 30FPS | |
| Image Sensor | 1/2.9" CMOS | |
| Lens Type | Motorized Varifocal Lens | |
| Focal Length | 5.5mm ~ 55mm | |
| Field of View | 50.85°~3.47° | |
| Illumination | IR | |
| IR Range | 328ft | |
| Max Video Bitrate | 128 Kbps~16 Mbps | |
| Weatherproof Rating | IP67 | |
| Vandal proof Rating | IK10 | |
| Audio | 2-Way Audio Support | |
| Onvif Compatible | Yes | |
| Onboard Storage | Up to 512GB | |
| Power Supply | DC12V(±10%,3A), PoE+(IEEE 802.3at) | |
| Power Consumption | Max 23W | |
| Operating Temperature | -40°F~149°F | |
| Weight | 5.07lbs |
