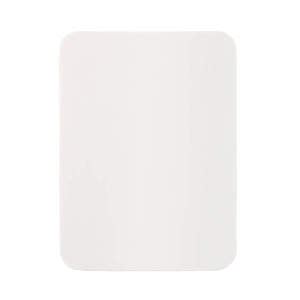

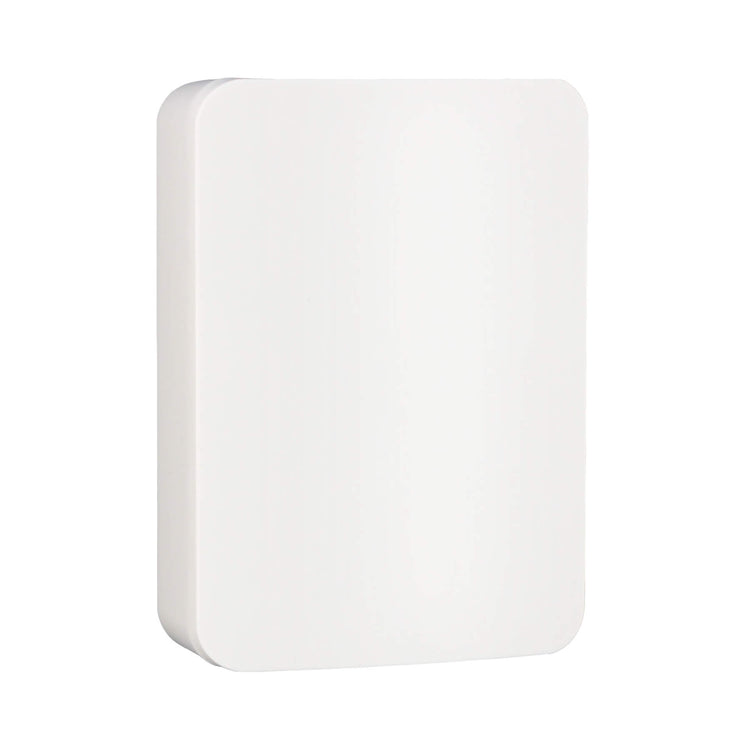

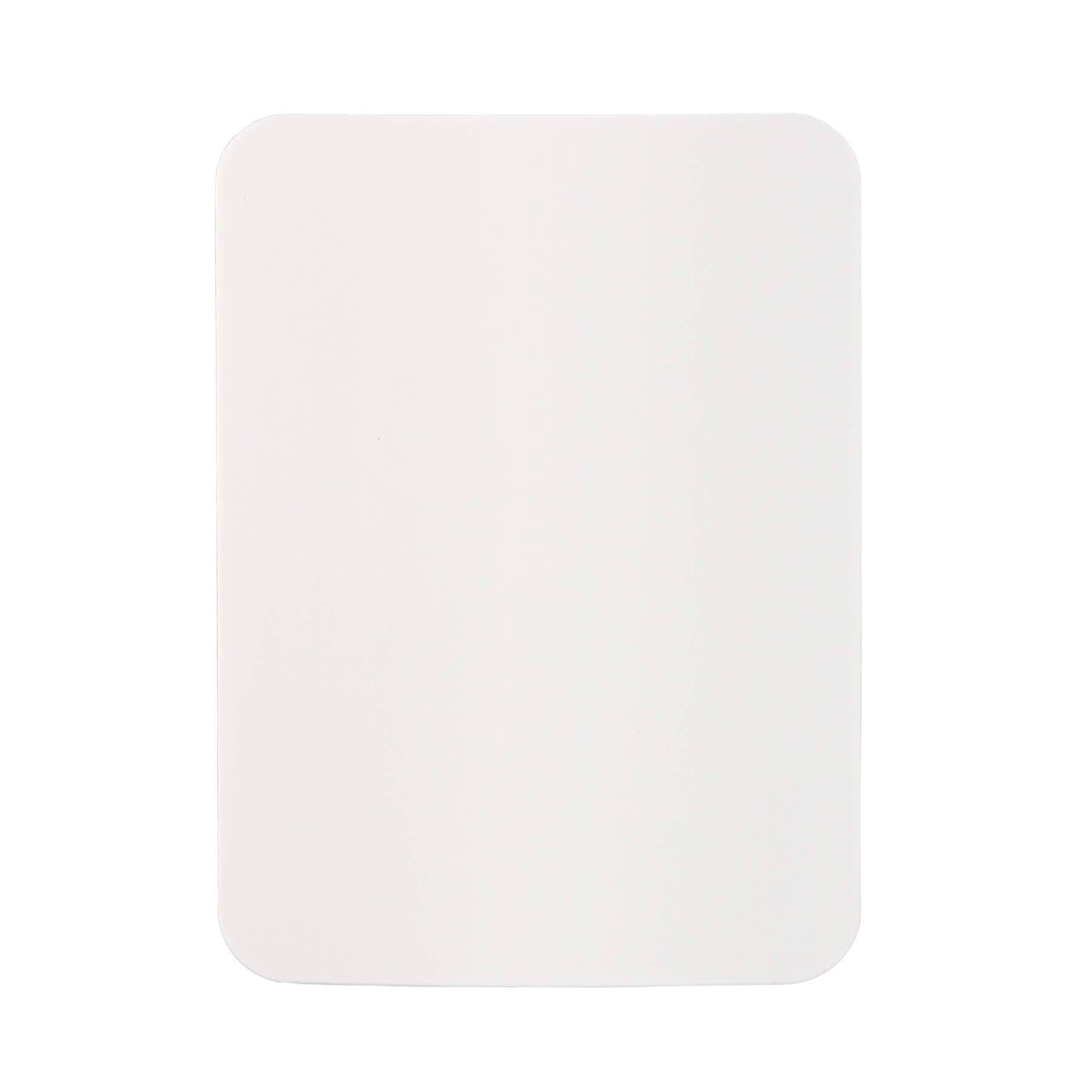

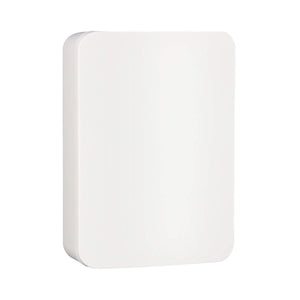

2GIG 345S Super Switch Wireless Hardwire Takeover Module (2GIG-TAKE100-345)

2GIG Wireless Hardwire Takeover Module

The 2GIG Wireless Hardwire Takeover Module allows installers to easily convert existing 12-volt hardwired alarm systems into 2GIG wireless technology. It takes over traditional wired zones and transmits them wirelessly to compatible 2GIG panels, helping modernize legacy systems without replacing sensors or re-running wire.

Each module converts up to 8 hardwired zones and supports common wired devices like motion sensors and glass break sensors. Designed for indoor use only, this module is not intended for fire or carbon monoxide zones. Flexible power options allow it to be powered by an existing alarm panel, including use of the panel’s backup battery.

• Converts up to 8 hardwired zones per module

• Additional modules can be added for expanded coverage

• Supports wired motion and glass break sensors up to 500 mA

• 2GIG 345 MHz compatible

• Switchable encryption via onboard switch

• Can be powered by existing alarm panel and backup battery

• Built-in charging circuit with LED status indicators

• Indoor use only (not for fire or CO zones)

Specifications

• Operating frequency: 345 MHz

• Supported zones: 8 wired zones, 1 self-monitor zone

• Input voltage: 9–16 VDC or 16.5–20 VAC

• Backup battery support: Up to 12 VDC, 7Ah

• Aux output: 10–16 VDC, 500 mA

• Dimensions: 3.53″ × 2.56″ × 1.22″ (89.7 × 65.0 × 31.0 mm)

• Weight: 3.21 oz (90.9 g)

• Operating temperature: 32°–120° F (0°–49° C)

• Humidity: 5–95% non-condensing

• Certifications: ETL, FCC, Industry Canada
