2GIG 345S Series Wireless Alarm Repeater, 345 MHz (2GIG-RPTR100-345)

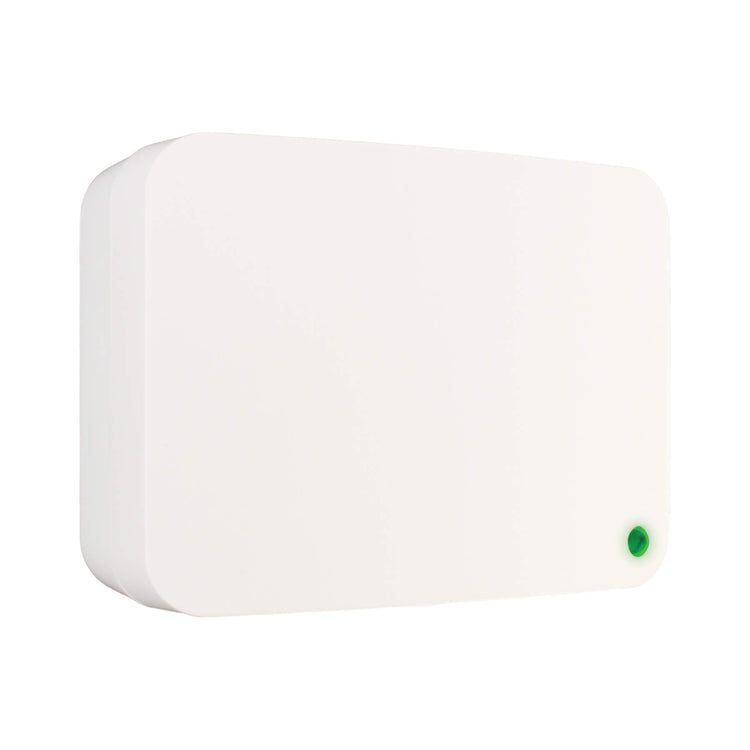

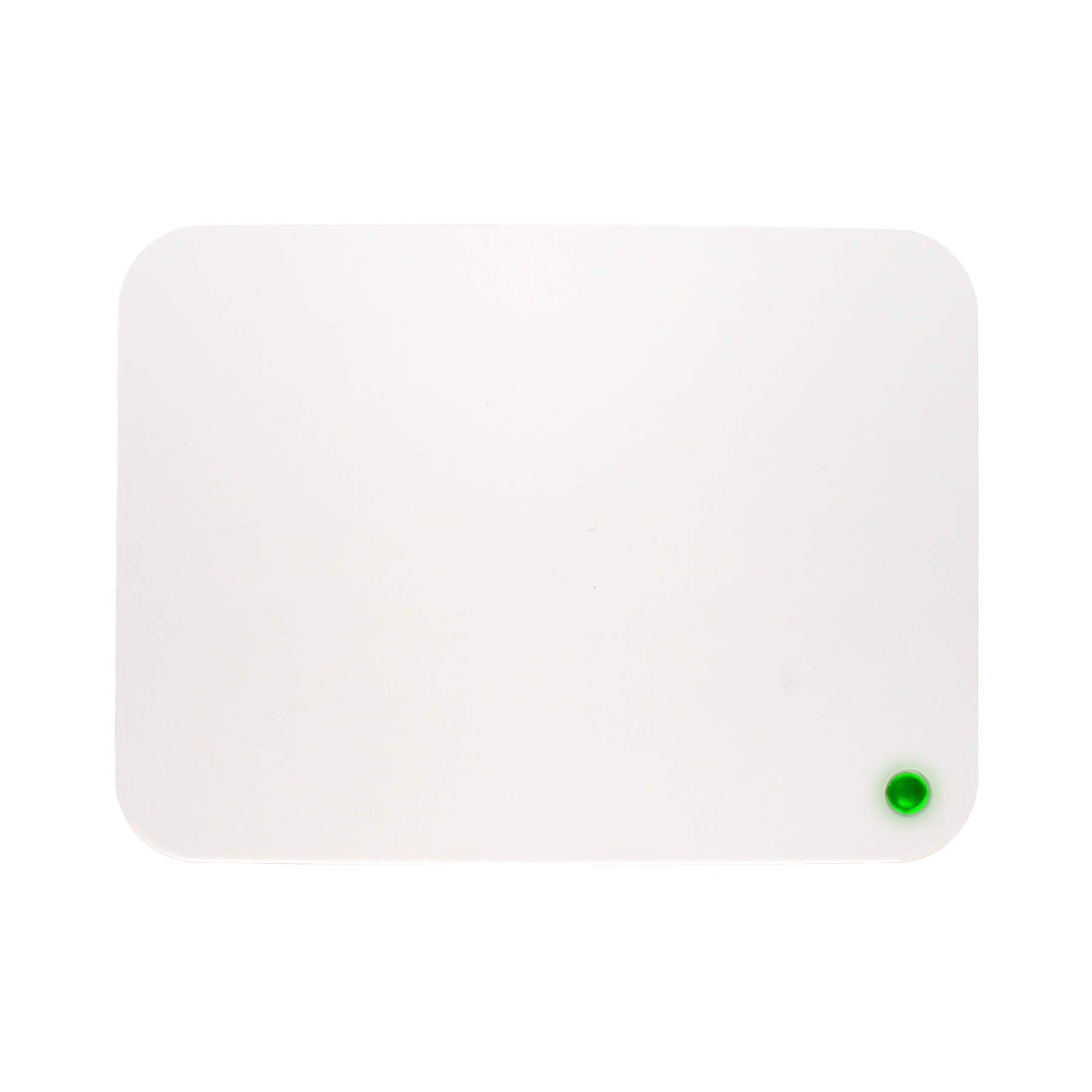

2GIG-RPTR100-345 Wireless Repeater

The 2GIG-RPTR100-345 is a 345 MHz wireless repeater designed to extend the communication range of 2GIG security systems, making it ideal for larger homes and commercial installations. It improves system reliability by allowing flexible sensor placement where direct panel communication may be limited.

This plug-and-play repeater supports both 2GIG and Honeywell 345 MHz sensors and repeats encrypted and non-encrypted signals out of the box. An internal backup battery keeps the repeater operating during power outages, helping maintain system coverage.

• Extends wireless range of 2GIG security panels

• Repeats 2GIG and Honeywell 345 MHz sensor signals

• Supports encrypted and non-encrypted sensors

• Plug-and-play operation

• Internal battery backup

• Wall-mounted installation

Specifications

• Overall size: 102 × 76 × 46 mm (4.0” × 3.0” × 1.8”)

• Weight (without battery): 125 g (4.4 oz.)

• Operating frequency: 345 MHz

• Operating temperature: -10° C to 55° C (14° F to 131° F)

• Relative humidity: 5–85% non-condensing

• Power type: AC adapter with internal battery backup

• AC input voltage: 100–240 VAC, 50/60 Hz

• AC output voltage: 14 VDC
