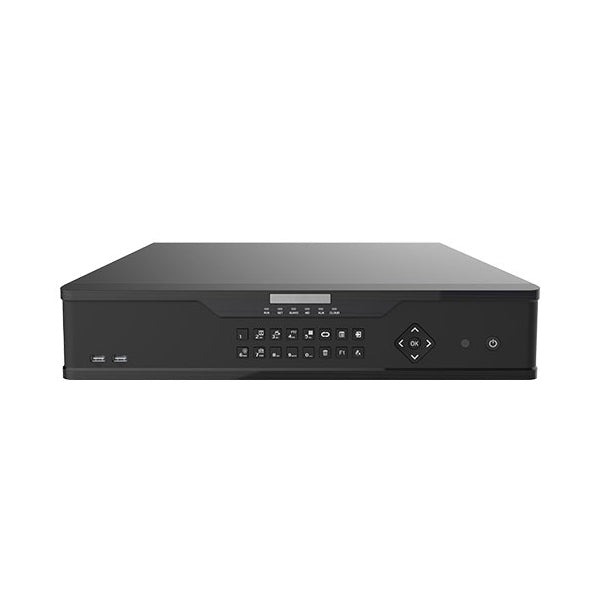

12MP 32-Channel NDAA-Compliant IP Network Video Recorder with 8 SATA Hard Drive Bays and RAID Data Protection (U-NVR-32X)
Translation missing: en.products.product.sku: SKU# 3328NB
Order within to ship- Regular price
- $3,409.00
- Sale price
- $3,409.00
- Regular price
-
Couldn't load pickup availability
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Choose a version
Choose between the Retail and Blank version of this product.
- UNV Retail versions come with the standard Uniview Product that has a Uniview Logo and Uniview Color Box.
- UNV Blank versions are Uniview product without any Uniview Logos on the product or the box. Only choose this option if you are one of our branding program customers.
You may want these accessories for this product
19" Metal Server Rack Shelf
$40.00
Customers who bought this product also bought
RJ45 + BNC Cable Connecti...
$12.99
Related Articles
U-NVR-32X
Recorder
12MP
Up to 12MP Resolution
8 SATA HDD
Up to 10TB each
3 Year Warranty
Warranty Information
Characteristics
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Characteristics
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Video recorders are the heart of your cctv system. With the U-NVR-32X you can be sure that your security cameras are in good hands. This IP video recorder is perfect for
larger installations with up to 32 security cameras.
The U-NVR-32X is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Please note, this recorder does not have an integrated PoE switch. Click here to shop external PoE switches.
The U-NVR-32X is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Please note, this recorder does not have an integrated PoE switch. Click here to shop external PoE switches.
Recording Schedules
If you want 24/7 video recording, the U-NVR-32X NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 8 Hard Drive/s, Up to 10TB each.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
Local & Remote Viewing
This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.
| SPECIFICATION | ||
|---|---|---|
| IP Channels | 32ch | |
| Max Resolution | 12MP | |
| Max Incoming Bandwidth | 384Mbps | |
| Max Outgoing Bandwidth | 384Mbps | |
| Video Compression | Ultra H.265|H.265|H.264 | |
| Hard Drive Slots | 8 | |
| Hard Drive Capacity | Up to 10TB each | |
| Synchronus Playback | 16ch | |
| Audio I/O | 1ch / 1ch | |
| Alarm I/O | 16ch / 4ch | |
| Onvif Compatible | Yes | |
| Power Consumption | ≤ 25 W (without HDD) | |
| Operating Temperature | +14°F~+131°F | |
| Dimensions | 17.4" × 16.8"× 3.5" | |
| Weight | 12.57lbs |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Version v1130.3.12.1  |
DownloadDownload |
| Name Guard Tools | Tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | Version v1103 |
DownloadDownload |
| Name Guard Player | Media player for local recordings. | Version v1111.1.1.0 |
DownloadDownload |
| Name Guard Station | Unified management for IP Cameras and NVRs. | Versionv1113.3.10.1  < |
DownloadDownload |
